3-17
OPERATION

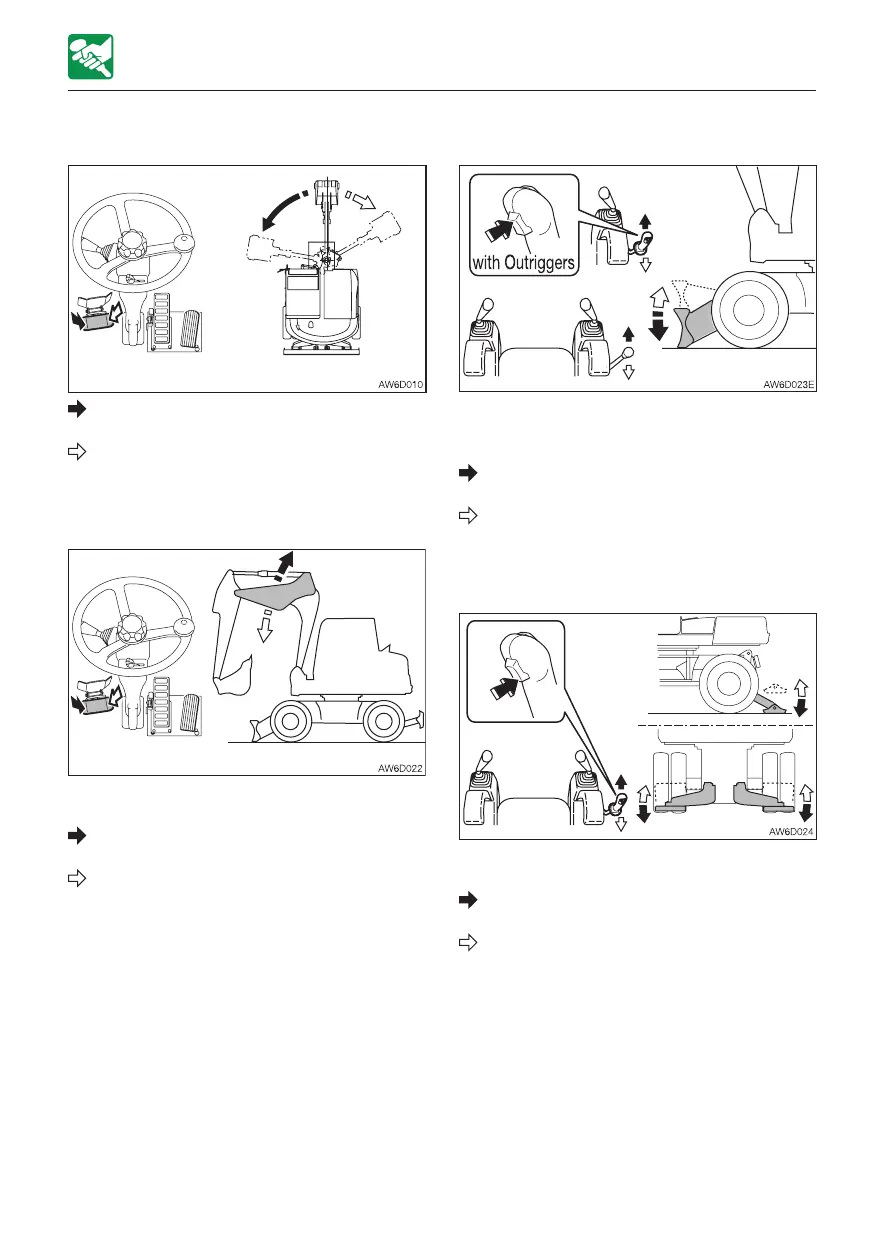

OPERATING THE MACHINE
Boom swing left:
Step on the left side of the pedal.
Boom swing right:
Step on the right side of the pedal.
Operating the second boom (If equipped)
Press the second boom side of the swing/
second boom select switch.
Second boom raise:
Step on the left side of the pedal.
Second boom lower:
Step on the right side of the pedal.
For machines with outriggers, select the
dozer blade operation with the outrigger
switch.
Dozer blade lower:
Tilt the blade lever forward.
Dozer blade raise:
Tilt the blade lever backward.
Operating the Outrigger (If equipped)
Operating the dozer blade
Select the outrigger operation with the
outrigger switch.
Outrigger lower:
Tilt the blade lever forward.
Outrigger raise:
Tilt the blade lever backward.
· Outrigger switch L:
Operating only the left side outrigger
· Outrigger switch R:
Operating only the right side outrigger
Operating the boom swing
