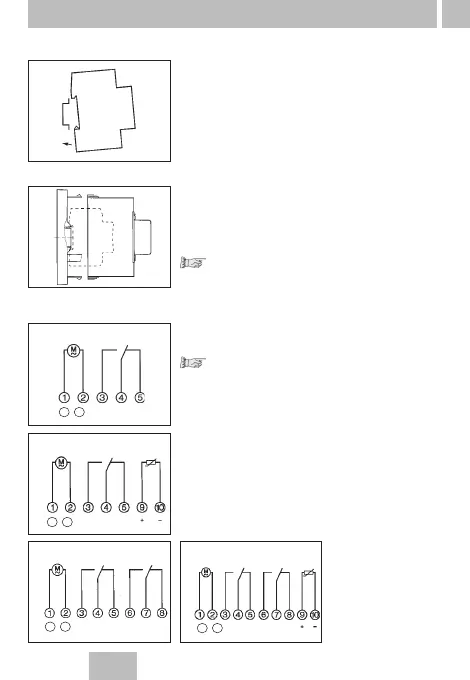

2. Assembly, putting into operation, connection
3
GB
3.1 Assembly
Fit the time switch
• on a DIN rail
•
optional wall surface-mounting
Surface-mounting set for 2 and 3 module
spacings Article No. 03.53.0083.2
3.2 Putting into operation
The time and date are set at the factory.
The time switch is in Energy-saving mode.
Only the colon flashes.
Press any key:
• The time switch is activated
• It displays the time (day of the week)
3.3 Connection
See information on the unit!
Press any key to activated the timeswitch
• The time and day is displayed
Note:
If no key is pressed the time switch is auto-
matically activated after approx. 1 - 2 minutes.
Safety instruction:
•
When operating the clock safety low voltage,
only safety low voltage may be connected.
•
When operating the clock with function low
voltage, mains voltage (230 ~) or function low
voltage may be connected. The connection of
safety low voltage is not admissible in this case.
AC
DC
+
–
AC
DC
+
–
AC
DC
+
–
AC
DC
+
–
CH 1
CH 1
CH 1 CH 2
CH 1 CH 2
