10
English
○ If the cutting head does not feed cutting line
properly, check that the nylon line and all
components are properly installed. Contact your
Tanaka dealer if you need assistance.

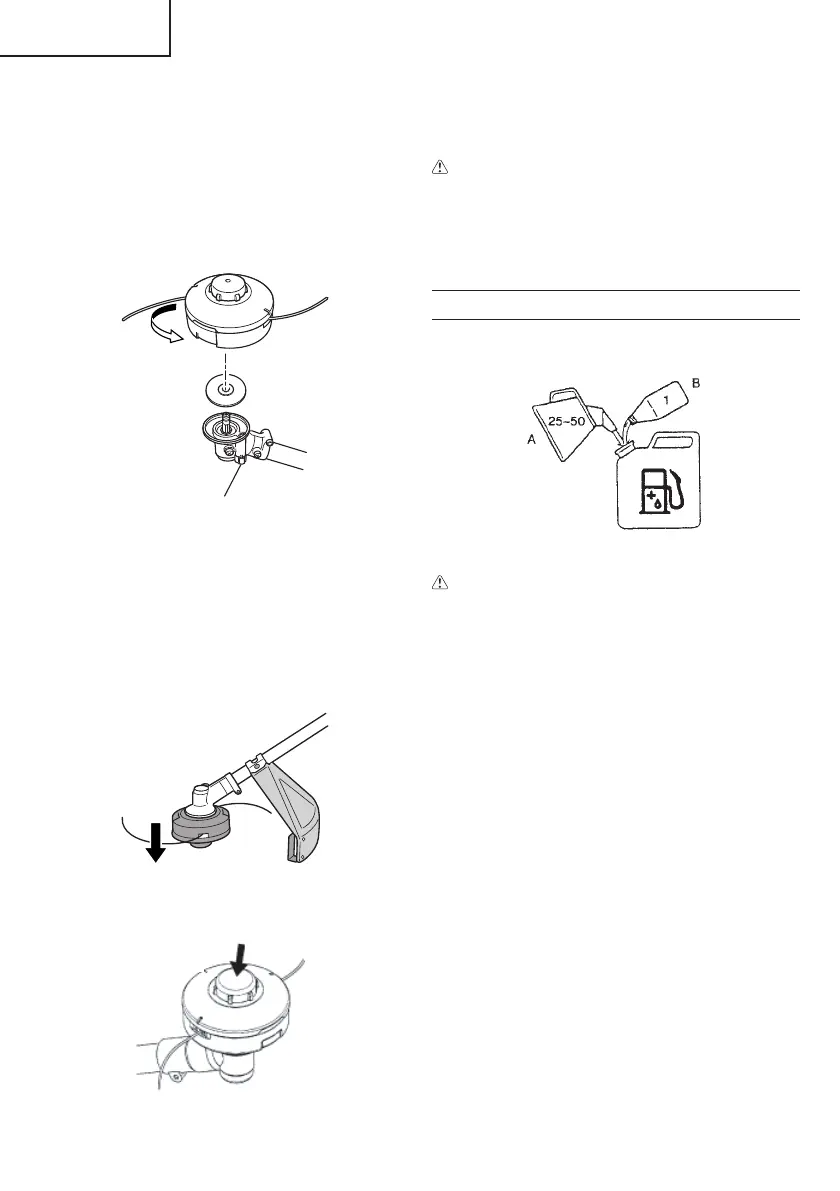

3. Installation (Fig. 9)
○ Install cutting head on gear case of grass
trimmers/brush cutters. The mounting nut is
left-hand-threaded. Turn clockwise to loosen/
counterclockwise to tighten.
15
Fig. 9
NOTE
○ Press the stopper pin (15) of the gear case in
order to lock the cutter holder.
4. Adjusting line length
○ Set the engine speed as low as possible and tap
the head on the ground. The nylon line will be
drawn out about 1-3/16˝ (3 cm) with each tap.
(Fig. 10)
Fig. 10
Also, you can extend the nylon line by hand but
the engine must be completely stopped. (Fig. 11)
Fig. 11
○ Adjust the nylon line to the proper length
of 4-11/32˝–5-1/2˝ (11–14 cm) before each
operation.
WARNING
For Tanaka heads, use only fl exible,
non-metallic line recommended by the
manufacturer. Never use wire or wire ropes.
They can break off and become a dangerous
projectile.
OPERATING PROCEDURES
Fuel (Fig. 12)
Fig. 12
WARNING
● The trimmer is equipped with a two-stroke
engine. Always run the engine on fuel, which
is mixed with oil.
Provide good ventilation, when fueling or
handling fuel.
● Fuel contains highly fl ammable and it is
possible to get the serious personal injury
when inhaling or spilling on your body.
Always pay attention when handling fuel.
Always have good ventilation when handling
fuel inside building.
Fuel
○ Always use branded 89 octane unleaded
gasoline.
○ Use genuine two-cycle oil or use a mix between
25:1 to 50:1, please consult the oil bottle for the
ratio or Tanaka dealer.
○ Only for the state of California at 50:1.
○ If genuine oil is not available, use an anti-oxidant
added quality oil expressly labeled for air-cooled
2-cycle engine use (JASO FC GRADE OIL or
ISO EGC GRADE). Do not use BIA or TCW
(2-stroke water-cooling type) mixed oil.
○ Never use multi-grade oil (10 W/30) or waste oil.
○ Always mix fuel and oil in a separate clean
container.
