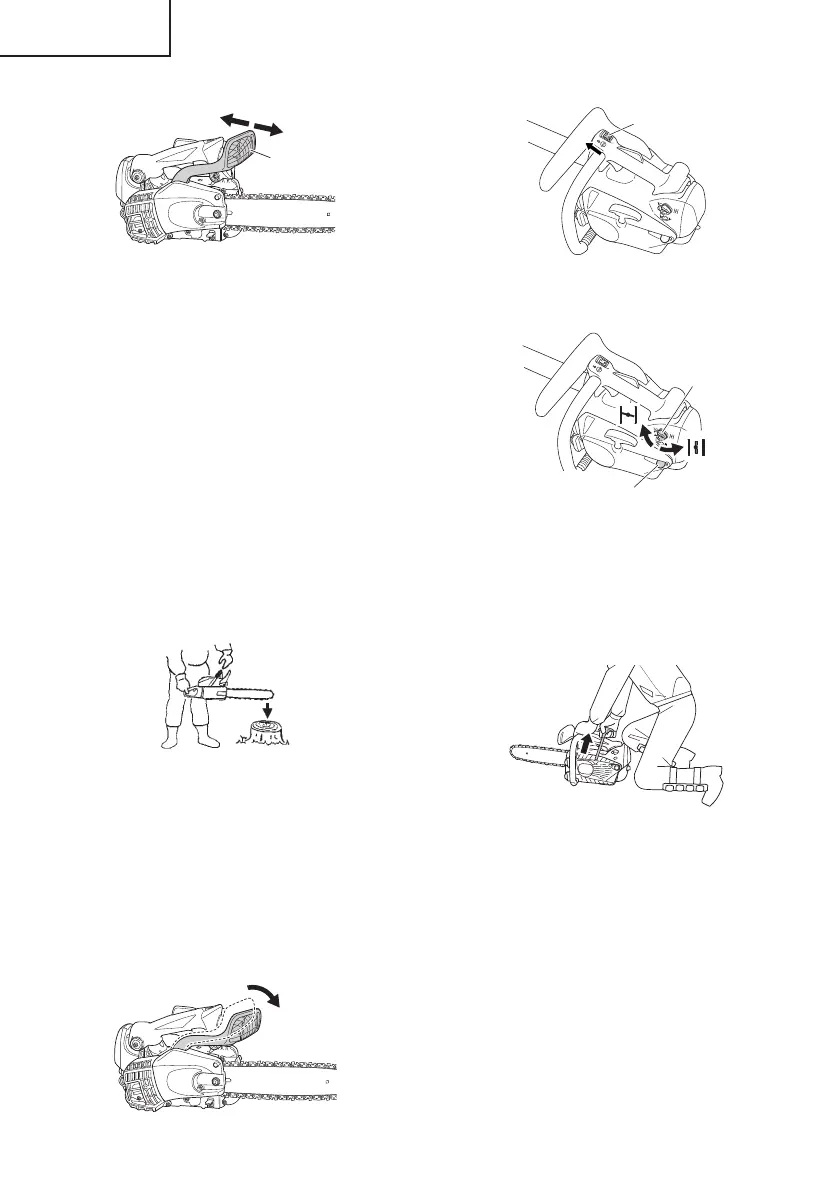

Chain brake operation (Fig. 10)
15
Fig. 10
Chain brake (15), is designed to activate in an emergency
such as kick-back action. Please check to verify that it
works properly before use.
Application of brake is made by moving the front hand
guard towards the bar. During the chain brake operation,
even if the throttle trigger is pulled, the engine speed
does not increase and the chain does not turn. To
release the brake, pull up the front hand guard.
If the engine keeps rotating at high speed with the brake
engaged, the clutch will overheat causing trouble.
When the brake engages during operation, immediately
release the throttle trigger to slow down the engine.
How to confi rm:
1) Turn off the engine.
2) Holding the chain saw horizontally, release your
hand from the front handle, hit the tip of the guide
bar to a stump or a piece of wood, and confi rm brake
operation. Operating level varies by bar size.
Fig. 11
In case the brake is not eff ective, ask our dealer for
inspection and repairs.
Starting the cold engine (Fig. 12-17)
CAUTION
○
Follow the instructions in this manual for starting the
engine.
○ Before starting, make sure that the bar/chain does
not touch anything.
1. Make sure chain brake is engaged. (Fig. 12)
Fig. 12
2. Set ignition switch (16) to ON position. (Fig. 13)
16
Fig. 13
3. Push priming pump (17) about ten times so that fuel
fl ows through priming pump into carburetor.(Fig. 14)
18
17
Fig. 14
4. Turn the choke lever (18) to choked position (Fig. 14).
This will automatically lock the throttle in starting
position.
5. Pull recoil starter briskly, taking care to keep the
handle in your grasp and not allowing it to snap back.
(Fig. 15)
Fig. 15
6. When you hear fi rst ignition, return the choke lever
to run position. (Fig. 14)
7. Pull recoil starter briskly again in the aforementioned
manner. (Fig. 15)
NOTE
If engine does not start, repeat procedures from 4
to 7.
8. As soon as engine start, pull throttle trigger full once
and release immediately. (Fig. 16)
Then half-throttle is disengaged.
9. Make sure chain brake is disengaged. (Fig. 17)
Allow the engine about 2-3 minutes to warm up
before subjecting it to any load.
Do not run the engine at high speed without the load
to shorten the longevity of the engine.
