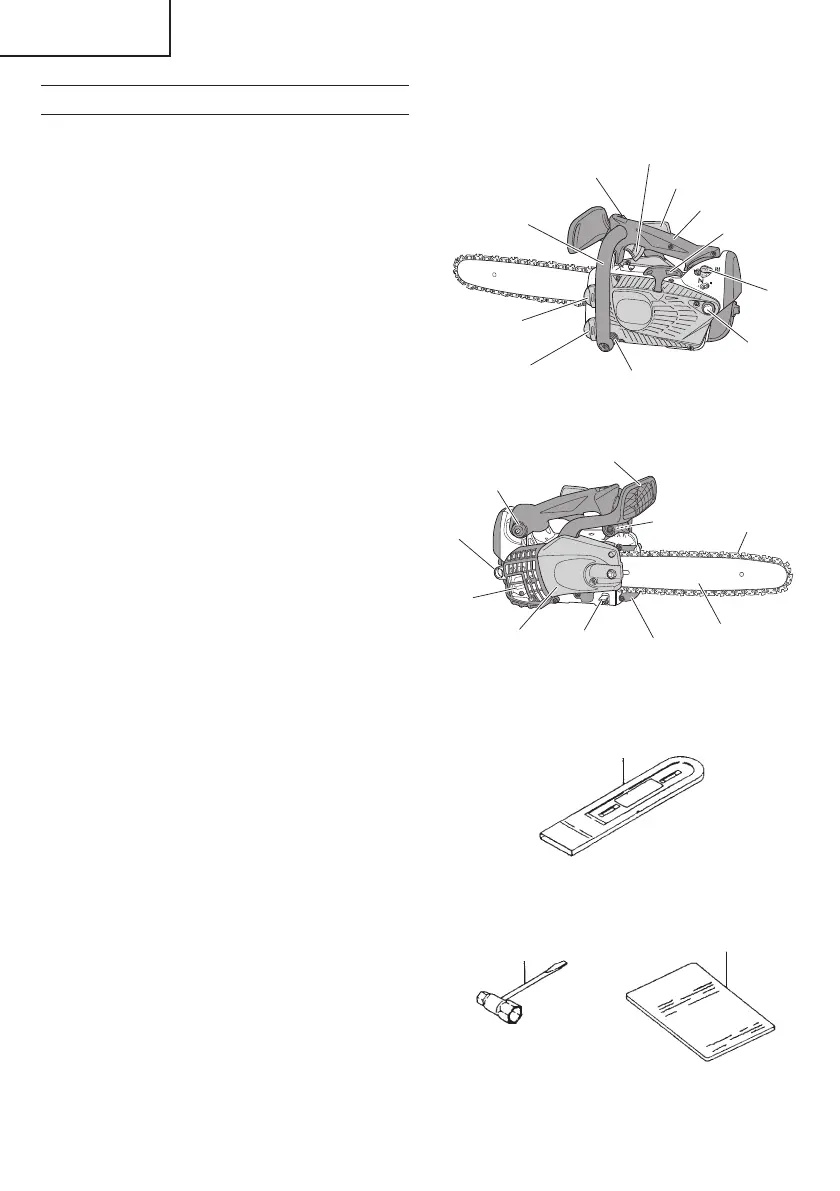

WHAT IS WHAT?
1. Throttle trigger: Device activated by the operatorʼs
fi nger, for controlling the engine speed.
2. Throttle trigger lockout: Device that prevents the
accidental operation of the throttle trigger until
manually released.
3. Ignition switch: Device for allowing the engine to be
started or stopped.
4. Oil tank cap: For closing the oil tank.
5. Recoil starter: Pull handle to start the engine.
6. Front handle: Support handle located at or towards
the front of the engine housing.
7. Fuel tank cap: For closing the fuel tank.
8. Rear handle: Support handle located on the top of
the engine housing.
9. Choke lever: Device for enriching the fuel/air mixture
in the carburetor, to aid starting.
10. Priming pump: Device for supplying extra fuel, to aid
starting.
11. Guide bar: The part that supports and guides the
saw chain.
12. Saw chain: Chain, serving as a cutting tool.
13. Chain brake (Front hand guard): Device for stopping
or locking the chain.
14. Attachment point: The part for suspending the unit
by using a safety strap, carabineer or rope.
15. Chain catcher: device for restraining the saw chain.
16. Side case: Protective cover to the guide bar, saw
chain, clutch and sprocket when the chain saw is in
use.
17. Muffl er: Reduces engine exhaust noise and directs
the exhaust gases.
18. Anti-vibration spring: Reduce the transmission of
vibrations to the operator's hands.
19. Anti-vibration rubber: Reduce the transmission of
vibrations to the operator's hands.
20. Spiked bumper: Device for acting as a pivot when
in contact with a tree or log.
21. Guide bar cover: Device for covering the guide bar
and saw chain when the unit is not being used.
22. Combi box spanner: The tool for removing or
installing a spark plug and tensioning the saw chain.
23. Handling instructions: Included with unit. Read
before operation and keep for future reference to
learn proper, safe techniques.
18
10
8
2
9
6
5
1
3
7
4
21
22
23
12
18
13
16
17
14
19
15
11
20
