0.024"(0.6 mm)

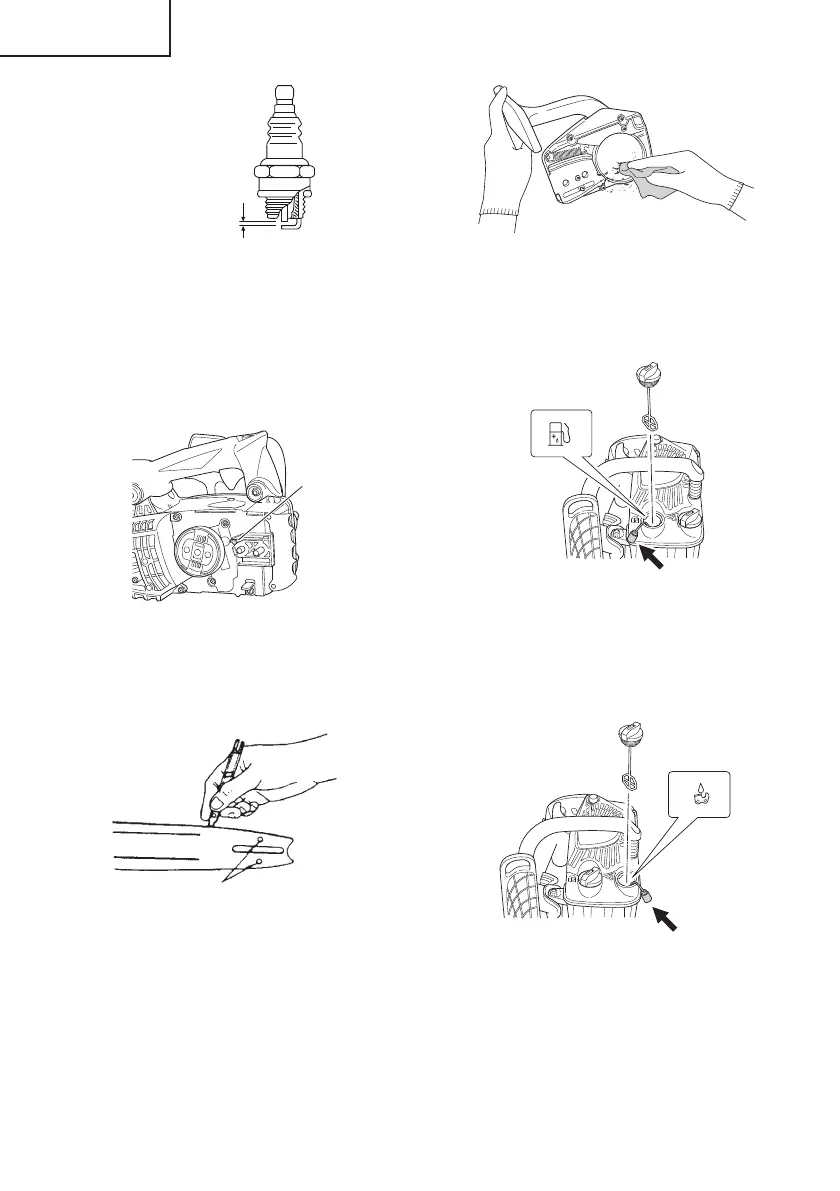

Fig. 34
NOTE
In some areas, local law requires using a resistor
spark plug to suppress ignition signals. If this
machine was originally equipped with resistor spark
plug, use same type of spark plug for replacement.
Oiler port (Fig. 35)
Clean the chain oiler port (39) whenever possible.
39
Fig. 35
Guide bar (Fig. 36)
Before using the machine, clean the groove and oiler
port (40) in the bar with the special gauge off ered as an
optional accessory.
40
Fig. 36
Side case (Fig. 37)
Always keep the side case and drive area clean of saw
dust and debris. Periodically apply oil or grease to this
area to protect from corrosion as some trees contain
high levels of acid.
Fig. 37
Fuel fi lter (Fig. 38)
Remove the fuel fi lter from the fuel tank and thoroughly
wash it in solvent. After that, push the fi lter into the tank
completely.
Fig. 38
NOTE
If the fi lter is hard due to dust and dirt, replace it.
Chain oil fi lter (Fig. 39)
Remove the oil fi lter and thoroughly wash it in solvent.
After that, push the fi lter into the tank completely.
Fig. 39
NOTE
If the fi lter is hard due to dust and dirt, replace it.
