24
Cable Layout

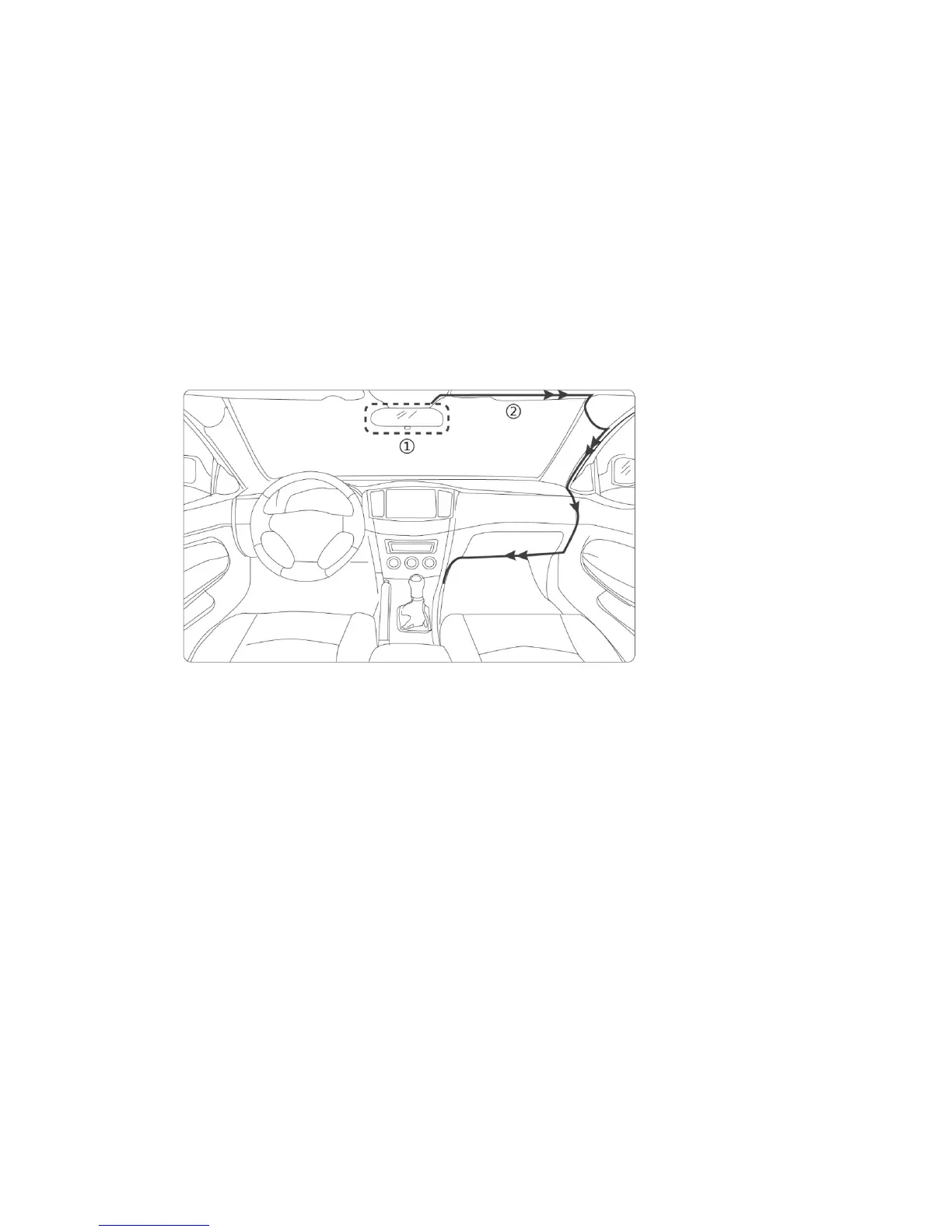

Please refer to the following diagram for DVR optimal installation
position.
1. Position the DVR behind the rear-view mirror. Make sure it does not
block your driving view.
2. Lay the cable as indicated by the following diagram
3. Connect the USB cable with car charger
Note: you can lay the cable differently as long as it does not block your
driving view.
1.Optimal installation position
2. Power cable path
Connect to Computer
With TF card inserted, when connected to computer, two options will be
available: Storage or Video. Storage allows the TF card to be accessed
via computer as an external storage. Video mode allows the DVR to
function normally while charging via computer
HDMI Connection
You can connect the DVR with TV / Monitor via HDMI cable (not
provided). This allows you to view the high-resolution recording on TV /
Monitor
