3. MAINTENANCE

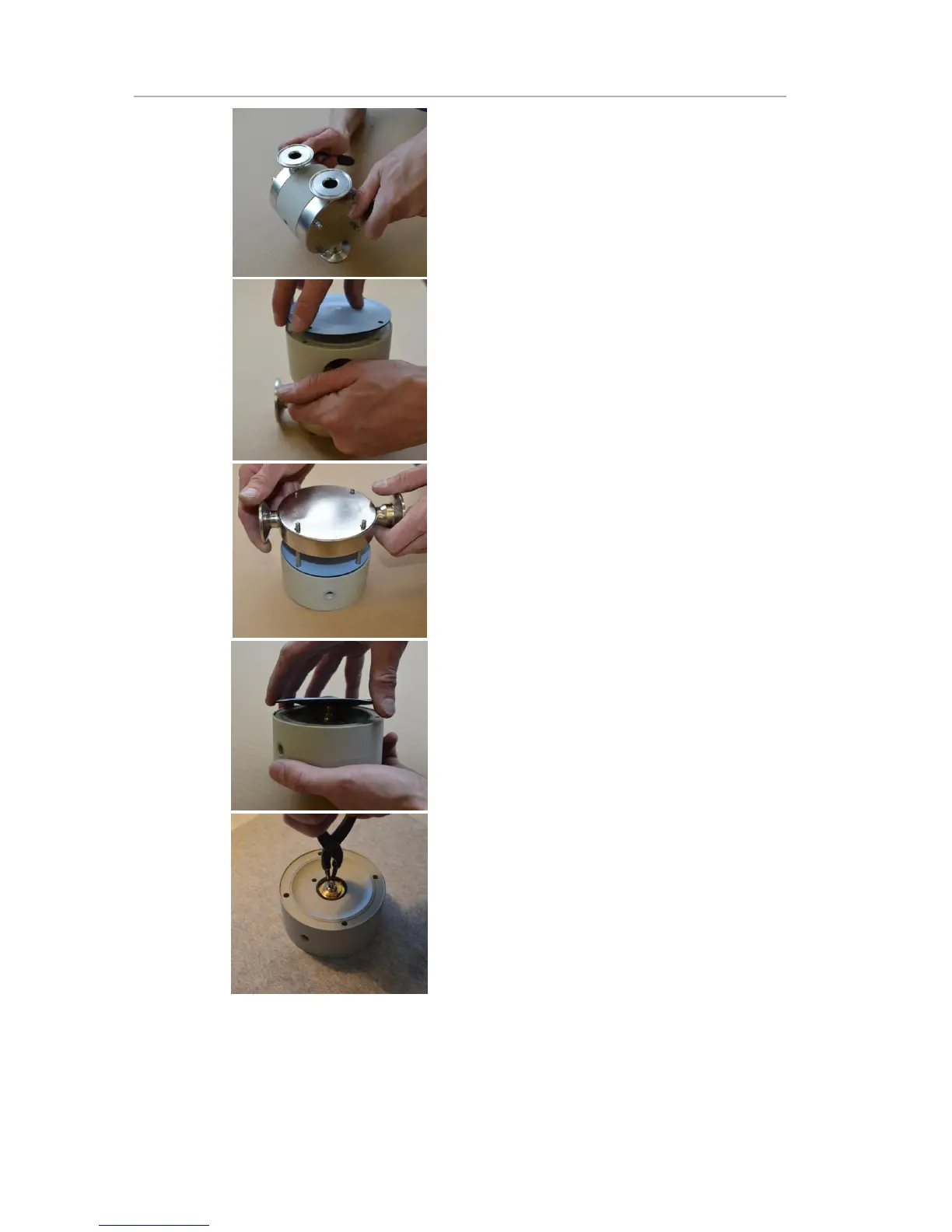

Fig. 3.5.5
Unscrew the domed nuts [37] and remove the housing
[11] from one side of the pump.
Fig 3.5.6
Unscrew the diaphragm [15].
Fig 3.5.7
Turn the pump over, remove the domed nuts [37] and
washers [38]. Take off the second housing [11].
Fig 3.5.8
Take out the pin screws [14] and unscrew the second
diaphragm [15].
Fig 3.5.9
Using pliers remove both circlips [27] from the centre
block [12].
Attention! While doing this, cover yourself with your
other hand, as the circlip easily flips away
