5. SPARE PARTS
IOM manual Tapflo sanitary series pumps 29
5. SPARE PARTS

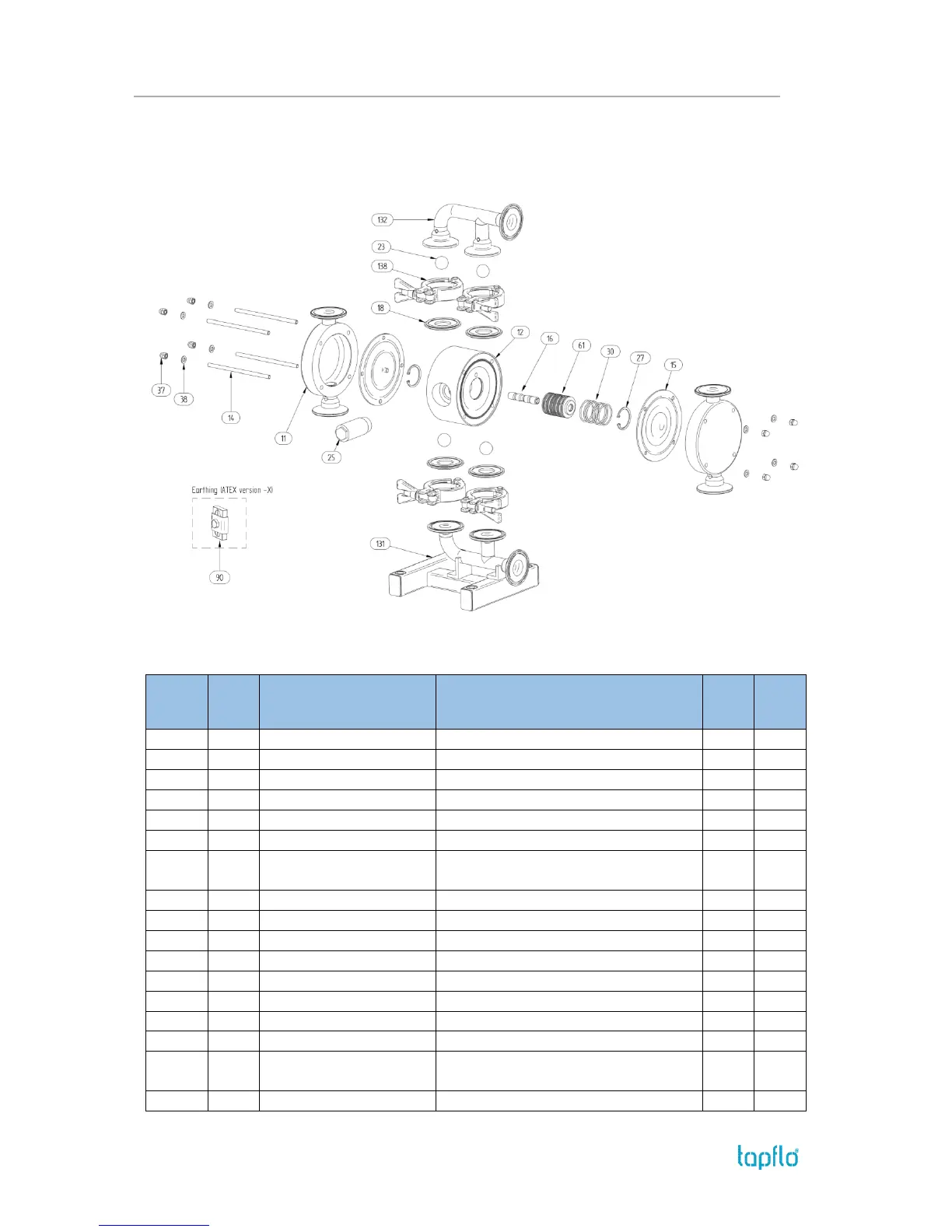

5.1. T30 – Spare parts drawing
5.2. T30 – Spare parts list
Pos.
Q-ty
Description
Material
KIT
LIQ
KIT
AIR
11
2
Housing
AISI 316L
12
1
Centre block
PP, Conductive PP
131
1
Manifold inlet and stand
AISI 316L
132
1
Manifold outlet
AISI 316L
138
4
3-clamp
AISI 304
14
4
Pin screw
A4-80
15
2
Diaphragm
EPDM, PTFE, NBR, PTFE/White EPDM,
white EPDM
X
16
1
Diaphragm shaft
AISI 316L
18
4
Sealing
EPDM, PTFE
X
X
23
4
Valve ball
PTFE, AISI 316, EPDM, NBR, PU
X
25
1
Muffler
PP
X
27
2
Circlip
Cr3 coated steel
30
6
O-ring
NBR, FKM, EPDM
37
8
Nut
A4-70
38
8
Washer
A4-70
61
1
Air valve complete
AISI 316L/FKM, Brass/NBR,
Brass/EPDM, AISI 316L/FKM, PET/FKM
X
90
1
Earthing (complete)
AISI 316L / A4-70
