TapFlo T30 - T225-T425 Spare Parts Drawing and List

5. SPARE PARTS

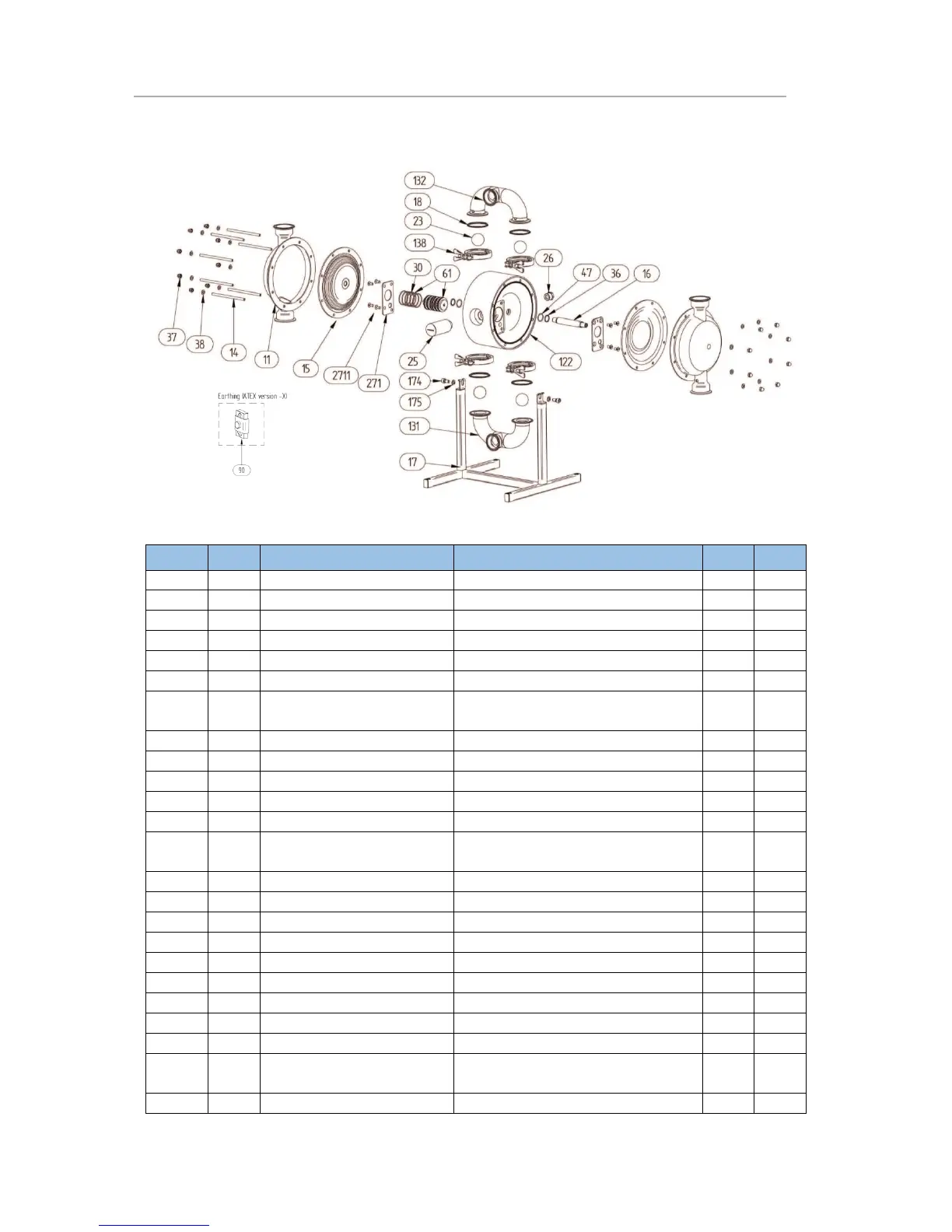

5.6. T225-T425 – Spare parts drawing
5.7. T225-T425 – Spare parts list
Pos.
Q-ty
Description
Material
KIT LIQ
KIT AIR
11
2
Housing
AISI 316L
122
1
Centre block
PP, PP Conductive
131
1
Manifold inlet
AISI 316L
132
1
Manifold outlet
AISI 316L
138
4/8*
3-clamp
AISI 304
14
8
Pin screw
A4-80
15
2
Diaphragm
EPDM, PTFE, NBR, PTFE/White
EPDM, white EPDM
x
16
1
Diaphragm shaft
AISI 304L
x
17
1
Support
AISI 304L
174
2
Socket head cap screw
A4-70
175
2
Washer
A4-70
18
4/8*
Sealing
EPDM, PTFE
x
x
23
4
Valve ball
PTFE, PTFE 1635, AISI 316, EPDM,
NBR, Polyurethane
x
25
1
Muffler
PP
x
26
1
Air intake adapter
Brass
271
1
Set 2 plates (left and right)
AISI 316L
2711
8
Screw
AISI 316
30
6
O-ring
NBR, FKM, EPDM
36
2
Centre block seal
PE
x
37
16
Nut
A4-70
38
16
Washer
A4-70
47
2
O-ring (back up for 36)
NBR
x
61
1
Air valve complete
AISI 316/FKM, Brass/NBR (std),
PET/FKM, Brass/EPDM, AISI 316/FKM,
x
90
1
Earthing (complete)
AISI 316L / A4-70
* Flap valve version
