TapFlo T30 - T825 Spare Parts Drawing and List

5. SPARE PARTS

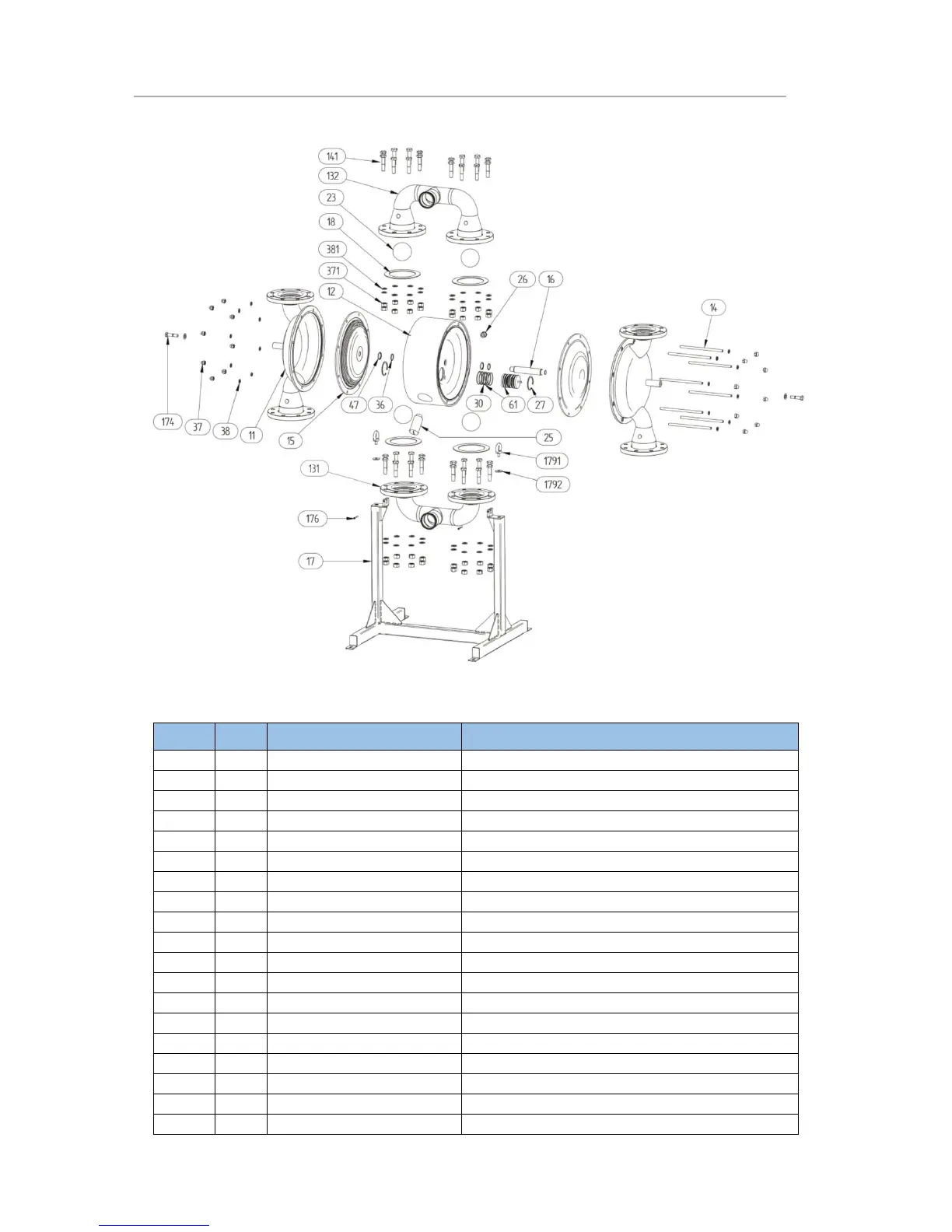

5.9. T825 – Spare parts drawing
5.10. T825 – Spare parts list
Pos.
Q-ty
Description
Material
11
2
Housing
AISI 316L
12
1
Centre block
PP
131
1
Manifold inlet
AISI 316L
132
1
Manifold outlet
AISI 316L
14
8
Pin screw
A4-80
141
32
Manifold screw
A4-70
15
2
Diaphragm
EPDM, PTFE, NBR
16
1
Diaphragm shaft
AISI 304L
17
1
Stand
AISI 304
174
2
Socket head cap screw
A2-70
176
2
Blocking pin
AISI316L
1791
2
Eye bolt
A2-70
1792
2
Eye bolt washer
A2-70
18
4
Sealing
PTFE
23
4
Valve ball
PTFE, EPDM
25
1
Muffler
PP
26
1
Air intake adapter
Brass
27
2
Circlip
Cr3 coated steel
30
6
O-ring
NBR, FKM, EPDM
