3. MAINTENANCE

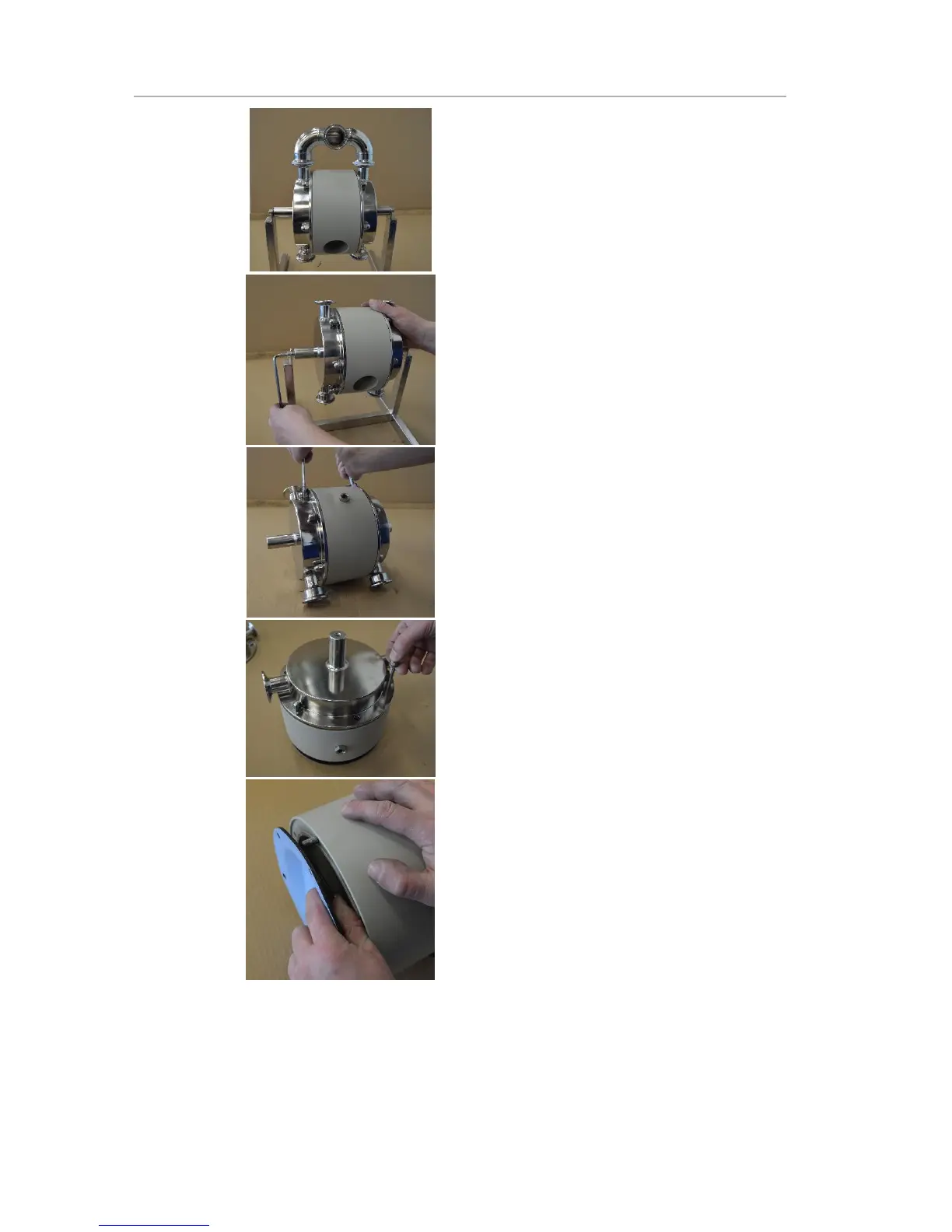

Fig. 3.7.3
Unscrew and remove two tri-clamps [138] connecting
the second manifold [131] to the housings [11].
Fig. 3.7.4
Remove the valve balls [23] and sealing [18].
Loosen the socket head cap screws [174] and take off
the pump from the stand [17].
Fig. 3.7.5
Unscrew the domed nuts [37] and remove the housing
[11] from one side of the pump.
Fig. 3.7.6
Turn the pump over, remove the domed nuts [37] and
washers [38]. Take off the second housing [11].
Fig. 3.7.7
Unscrew the diaphragm [15] from one side of the pump.
