3. MAINTENANCE
IOM manual Tapflo TF series 18

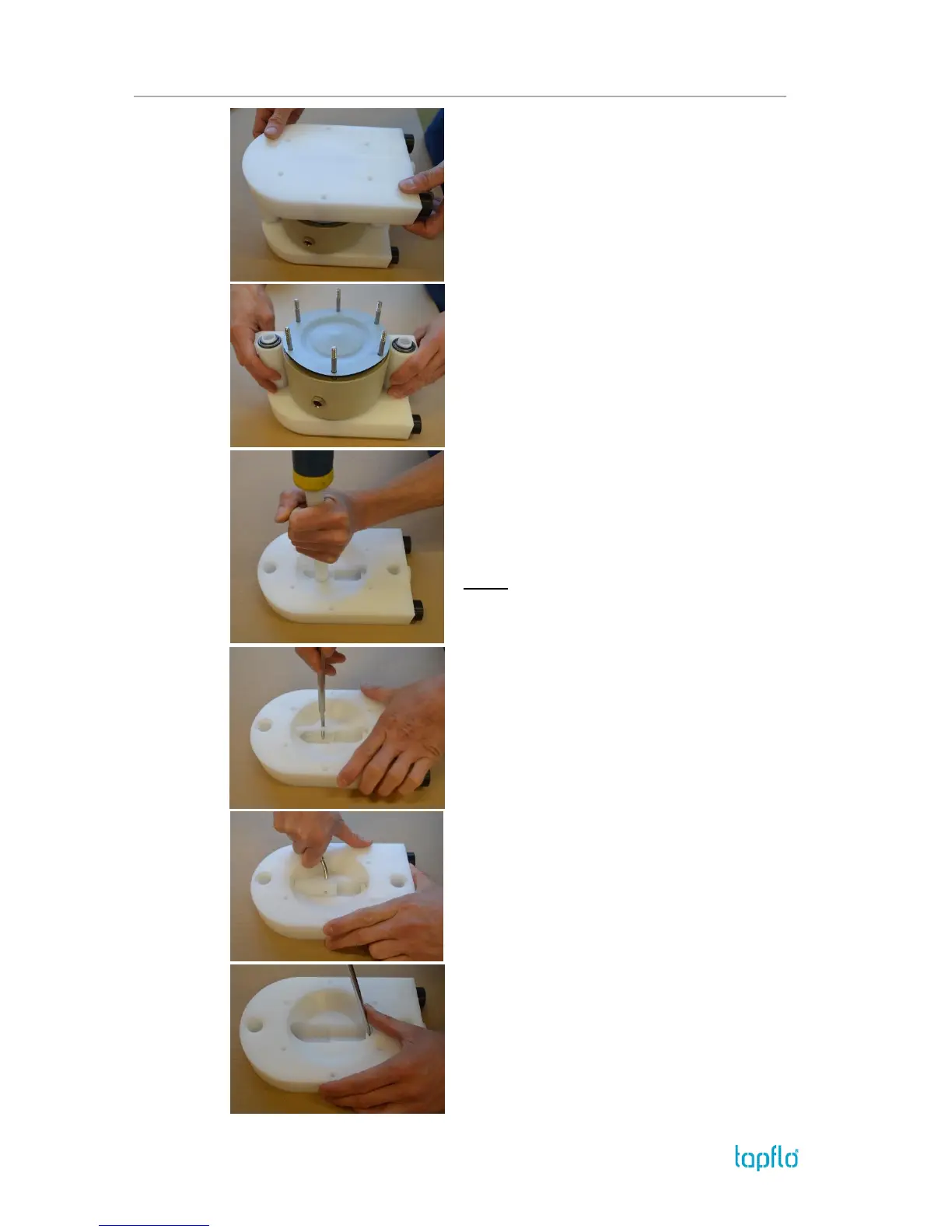

Fig. 3.5.5
Lay down the pump on one side and lift one of the
housings [11].
Fig. 3.5.6
Lift the loose manifolds [13] and centre block [12] from
the second housing [11].
Fig. 3.5.7
To remove the spacer sleeve [19], use a plastic rod and
a hammer to knock it out.
NOTE! Be careful not to deform the spacer sleeve.
Fig. 3.5.8
Insert our special tool or pin screw [14] into the orifice
in the spacer sleeve [19], rotate it.
Fig. 3.5.9
Pull out the spacer sleeve [19].
Fig. 3.5.10
Pull out the lower sleeve [212], valve seat [222] and
O-ring [43].
