6. DATA
IOM manual Tapflo TF series 40
6.5. Tightening torques
The following tightening torques are recommended.
PUMP SIZE
MOUNTING TORQUE [Nm]
TF50, TF70 S
8
TF100, TF120 S
16
TF200, TF220 S
20
TF400, TF420 S
23
TF70 A/C
12
TF120 A/C
17
TF220 A/C
18
TF420 A/C
20

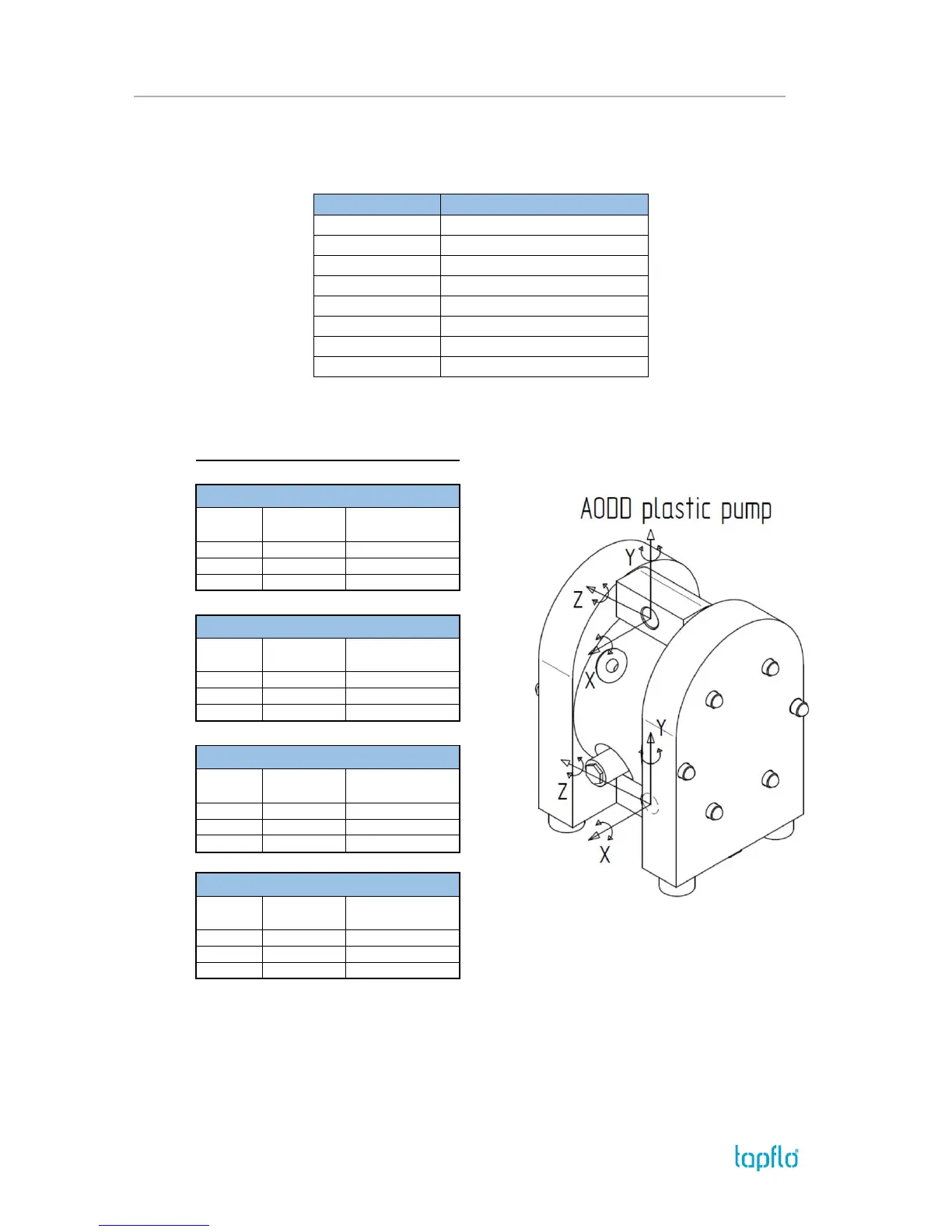

6.6. Permitted loads on manifolds
We recommend not to exceed the following loads and forces reacting on the manifolds.
TF50
Direction
Load [N]
(inlet/outlet)
Moment of force
(inlet/outlet) [Nm]
X
31
5,3
Y
31
5,3
Z
31
5,3
TF100
Direction
Load [N]
(inlet/outlet)
Moment of force
(inlet/outlet) [Nm]
X
35
6,1
Y
35
6,1
Z
35
6,1
TF200
Direction
Load [N]
(inlet/outlet)
Moment of force
(inlet/outlet) [Nm]
X
43
7,4
Y
43
7,4
Z
43
7,4
TF400
Direction
Load [N]
(inlet/outlet)
Moment of force
(inlet/outlet) [Nm]
X
56
9,6
Y
56
9,6
Z
56
9,6
