Target hamilton - Step 1: Front Panels & Supports to Back Panel

7

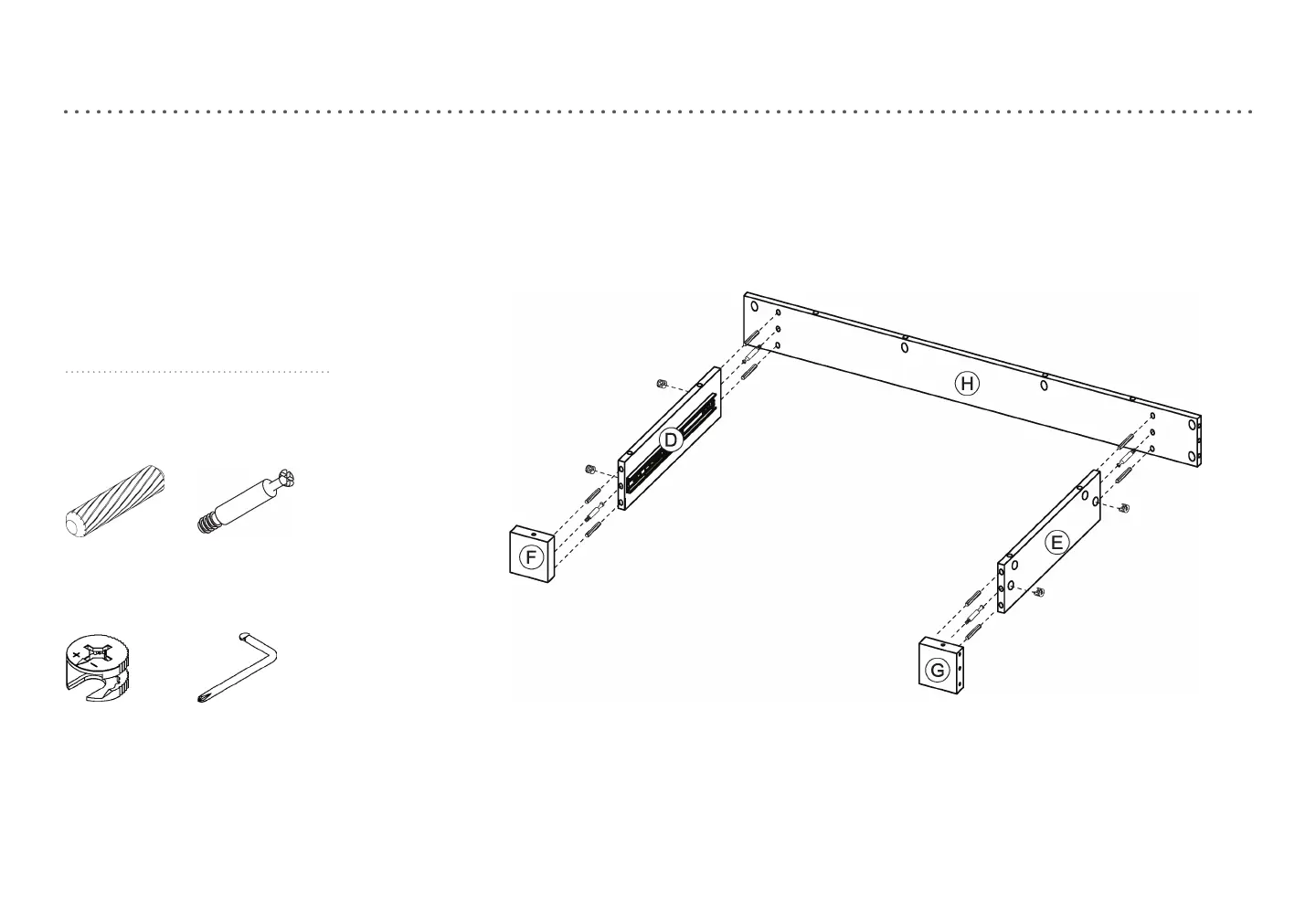

step 1: attach front panels and drawer side supports to back panel
(H1) x 8
wooden dowel
(H2) x 4
cam bolt
(H3) x 4
cam
(H9) x 1
mini screwdriver
1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
1.2. Screw-In cam bolts must be screwed down ush.
1.3. Refer to page 6 for instructions on how to use the cam lock system.
1.4. Do not over tighten bolts.
