Target MC18 - Diagram 10 - Kit, Water Tank (174957); Water Tank Kit Components Identification

38

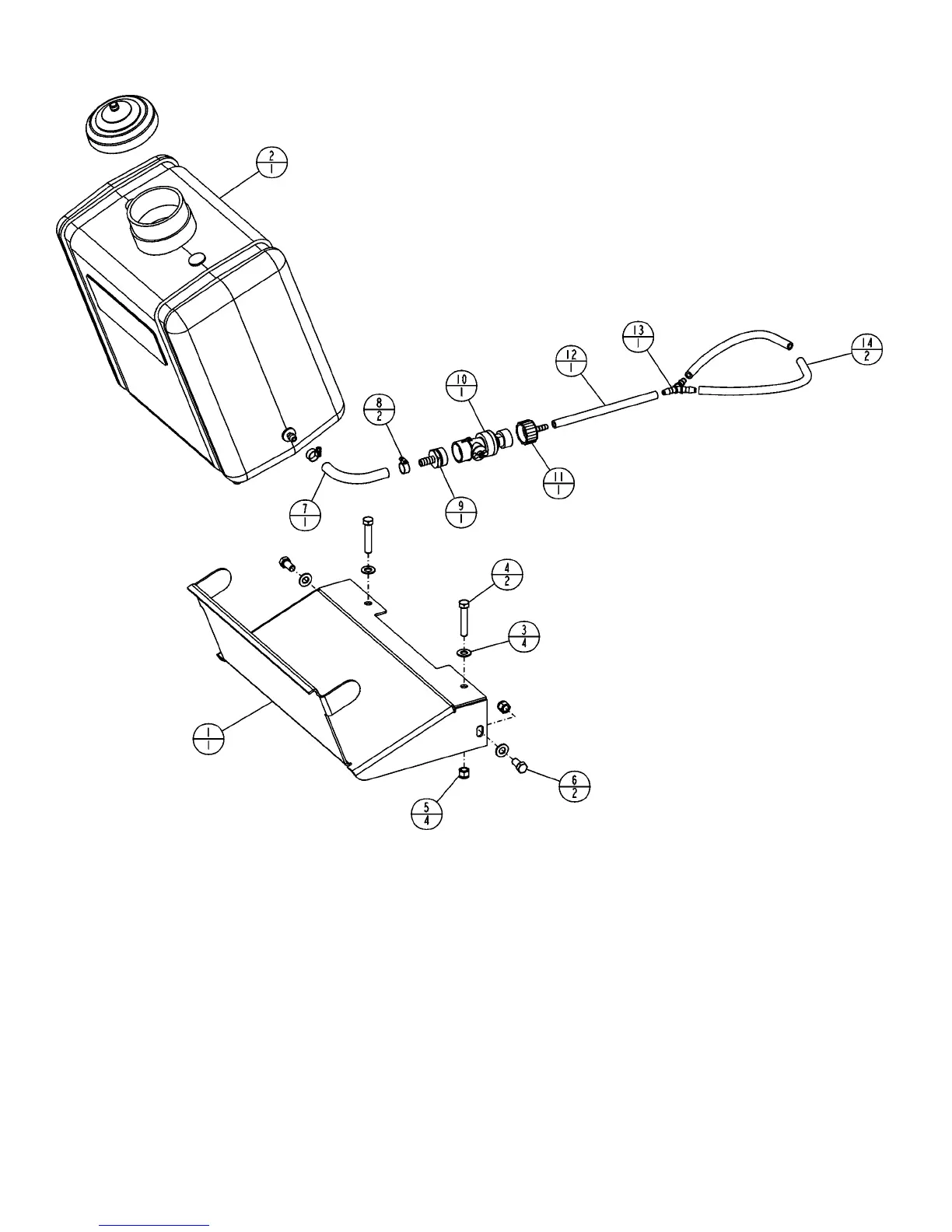

Diagram 10 – Kit, Water Tank (174957)
BILL OF MATERIAL
INDEX P/N DESCRIPTION QTY
1 196035 Bracket, Water Tank 1
2 174648 Water Tank (w/cap), 7 Gallon 1
3 020764 Washer, Flat .375 SAE 4
4 020509 Capscrew, Hex Hd .375-16UNC x 2.00 2
5 020199 Locknut, Fiber .375-16UNC 4
6 020322 Capscrew, Hex Hd .375-16UNC x .75 2
7 139722 Hose, 3/8 ID x 4.4 1
8 020049 Hose Clamp, Worm Drive 2
9 174016 Fitting, Hose Barb 3/8 ID x 3/4 Male 1
10 174741 Kit: Quick Disconnect Garden Hose w/Valve 1
11 196037 Fitting, 3/4 FGH SWV x 1/4 HB Nylon 1
12 187667 Hose, 1/4 ID x 7in 1
13 196038 Fitting, 1/4 Y Nylon LP 1
14 187667 Hose, 1/4 ID x 9in 2
