Tascam MP-BT1 - Front Panel; Right Side Panel

6 TASCAM MP-BT1
q /LINE OUT jack
Connect headphones to this jack to hear the playing
tracks and the sound of a connected bass.
This jack can also be used as a line output jack.
wINPUT volume
Use to adjust the input level of the BASS IN jack.
eBASS IN jack
Connect a bass with a standard bass cable here.

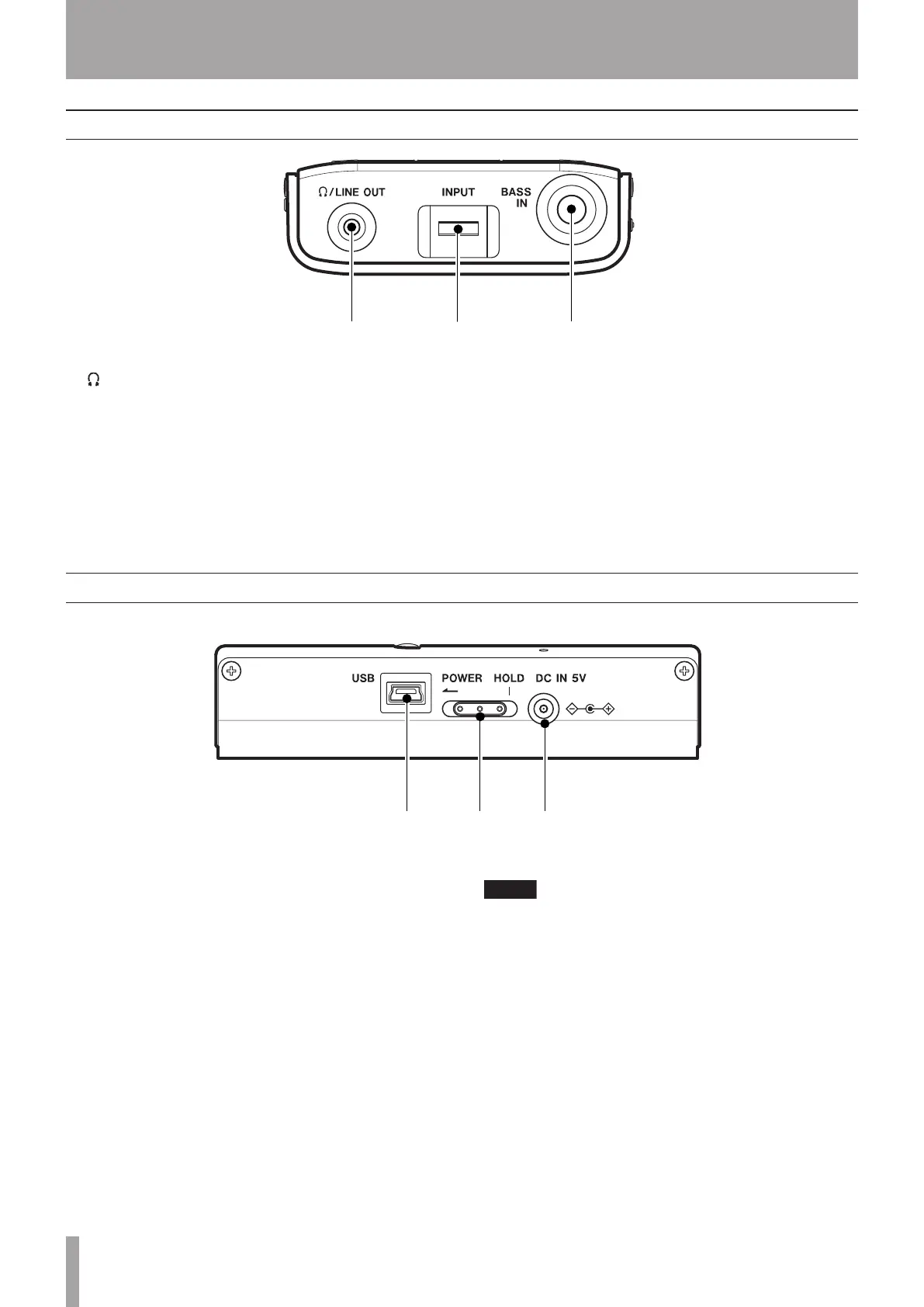

Front Panel
q
w
e
Right Side Panel
rDC IN 5V jack
Connect an AC adapter (TASCAM PS-P520, sold
separately).
tPOWER switch
Slide and hold this switch in the direction of the
arrow (to the left) to turn the power ON and OFF.
Slide it to the right to engage the HOLD function.
When set to HOLD, all keys are disabled.
yUSB port
Connect the included USB cable to this port and
your computer.
NOTE
Trouble-free use of a USB hub cannot be guaranteed.
If you experience trouble using a USB hub, connect
the unit directly with the computer.
