©Copyright Task Force Tips, Inc. 2002-2018 LIX-030 January 8, 2018 Rev24
13
8.0 DRAWINGS & PARTS LIST

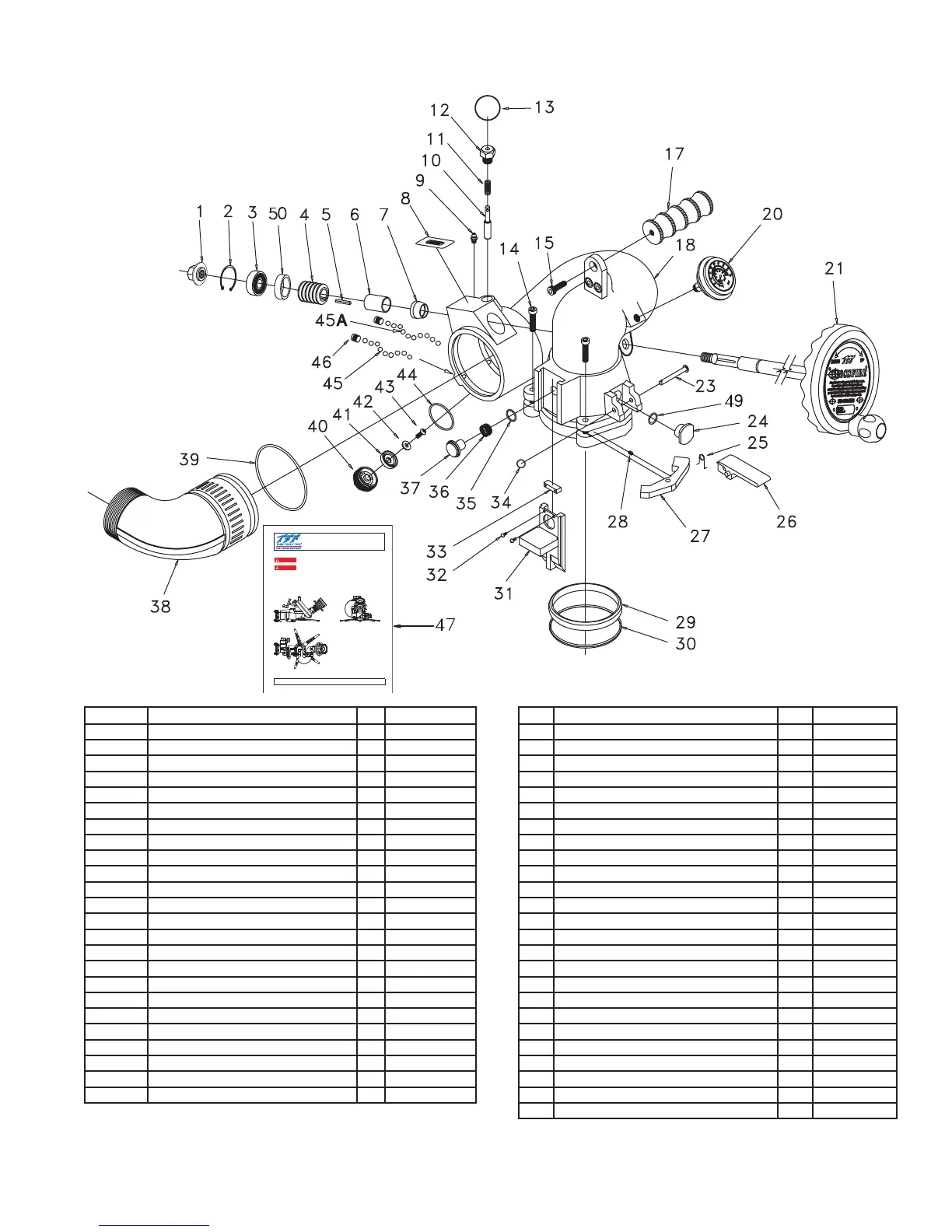

8.1 MONITOR DRAWING AND PART LIST
©Copyright Task Force Tips, Inc. 2002-2015 LIX-030 May 22, 2015 Rev23
MANUAL: CROSSFIRE Monitor
With Safe-Tak 1250 Base
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
DANGER
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at www.tft
com/serial-number.
DANGER
Risk of sliding increases at low elevation angles. To reduce risk of injury or death from sliding,
do not pull elevation pin stop while on portable base.
This Instruction Manual is intended to familiarize ¿ re¿ ghters and maintenance personnel with the operation, servicing, and
safety procedures associated with the portable monitor.
This manual should be kept available to all operating and maintenance personnel.
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
800-348-2686
DANGER
Additional Copies Available 24-hours
and Safety Instructions Before Use.
Read and Understand All Operation
This Stop (pin pulled) Is Dangerous.
Operating On Portable Base Below
F
O
G
STREAM
See Section 4.10.5
For Flow/Pressure
Operating Envelope
INDEX DESCRIPTION QTY ITEM #
1 SHAFT NUT 1 X210
2 SNAP RING 1 VR4220
3 BEARING 1 VM4252
4 WORM WITH KEYWAY 1 X220
5 KEY 1/8 X 1.00 1 X225
6 BUSHING 1 X230
7 BOOT 1 X240
8 DANGER LABEL 1 XL090
9 11/4-28 GREASE FITTING 1 VT25-28ZERK
10 PULL PIN 1 X340
11 PULL PIN SPRING 1 X345
12 PULL PIN HOUSING 1 X350
13 KEY RING 1 X342
14 5/16-18 X 1-1/4 SHCS 2 VT31-18SH1.2
15 3/8-16X7/8SHCS 1 VT37-16SH875
17 PEG - CARRYING HANDLE 1 X362
18 BIG BEND/BELL ASSEMBLY 1 X800
20 200 PSI/BAR GAGE/BUMPER 1 X823
21 HANDWHEEL ASSEMBLY 1 X810
22 1/4 X 1-1/8 HDP SPIROL 1 VP250X1-375H
23 CLEVIS PIN 1/4 X 2 1 X180
24 ROTATION LOCK INSERT 1 X170
25 ROTATION LOCK SPRING 1 X152
26 ROTATION LOCK LEVER 1 X821
INDEX DESCRIPTION QTY ITEM #
27 PAWL 2 X135
28 DETENT SPRING 2 H770
29 WEAR STRIP 1 X120
30 CUP SEAL .366 NITRILE 70A 1 X125
31 SLIDE BAR 1 X140
32 #6-32 X 1/4 BUTTON HEAD 2 VT06E32BH250
33 COVER 1 X142
34 CLEVIS PIN RETAINER 1 X137
35 O-RING-018 1 VO-016
36 PLUNGER WAVE SPRING 1 X165
37 SAFETY PLUNGER 1 X150
38 2.5 NH ELBOW 1 X339NJ
39 O-RING-241 1 VO-241
40 DRAIN HOUSING 1 X375
41 DRAIN VALVE 1 X382
42 FLAT WASHER 1 VW687X281-50
43 1/4-28 X 1/2 BHCS 1 VT25-28BH500
44 O-RING 130 1 VO-130
45 5/16 SS BALLS 38 VB.312
45A 5/16 TORLON BALLS 38 VB.312TO
46 3/8-24 x 3/8 SOCKET SET 2 VT37F24SS312
47 MANUAL CROSSFIRE 1 LIX-030
48 DVD - CROSSFIRE 1 LIX-200
49 O-RING-117 1 VO-117
50 SPACER 1 X236
