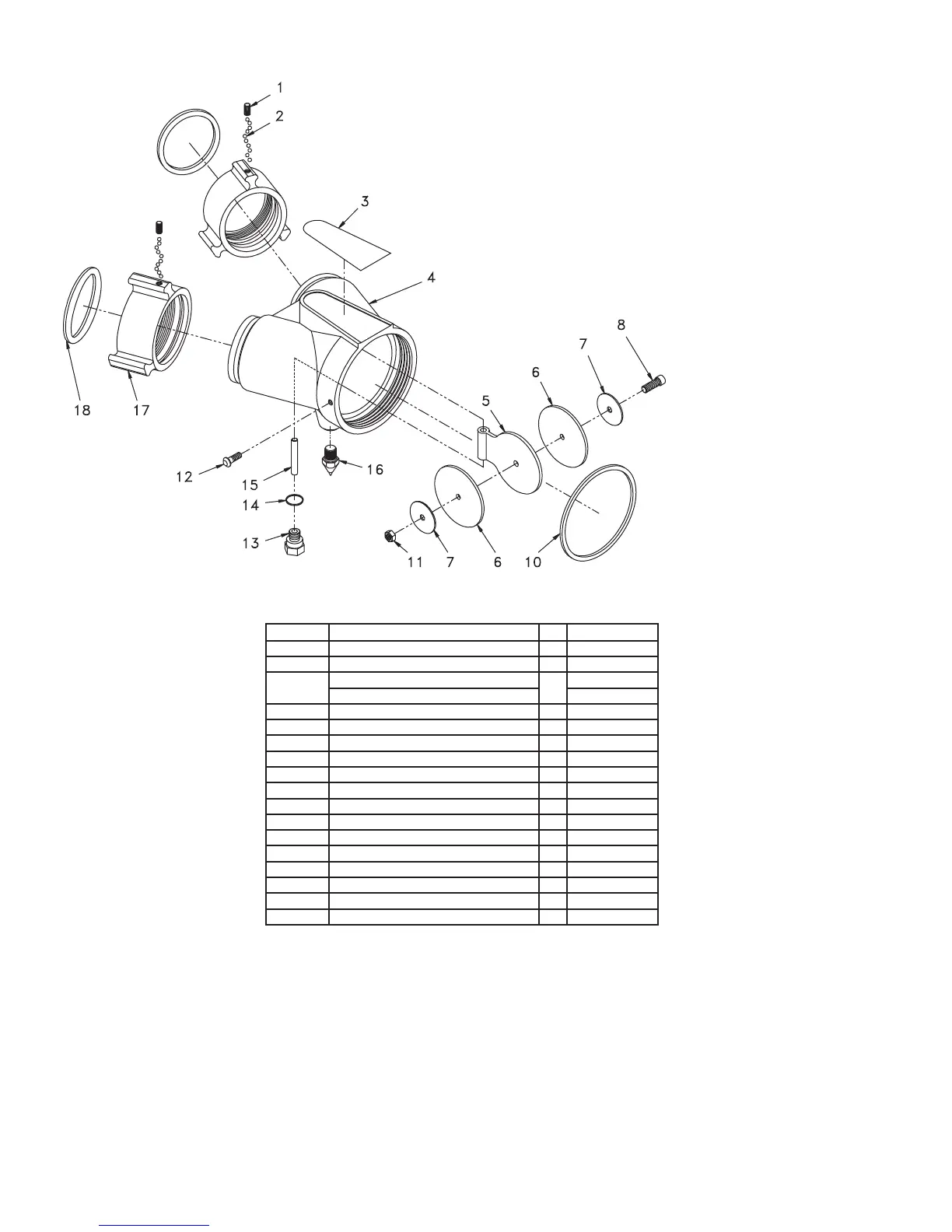

Task Force Tips SAFE-TAK 1250 - 8.2 SAFE-TAK 1250 DRAWING AND PART LIST; 8.3 HIGH FLOW INLET OPTION

©Copyright Task Force Tips, Inc. 2002-2018 LIX-030 January 8, 2018 Rev24
16
8.5 DOUBLE INLET OPTION
INDEX DESCRIPTION QTY ITEM #
1 1/4-28 x 1/2 SOCKET SET 2 VT25-28SS500
2 3/16 SS BALL 96 V2120
3
SAFETY VALVE BASE LABEL
1
XL080
NO VALVE BASE LABEL XL085
4 2.5" WYE 1 X712
5 2.5" CLAPPER 1 X772
6 2.5" CLAPPER GASKET 2 X762
7 WASHER 2 VW1.9x26-076
8 1/4-20 x 1 SHCS, SS 1 VT25-20SH1.0
10 O-RING-244 1 VO-244
11 1/4-20 STAINLESS NUT 1 VT25-20NT
12 1/4-28 X 3/4 BUTTON HEAD 1 VT25-28BH750
13 PIVOT BOLT 1 X784
14 O-RING-013 1 VO-013
15 CLAPPER PIVOT 1 X732
16 REAR SPIKE 1 X482
17 2.5" NH COUPLING (pictured) 2 M307N
18 2.5" COUPLING GASKET (pictured) 2 V3190
