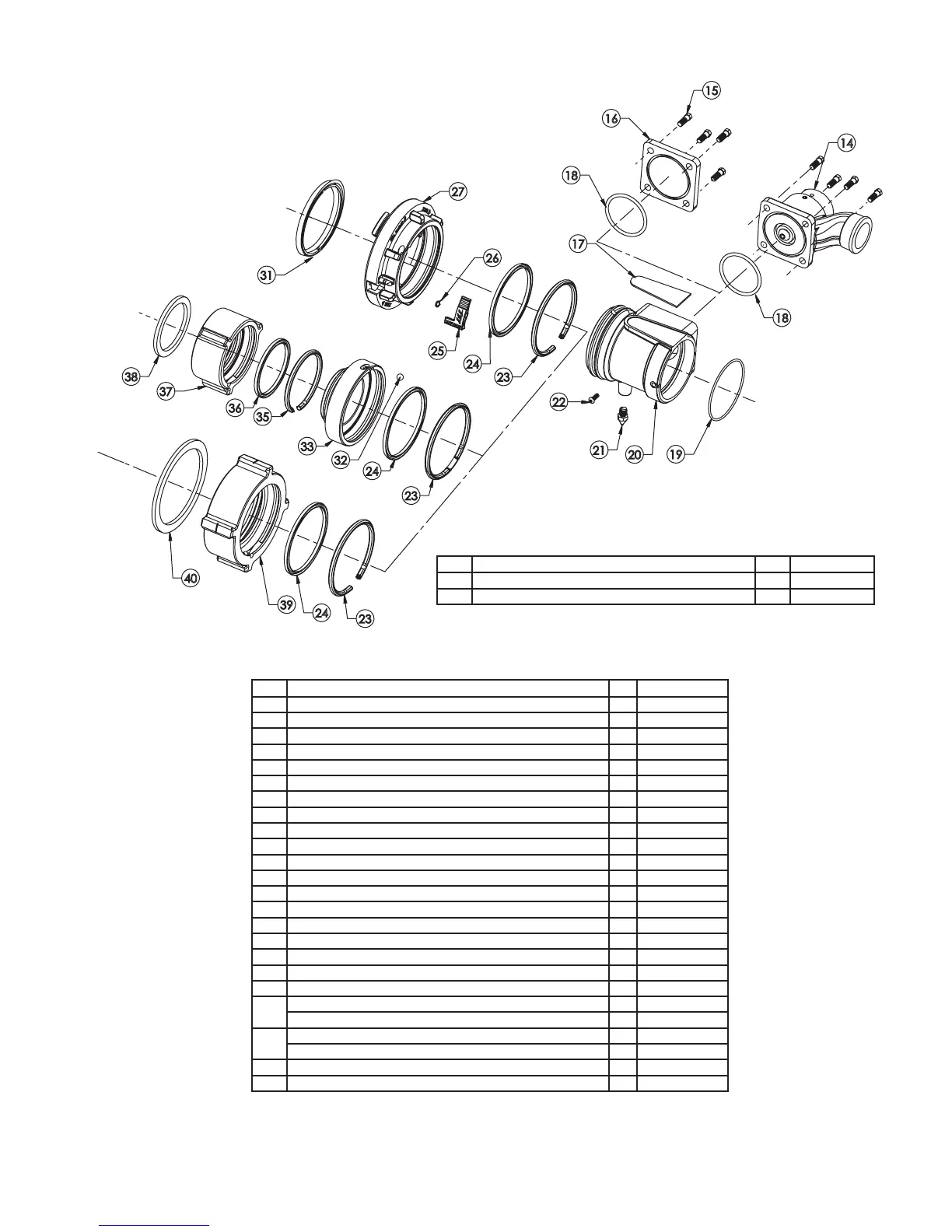

8.3 HIGH FLOW INLET OPTION
19
20
21
22
23
25
27
24
31
26
17
16
18
15
14
40
39
24
23
24
23
33
35
36
37
38
32
18
9
20
21
22
23
25
27
24
31
26
17
18
40
39
24
23
24
23
33
35
36
37
38
32
16
15
14
18
INDEX DESCRIPTION QTY ITEM #
14 RELIEF VALVE WITHOUT THREAD, ALUMINUM 1 A1810
15 7/16-14 X 1 HEX HEAD BOLT 18-8 STAINLESS STEEL 4 VT43-14HX1.0
16 LDH BLANK CAP HARDCOAT USE ON X651 1 X631
17 SAFETY VALVE BASE LABEL 1 XL080
18 O-RING-236 3-1/4 ID 1/8 C/S 3.234 +/-.024 ID.139 +/-.004 C/S 1 VO-236
19 O-RING-244 4-1/4 ID 1/8 C/S 4.234+-.030 ID .139+-.004 C/S 1 VO-244
20 LDH ADAPTOR W/PSM5.25 1 X651
21 REAR SPIKE 1 X482
22 ¼-28 X ¾ BUTTON HEAD - ND PATCH 1 VT25Y28BH750
23 PLASTIC STRIP 5.25" - MOLDED 1 A1291
24 CUP SEAL 5.25 X 4.75 X ¼ PRECISION ASSOCIATES #666-427 1 A1296
25 LOCKING LEVER - MOLDED 1 A4176
26 SPRING TORSION (STORZ LOCK) 9991067 MIDSTATE # 210049 1 A4230
27 COUPLING HEAD STROZ 5 X 5.25 PSF HARDCOAT 1 A4135
31 GASKET 5" PRESSURE MOLDED 9991000 1 A4220
32 BALL 7/16 STAINLESS 302 GRADE 100 1 VB.437
33 MATE PSM4.25 X PSF5.25 - HARDCOAD 1 A4730
35 PLASTIC STRIP 4.25" - MOLDED 1 A1292
36 CUP SEAL 4.25 X 3.750 X 1/4 1 A1297
37
COUPLING RL 3.0NHF X PSF4.25 1 A4650N
COUPLING RL 3.5NHF X PSF4.25 1 A4655N
38
GASKET 3.0 HOSE COUPLING 1 V3194
GASKET 3.5 HOSE COUPLING 1 V3196
39 4.0 NH FEMALE X PSF5.25 1 A4660N
40 4.0 HOSE COUPLING GASKET 1 V3198
4” STORZ COUPLING IS AVAILABLE (NOT SHOWN)
INDEX DESCRIPTION QTY ITEM #
1 STORZ 4" FTS PSF4.25 - PARTS SET FULL TIME SWIVEL 1 A4114.1
2 MATE PSM4.25 X PSF5.25 LOCKOUT PART SET 1 A4730.2
