©Copyright Task Force Tips, Inc. 2002-2018 LIX-030 January 8, 2018 Rev24
14

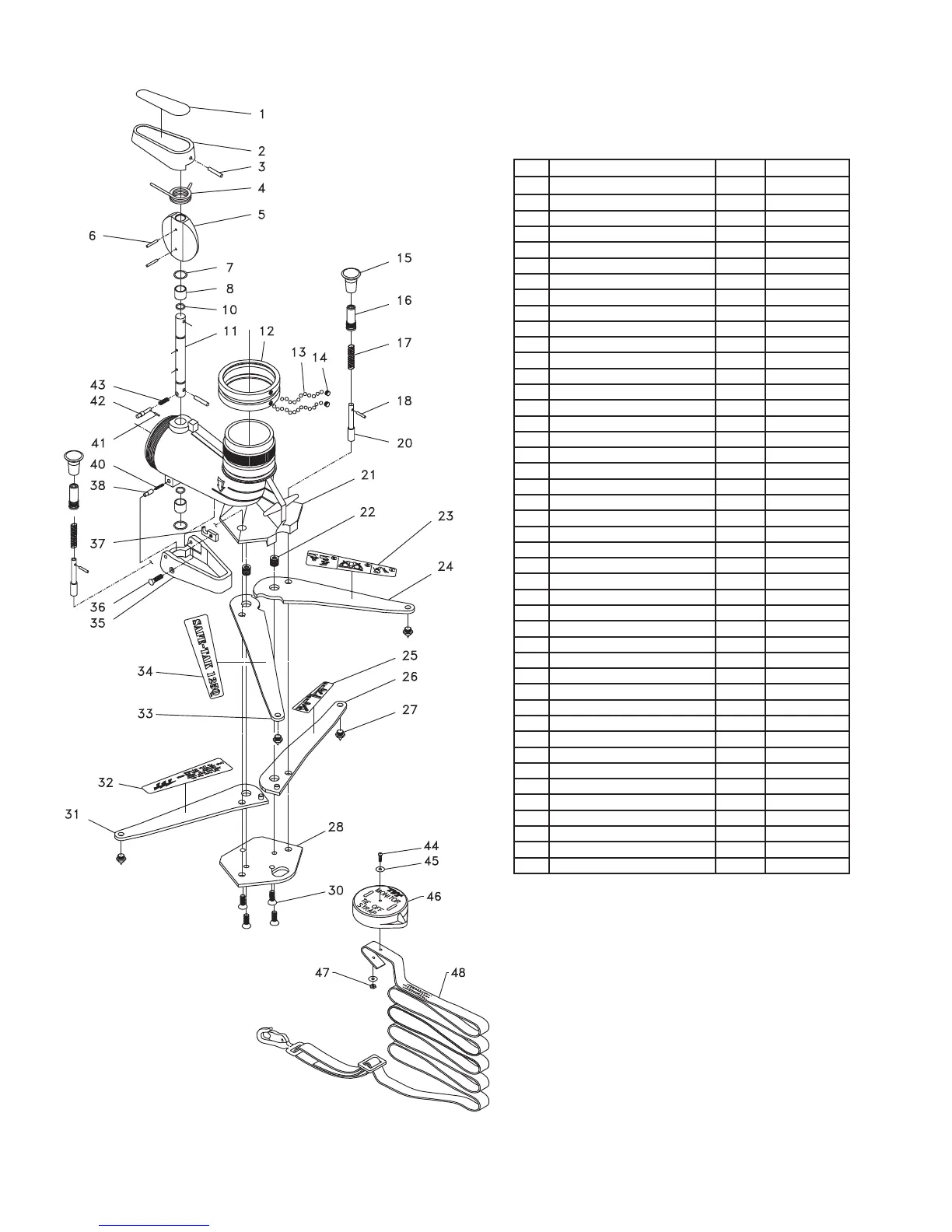

8.2 SAFE-TAK 1250 DRAWING AND PART LIST
SAFE-TAK 1250®
with Safety Valve
INDEX DESCRIPTION QTY ITEM #
1 SAFETY VALVE HANDLE LABEL 1 XL070
2 VALVE HANDLE 1 X540
3 1/4 x 1 3/8 SPIROL PIN 1 VP250X1.375H
4 TORSION SPRING 1 X560
5 BUTTERFLY 1 X550
6 5/32 x 1 1/8 SPIROL PIN 2 V1920
7 O-RING-118 2 VO-118
8 BUSHING 2 X565
10 O-RING-113 2 VO-113
11 VALVE SHAFT 1 X570
12 SWIVEL RING 1 X425
13 5/16 SS BALLS 76 VB.312
14 SWIVEL SCREW 2 X405
15 SHOT PIN KNOB 2 X430
16 KNOB BARREL 2 X440
17 SHOT PIN SPRING 2 X445
18 5/32 x 7/8 SPIROL PIN 2 V1900
20 SHOT PIN 2 X435
21 BASE 1 X420
22 BELLEVILLE WASHER 12 D07590
23 INSTRUCTION LEG LABEL 1-3 1 XL010
24 FRONT LEG - LEFT 1 X470L
25 INSTRUCTION LEG LABEL 4-5 1 XL020
26 REAR LEG - LEFT 1 X460L
27 SPIKE 4 X480
28 BOTTOM PLATE 1 X450
30 3/8-16 X 3/4 FLAT HEAD SHCS 4 VT37-16FH750
31 REAR LEG - RIGHT 1 X460R
32 TFT LEG LABEL 1 XL050
33 FRONT LEG - RIGHT 1 X470R
34 SAFE-TAK LEG LABEL 1 XL040
35 PADDLE 1 X530
36 1/4-20 x 7/8 FLAT HEAD 1 VT25E20FH875
37 WEAR PLATE 1 X585
38 PADDLE PIVOT 2 X590
40 PADDLE PIVOT SPRING 2 X575
41 3/32 x 1/2 SPIROL PIN 1 VP094X500H
42 TRIP PIN 1 X580
43 TRIP PIN SPRING 1 X582
44 #10-32 x 7/8 BUTTON HEAD 1 VT10E32BH875
45 WASHER 2 VW700X203-60
46 STRAP CAP 1 X457
47 #10-32 HEX NUT 1 VT10-32NT
48 STRAP ASSEMBLY 1 X455 -R
