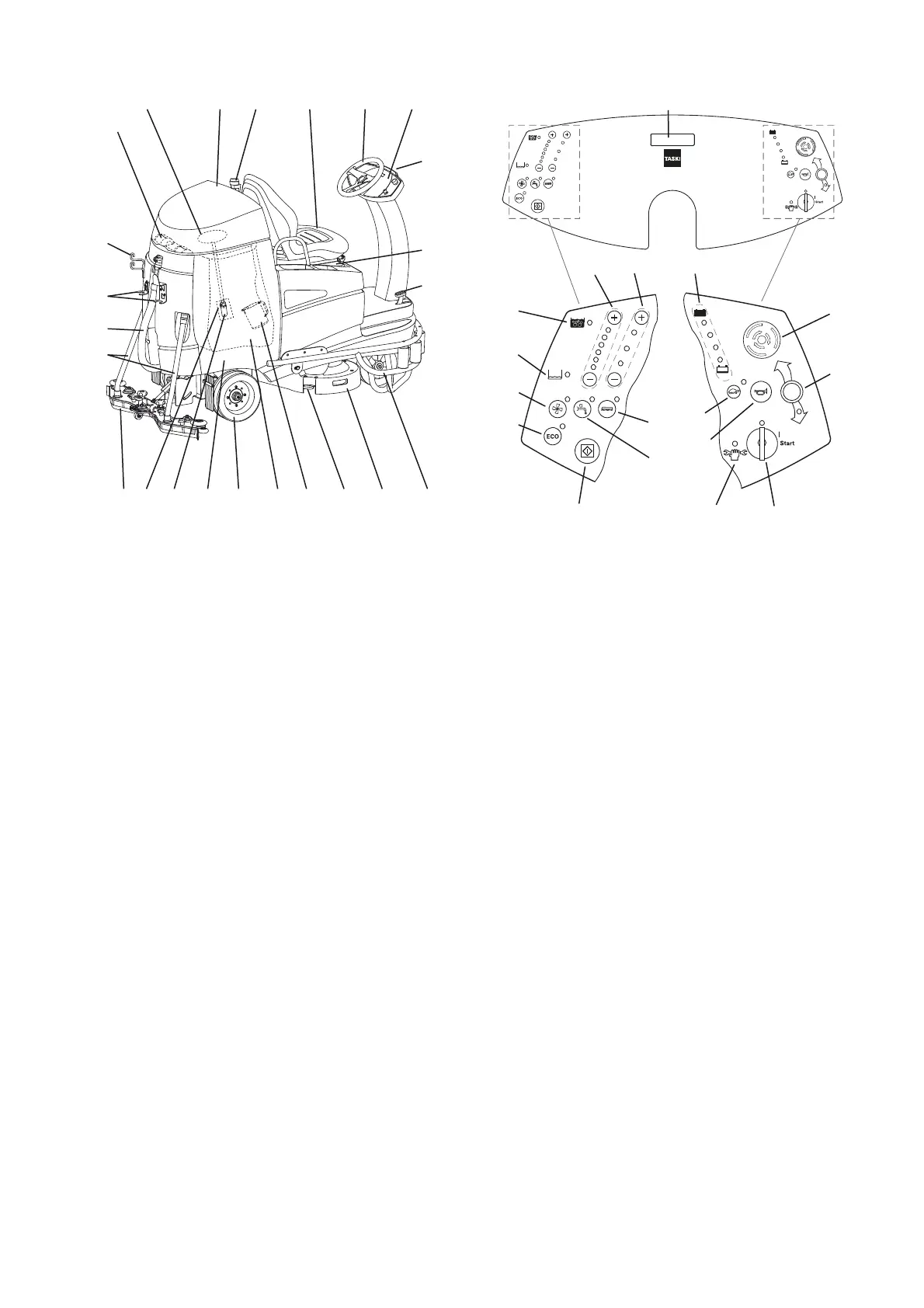

Structural layout
1 Squeegee holder
2 Suction hose holder
3 Drain hose of recovery tank
4 Suction hose
5 Squeegee
6 Clean intake
7 Pump
8 Recovery tank
9 Steered drive wheel
10 Fresh water tank (Flextank)
11 Dosage cup
12 Tool unlocking
13 Brush unit
14 Protection profile (optional)
15 Gas pedal
16 Battery compartment
17 Headlights (optional)
18 Operating panel
19 Steering wheel
20 Driver seat with seat switch (presence monitoring)
21 Flash (optional)
22 Tank lid
23 Suction filter
24 Dirt sieve
25 Recovery tank full display
26 Fresh water tank (Flextank) empty display
27 Suction unit button (ON/OFF)
28 ECO mode button (ON/OFF)
29 Program button (ON/OFF)
30 Cleaning solution button (ON/OFF)
31 Brush drive button (ON/OFF)
32 Slow approach button (ON/OFF)
33 Horn button
34 Service display
35 Key switch
36 Reversing button
37 Emergency stop
38 Battery indicator
39 Brush drive button, pressure rating (+/-)
40 Cleaning solution supply amount button (+/-)
41 Display
1
2
3
4
56 8 9
13 14
18192022
2123
24
15
17
16
1210 117
28
29 34 35
31
33
30
25 37
36
40 39
41
38
26
27
32

Taski swingo 4000 Specifications

General

Power Source	Battery
Nominal Voltage	36 V
Brush Speed	180 rpm
Battery Voltage	36 V
Cleaning Width	850 mm
