6-2
OPERATING PROCEDURES
Model 736
Operating Procedures
6

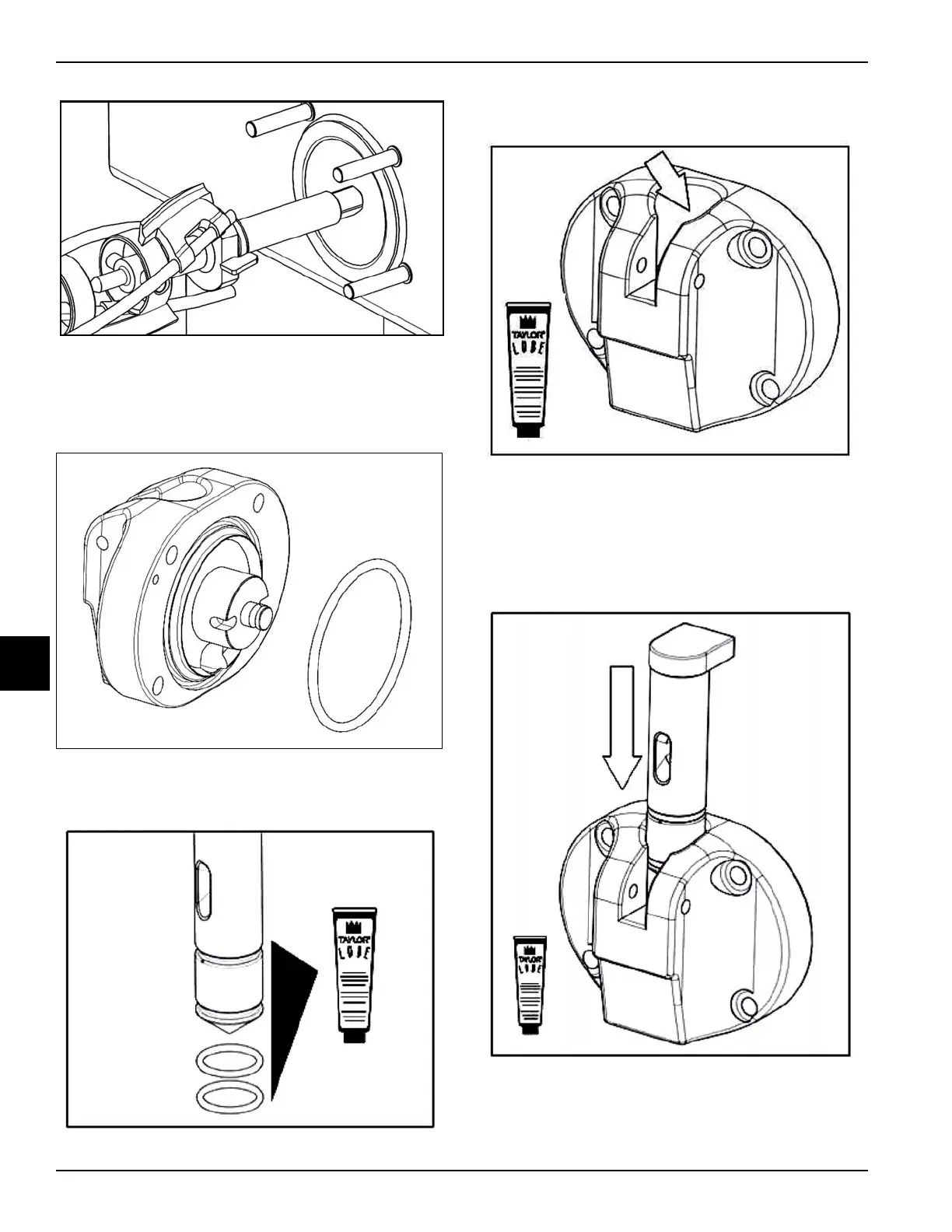

Figure 6-4
Freezer Door Assembly
1. Place the door O-ring into the groove on the back of
the freezer door.
Figure 6-5
2. Slide the two O-rings into the grooves on the draw
valve and lubricate them.
Figure 6-6
3. Lightly lubricate the inside of the top of the freezer
door valve cavity.
Figure 6-7
Note: If the draw valve is inserted with the flat
surface facing the user, this will prevent the machine
from operating.
4. Insert the draw valve from the top, with the flat part
facing toward the machine.
Figure 6-8
To Next Page
