OPERATING PROCEDURES
6-3
Model 736
Operating Procedures
6

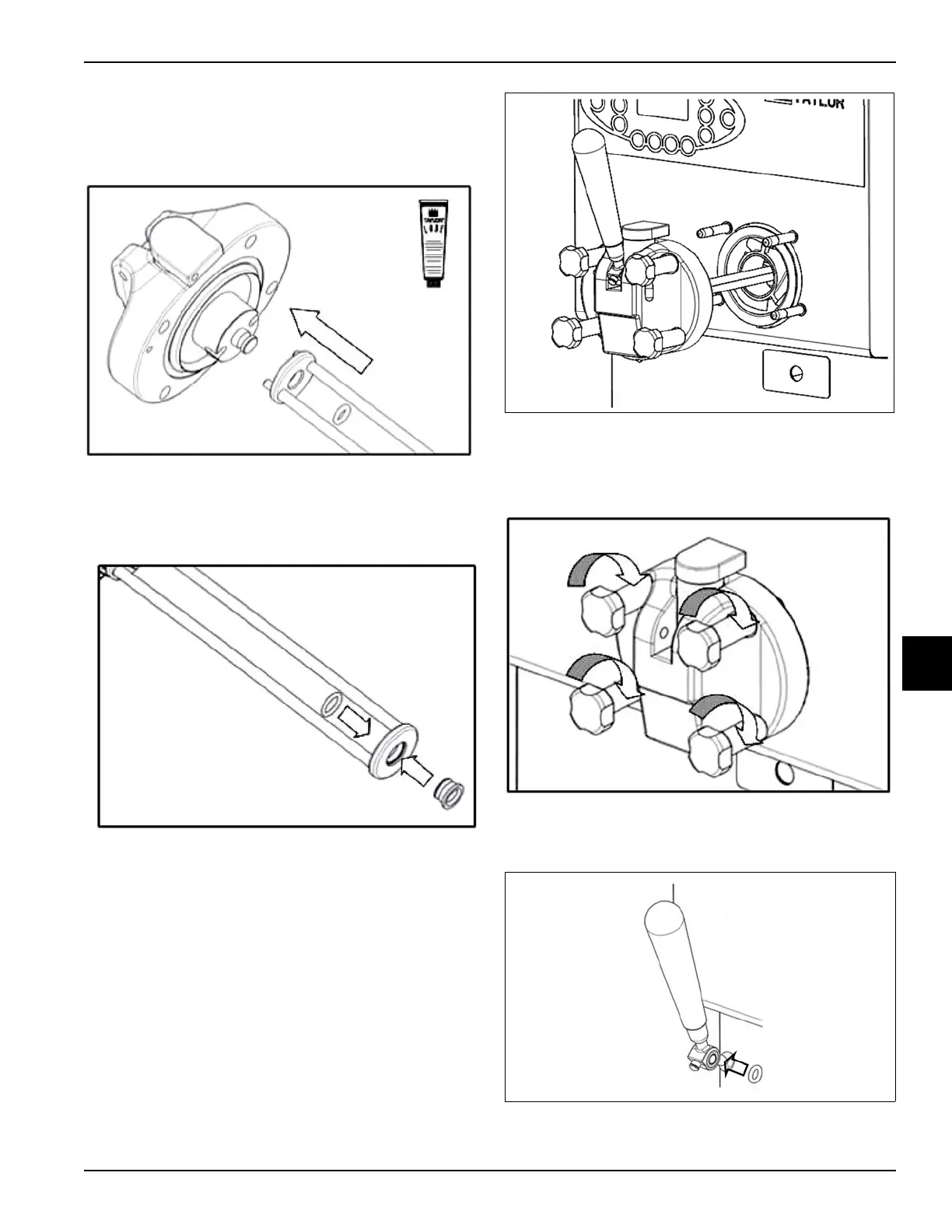

5. Insert the counter-beater on the rear pin on the
freezer door and rotate it until the pins align with the
holes in the door. Place the counter-beater O-ring
into the groove on rear pin of the freezer door.
Figure 6-9
6. Insert the plastic bushing into the back of the
counter-beater. Place the O-ring into the groove of
the bushing.
Figure 6-10
7. With both hands, hold the sides of the freezer door
and insert the counter-beater into the center of the
beater assembly. The counter-beater rear bushing
must fit securely onto the pin at rear of the beater.
Figure 6-11
8. With the door seated on the freezer studs, install the
handscrews. Tighten them equally in a crisscross
pattern to ensure the door is secure.
Figure 6-12
9. Insert the handle body O-ring handle in the goove in
the side of draw handle body.
Figure 6-13
