Taylor 150 Service Manual

7
Models 150, 152, 162, 168
Introduction
Model 168 Specifications
Freezing Cylinder
T wo, 1.5 quart (1.4 liter).
Mix Hopper
T wo, 8 quart (7.6 liter).
Beater Motor
T wo, 0.5 hp.
Refrigeratio n Unit
T wo, approximately 3,000 btu/hr. compressors.
Refrigerant: R404A.
One, independent SHR compressor, approximately
400 btu/hr. R134a. (BTU’s may vary based on
compressor used.)
Electrical
Two dedicated connections.
Electrical
Maximum
Fuse Size
Minimum
Circ uit Ampacity
1
1
5
/
6
0
/
1
A
i
r
Left Right Left Right
115/60/1
A
ir
25 20 20 16
One dedicated connection.
Electrical
Maximum
Fuse Size
Minimum
Circ uit Ampacity
208-230/60/1 Air 20 19
This unit is manufactured in other electrical
characteristics. Refer to the Distributor Data Book for
availability. (For exact electrical information, always
refer to the data label of the unit.)
Air Cooled
Clearance: 3” (7.6 cm.) on all sides. Install the skirt
provided on the rear of the unit to prevent recirculation
of warm air.

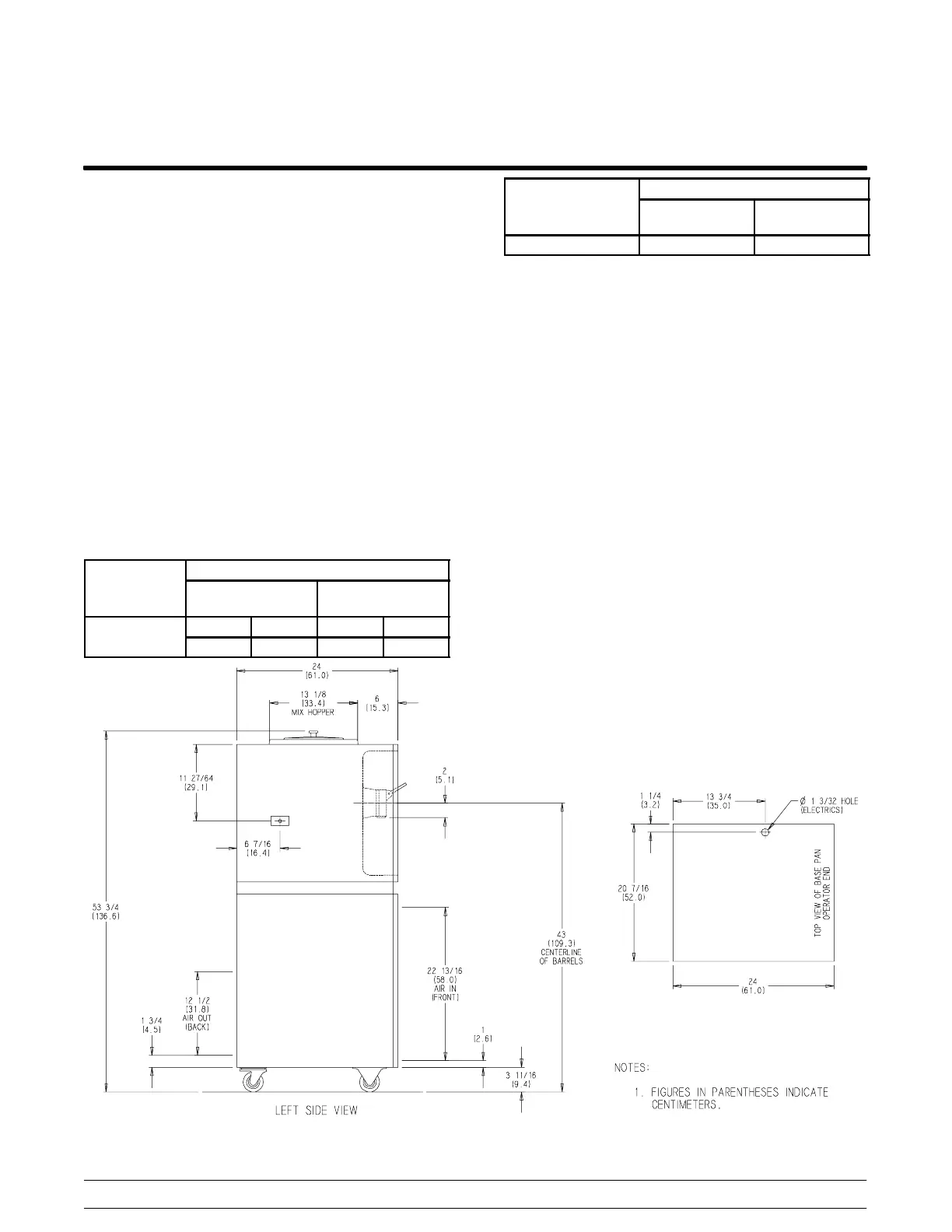

Dimensions
Width: 20-7/16” (51.9 cm.)
Depth: 24” (61.0 cm.)
Height: 53-3/4” (136.5 cm.)
Floor Clearance: 3-11/16” (9.4 cm.) mounted on
standard casters.
Approximate Weights
Net: 425 lbs. (192.8 kgs.)
Crated: 482 lbs. (218.6 kgs.)
31.4 cu. ft. (.88 cu. m.)

Taylor 150 Specifications
