4.8 BEVERAGE EQUIPMENT:
4.8.6.3 Iced Cappuccino Machine 8 Issue Date: February 21, 2008
Taylor 390 Last Modified: October 31, 2008

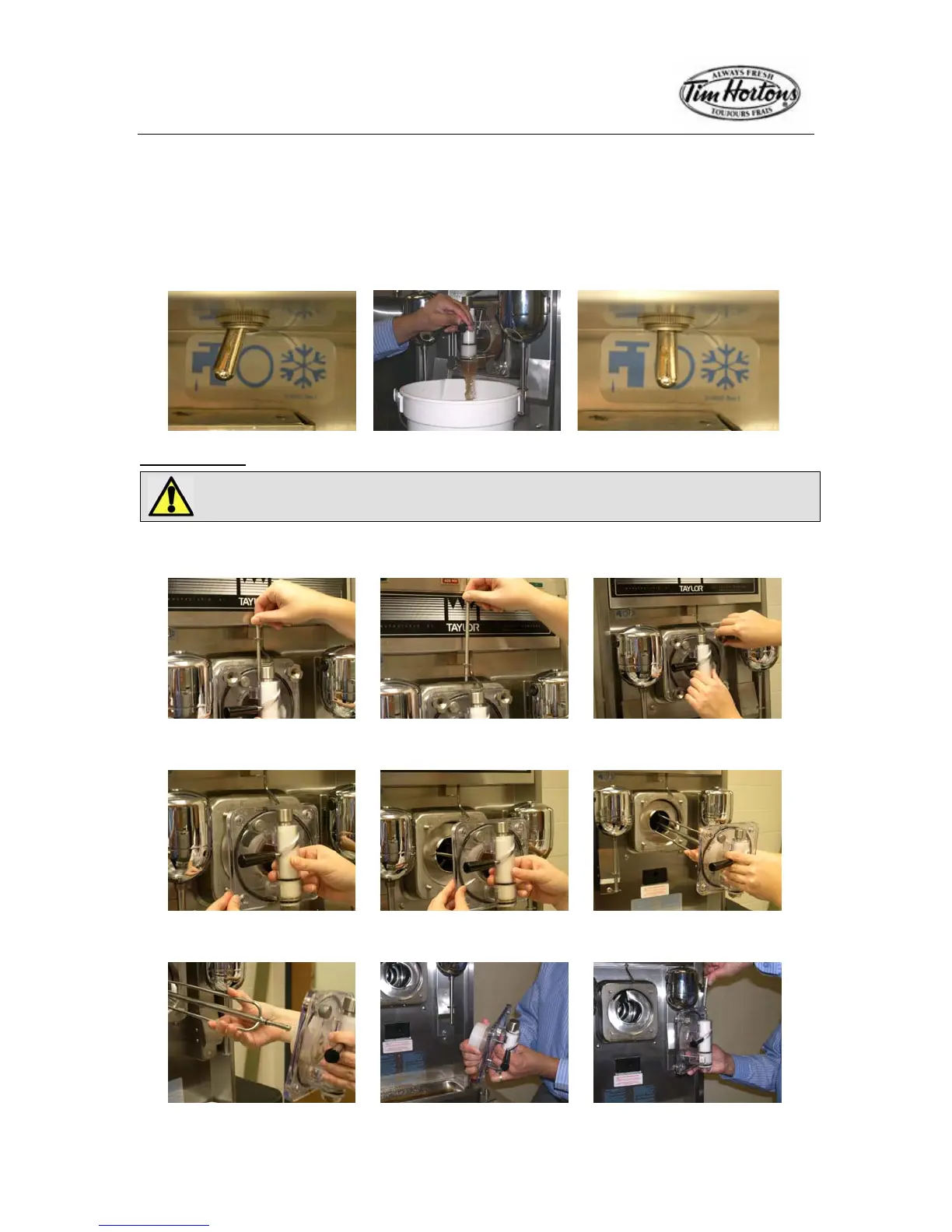

With a mix pail beneath the door spout, place the control switch in the “WASH”
position and move the draw handle to the right. Drain all the rinse water from the
freezing cylinder. When the rinse water stops flowing from the door spout, move
the draw handle to the left and place the control switch in the “OFF” position.
Repeat this procedure until the rinse water being drawn from the freezing
cylinder is clear.
Disassembly
NOTE: BE SURE THE CONTROL SWITCH IS IN THE “OFF” POSITION.
Failure to do so may cause injury from electrocution or hazardous moving parts.
5. Lockout the Iced Cappuccino Machine at the circuit breaker.
6. Carefully remove the torque arm and loosen the four stud nuts.
7. Remove the four stud nuts from the freezer door. Insert two fingers behind
the draw valve and then gently pull the freezer door forward off of the unit.
8. Remove the torque assembly from the freezing cylinder and dismantle all
parts from the freezer door. Remove the front bearing and valve handle pin.
