Taylor C001 - Dasher (Beater) and Door Assembly

OPERATOR PARTS IDENTIFICATION
4-5
Models C001 and C002
Operator Parts Identification
4

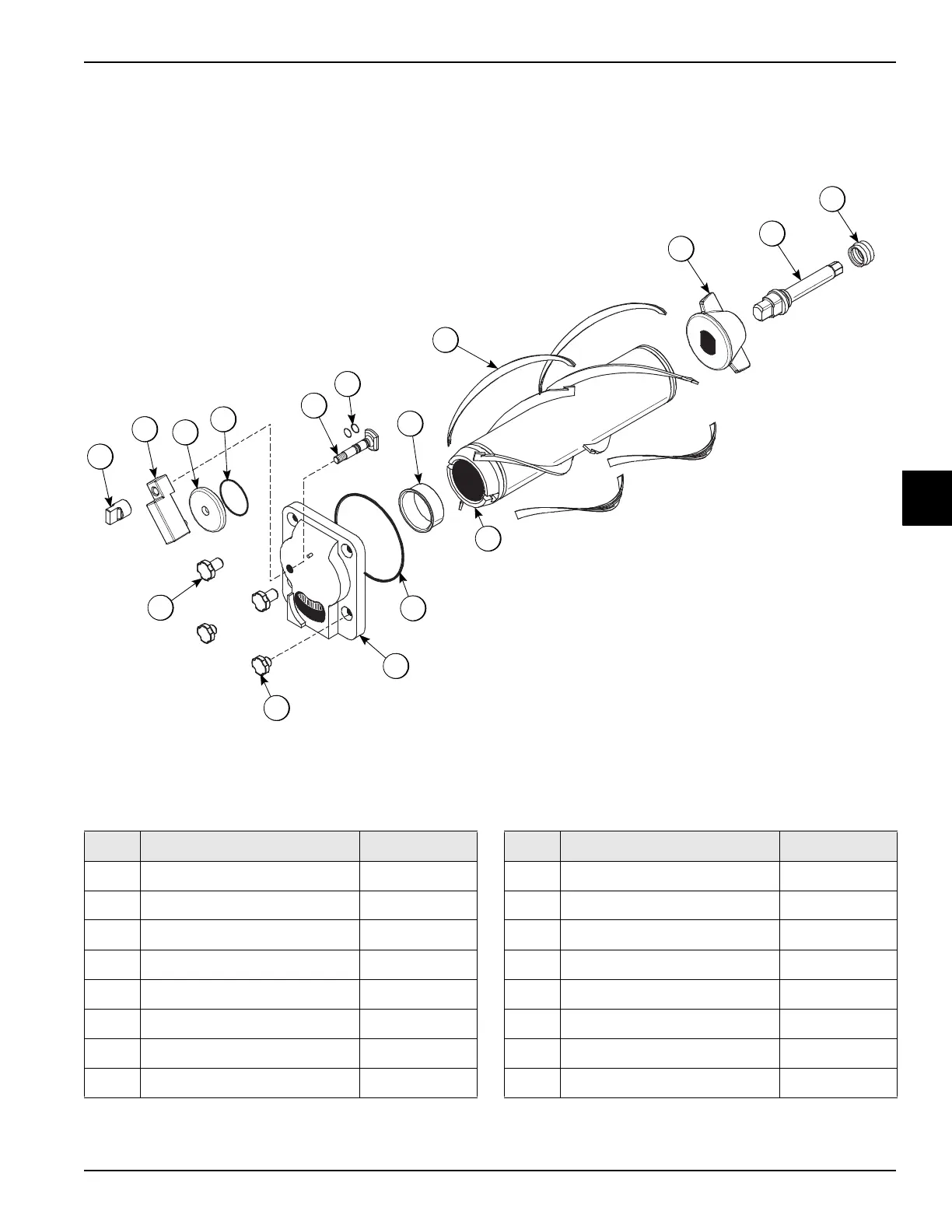

Dasher (Beater) and Door Assembly
Figure 4-3
1
2
3
4
5
6
7
8
12
13
14
15
16
9
10
11
Item Description Part No.
1 Cap-Door-Stem 055179
2 Arm-Handle 055183
3 Plate-Draw 054445
4 O-ring-2-3/4 OD X .139W-70 055182
5 Screw-Door-Stem 055180
6 O-ring-.563 OD X .070W-#013 043758
7 Bearing-Front 013116
8 Blade-Scraper 054485
Item Description Part No.
9 Baffle-Short 054481
10 Shaft-Dasher Drive 054484
11 Seal-Driveshaft 032560
12 Dasher A.-Complete X54483
13 O-ring-6 IN OD X 5 3/4 ID X 1/8 033493
14 Door-C002 X55178-SER
15 Nut-Stud 034034
16 Nut-Stud 021508
