OPERATING PROCEDURES
6-3
Models C001 and C002
Operating Procedures
6

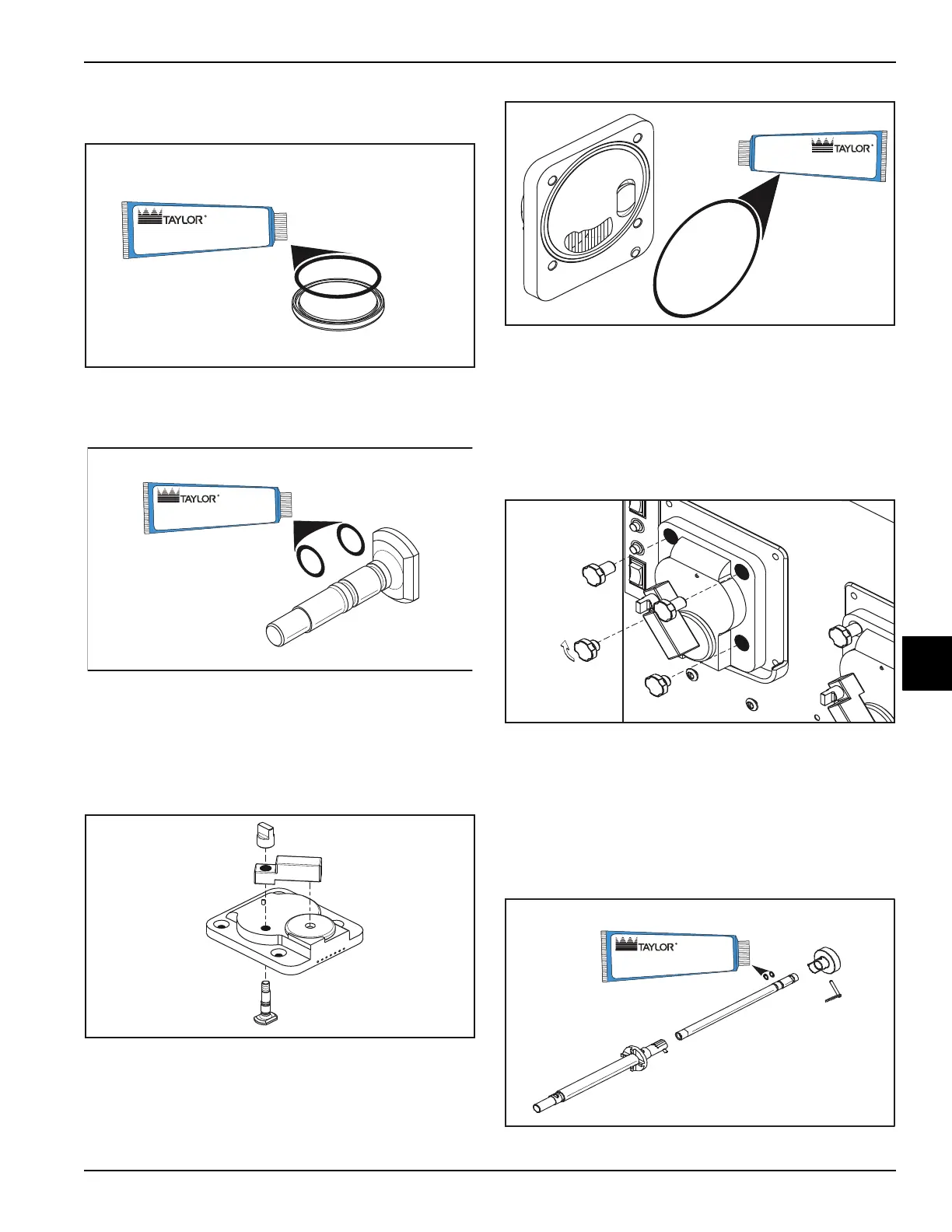

5. Assemble the freezer door. Install the draw plate 
O-ring onto the plate and lubricate.
Figure 6-8
Install the two stem screw O-rings onto the stem
screw and lubricate.
Figure 6-9
Place the stem screw through the back of the door.
With the door in a horizontal position, install the draw
plate. Align the handle with the stem screw and the
draw plate. Hand-tighten the stem cap onto the stem
screw.
Figure 6-10
Turn the door over and install the large door O-ring.
Place a small amount of lubricant on the O-ring, just
enough to hold it in place.
Figure 6-11
6. Install the freezer door. Seat the door flush with the
freezing cylinder. With the door seated on the freezer
studs, install the stud nuts (handscrews). The short
stud nuts go on the bottom, and the long stud nuts go
on top. Tighten equally in a crisscross pattern to
ensure the door is snug.
Figure 6-12
7. Assemble the flow regulator assembly. Install the two
O-rings onto the inner flow regulator. Lubricate the

O-rings. Install the knob onto the end of the inner flow
regulator and secure it with the quick release pin.
Insert the inner flow regulator into the outer flow
regulator.
Figure 6-13
10317
Apply the appropriate
Taylor approved food safe lubricant.
10329
Apply the appropriate
Taylor approved food safe lubricant.
10328
10325
Apply the appropriate
Taylor approved food safe lubricant.
10326
10737
Apply the appropriate
Taylor approved food safe lubricant.
