9. Before assembling the freezer door, check the
following for any nicks, cracks, or signs of wear: door
bearing, door gasket, draw valve, O-rings, and all
sides of the door assembly, including the inside of the
draw-valve bore. Replace any damaged parts.
10. If the parts are in good condition, place the door
gasket into the groove on the back side of the freezer
door. Slide the white plastic front bearing over the
baffle rod onto the bearing hub, making certain that
the flanged end of the bearing is resting against the
freezer door. Do not lubricate the gasket or the front
bearing.

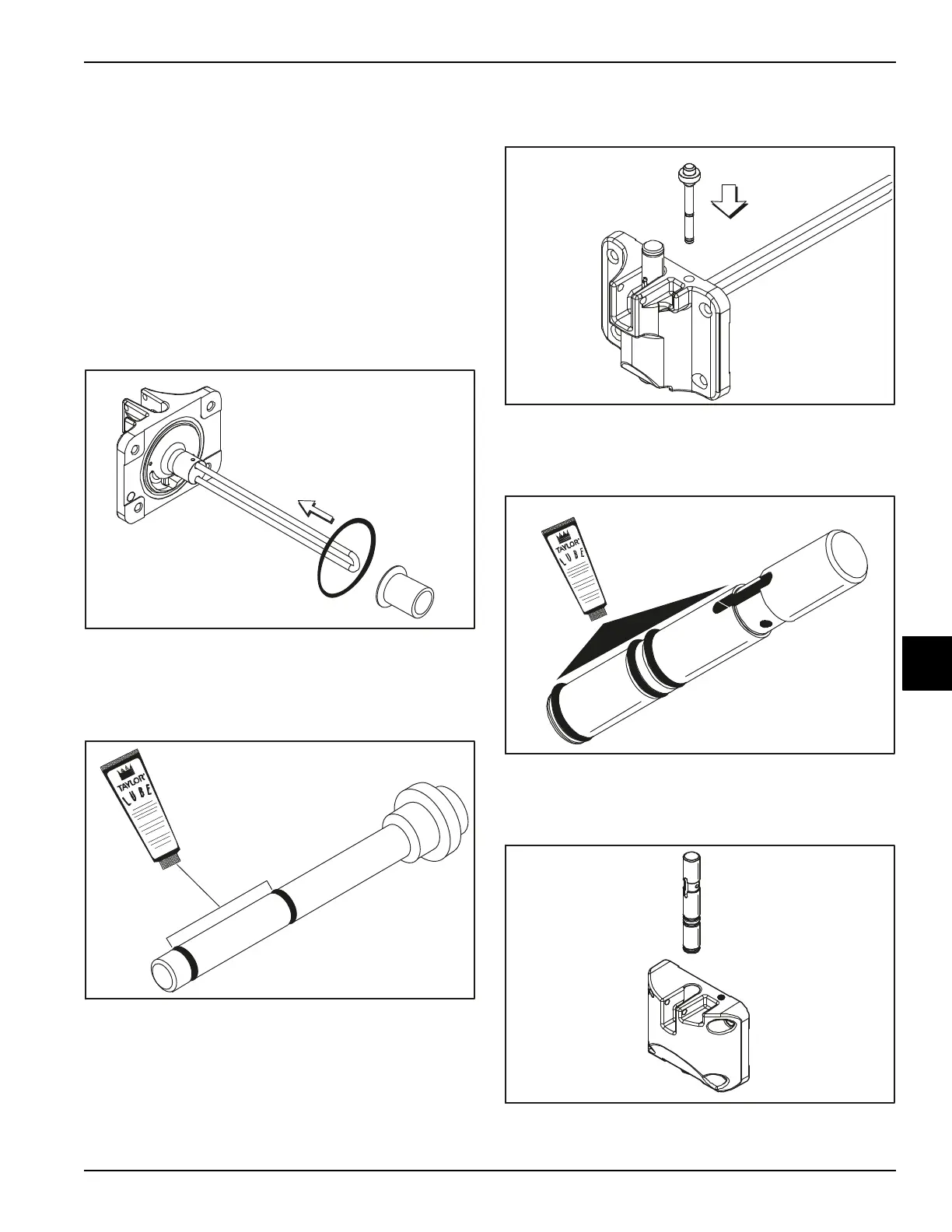

Figure 6-6
11. Slide the two O-rings into the grooves on the prime
plug. Apply an even coat of Taylor Lube to the
O-rings and shaft.
Figure 6-7
12. Insert the prime plug into the hole in the top of the
freezer door and push down.
Figure 6-8
13. Slide the three O-rings into the grooves on the draw
valve and lubricate.
Figure 6-9
14. Insert the draw valve from the top until it reaches the
bottom.
Figure 6-10
