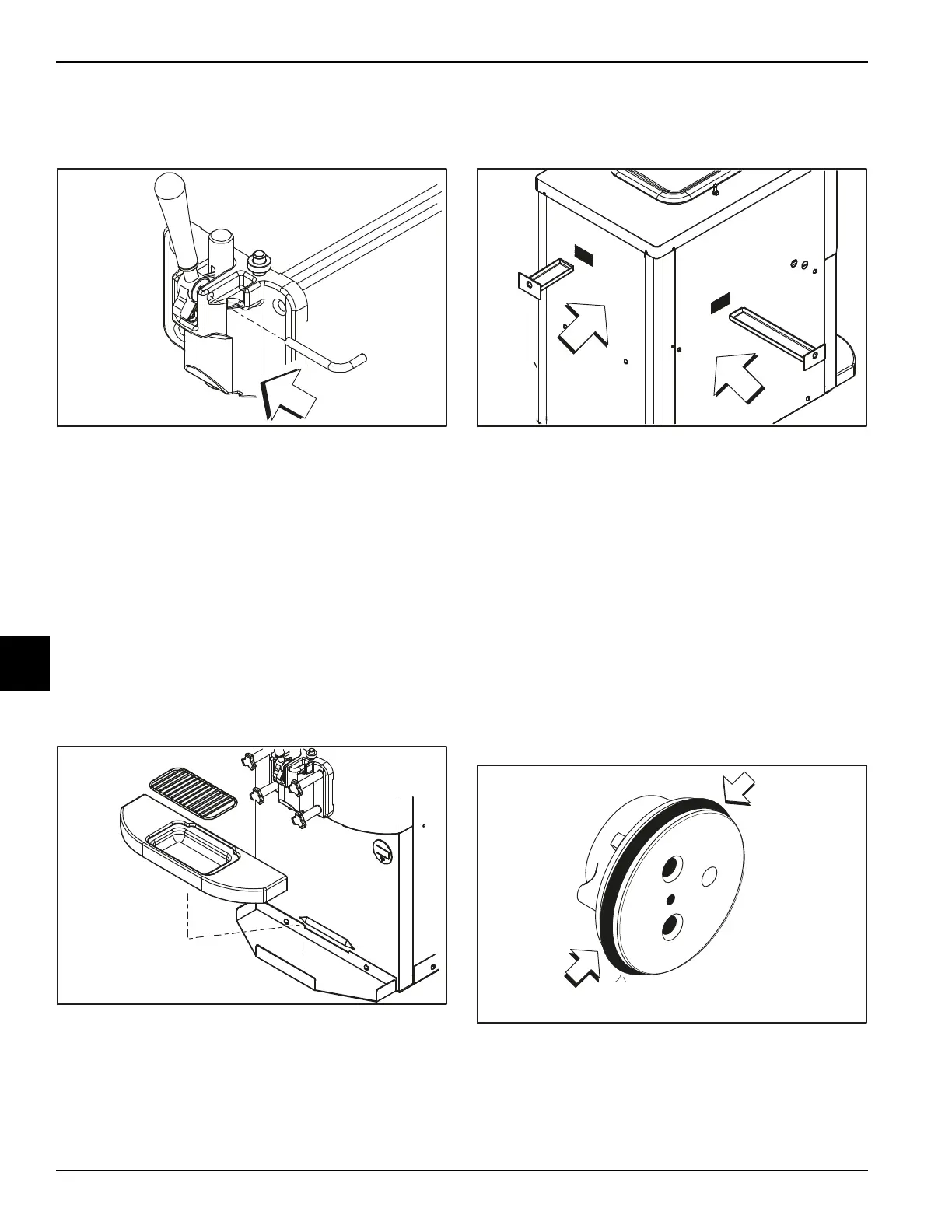

15. Install the adjustable draw handle. Slide the fork over
the bar in the slot of the draw valve. Secure it with the
pivot pin.
Figure 6-11
Note: This machine features an adjustable draw
handle to provide the best portion control. The draw
handle can be adjusted for different flow rates. See
page 5-3 for more information on adjusting this
handle.
16. Insert the baffle rod through the opening in the beater
and seat the door flush with the freezing cylinder.
With the door seated on the freezer studs, install the
handscrews. Tighten them equally in a crisscross
pattern to ensure the door is snug.
17. Install the front drip tray and the splash shield under
the door spout.
Figure 6-12
18. Slide the rear drip pan into the hole in the side panel.
Slide the pump drip pan into the hole in the back
panel.
Figure 6-13
Mix Hopper Assembly
1. Inspect the rubber and plastic pump parts. The
O-rings, check rings, and gaskets must be in 100%
good condition for the pump and machine to operate
properly. They cannot work properly if nicks, cuts, or
holes are present. Inspect the plastic pump parts for
cracks, wear, and delamination of plastic. Replace
any worn or damaged parts immediately and discard
the old parts.
2. Assemble the mix inlet assembly. Slide the O-ring
into the groove of the valve body cap. Do not
lubricate the O-ring.
Figure 6-14
