Taylor C706 Operator's Manual

OPERATING PROCEDURES
6-5
Model C706
Operating Procedures
6

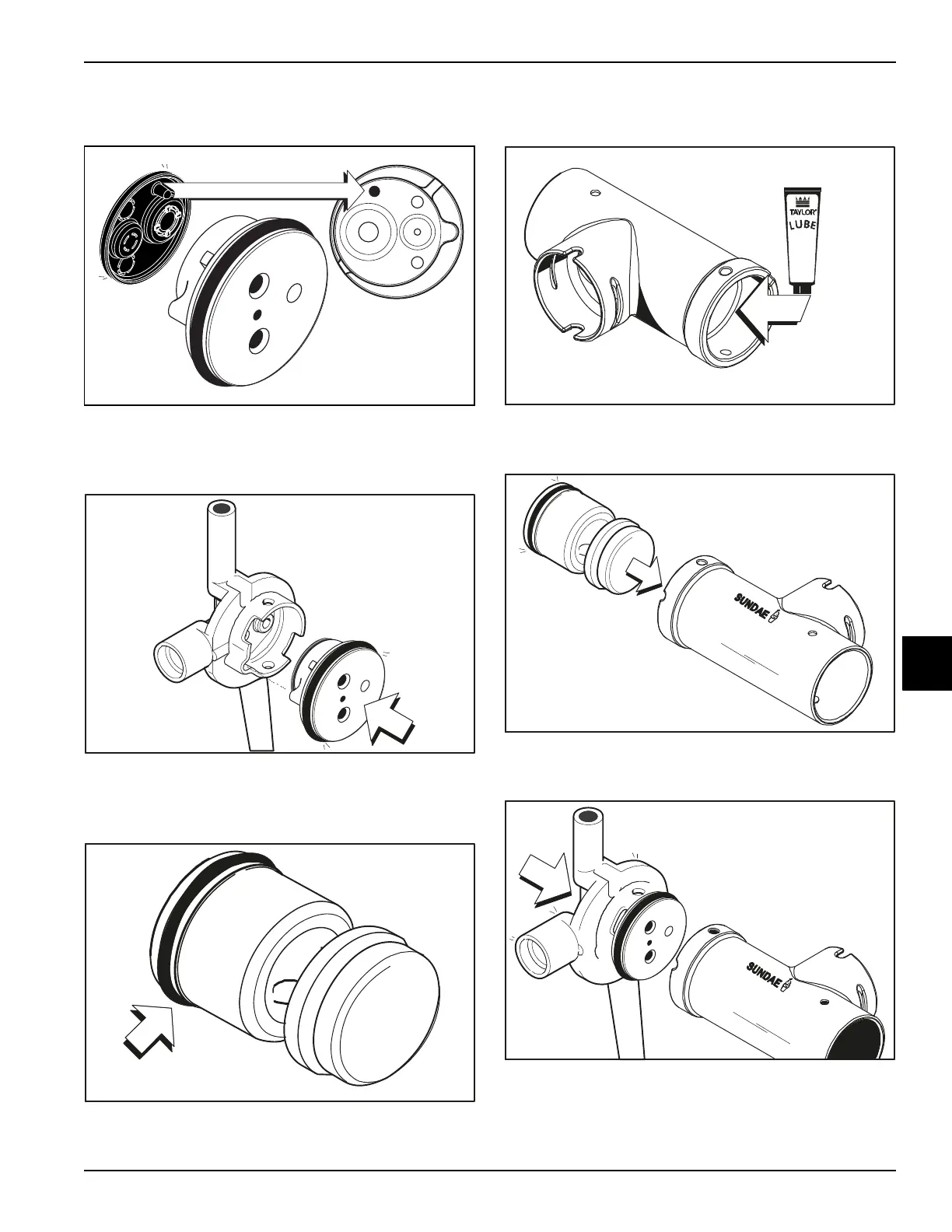

3. Slide the pump valve gasket into the holes on the
cap. Do not lubricate the gasket.
Figure 6-15
4. Insert the valve body cap into the hole in the mix inlet
adapter.
Figure 6-16
5. Assemble the piston. Slide the red O-ring into the
groove of the piston. Do not lubricate the O-ring.
Figure 6-17
6. Lightly lubricate the inside of the pump cylinder at the
bottom with a paper thin layer of lubricant.
Figure 6-18
7. Insert the piston into the bottom of the pump cylinder.
Figure 6-19
8. Insert the mix inlet assembly into the pump cylinder.
Figure 6-20
15110
15111
15117
15206
15204
15205
