Taylor C706 Original Operating Instructions

19
Model C706 Operating Procedures
Step 5

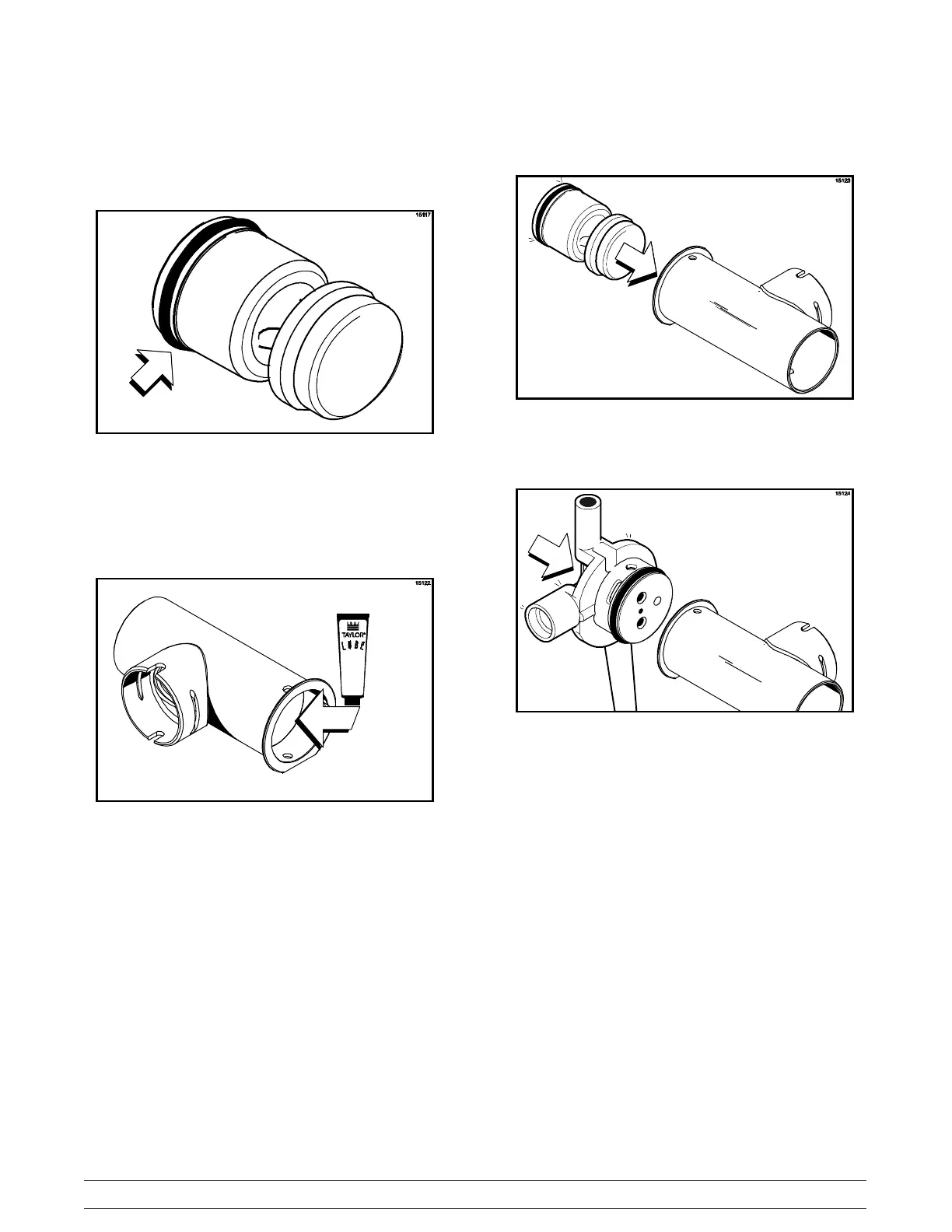

Assemble the piston. Slide the red o--ring into the
groove of the piston. DO NOT lubricate the o--ring.
Figure 21
Step 6
Lightly lubricate the inside of the pump cylinder at the
bottom with a paper thin layer of lubricant.
Figure 22
Step 7
Insert the piston into the bottom of the pump cylinder.
Figure 23
Step 8
Insert the mix inlet assembly into the pump cylinder.
Figure 24
The drive hole in the mix inlet adaptor must be visible
through the drive hole opening in the pump cylinder
and the aligning notch located at the base of the
adapter must be positioned into the notch at the
bottom of the pump cylinder .

Taylor C706 Specifications

General

Model	C706
Category	Freezer
Refrigeration System	Air Cooled
Air Cooled	Yes
Water Cooled	No
Weight	220 lbs
