Taylor C706 Original Operating Instructions

20
Model C706Operating Procedures
030206

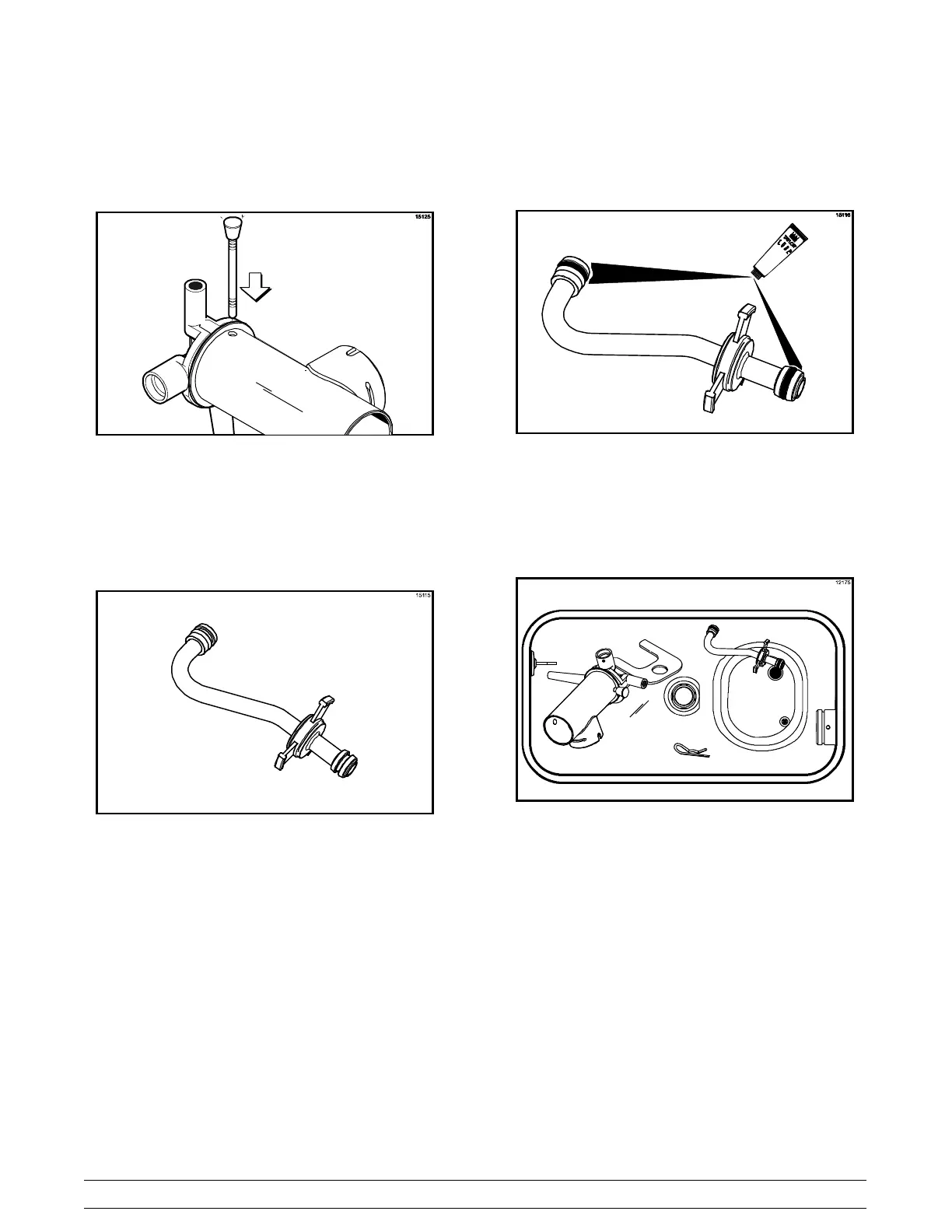

Step 9
Secure the pump parts in position by sliding the
retaining pin through the cross holes located at the
bottom of the pump cylinder .
Figure 25
Note: The head of the retaining pin should be facing
UP with the pump correctly installed.
Step 10
Assemble the feed tube assembly. Slide the valve
o--ring into the groove of the feed tube.
Figure 26
Step 11
Install one red o--ring on each end of the mix feed tube,
and thoroughly lubricate.
Figure 27
Step 12
Lay the pump assembly, pump clip, mix feed tube, and
cotter pin in the bottom of the mix hopper for sanitizing.
Figure 28

Taylor C706 Specifications

General

Model	C706
Category	Freezer
Refrigeration System	Air Cooled
Air Cooled	Yes
Water Cooled	No
Weight	220 lbs
