4.4 INSTALLATION SPACE

For adequate ventilation, it is important to leave space around where the PMDC-30

is installed. See recommended spacing dimensions below.

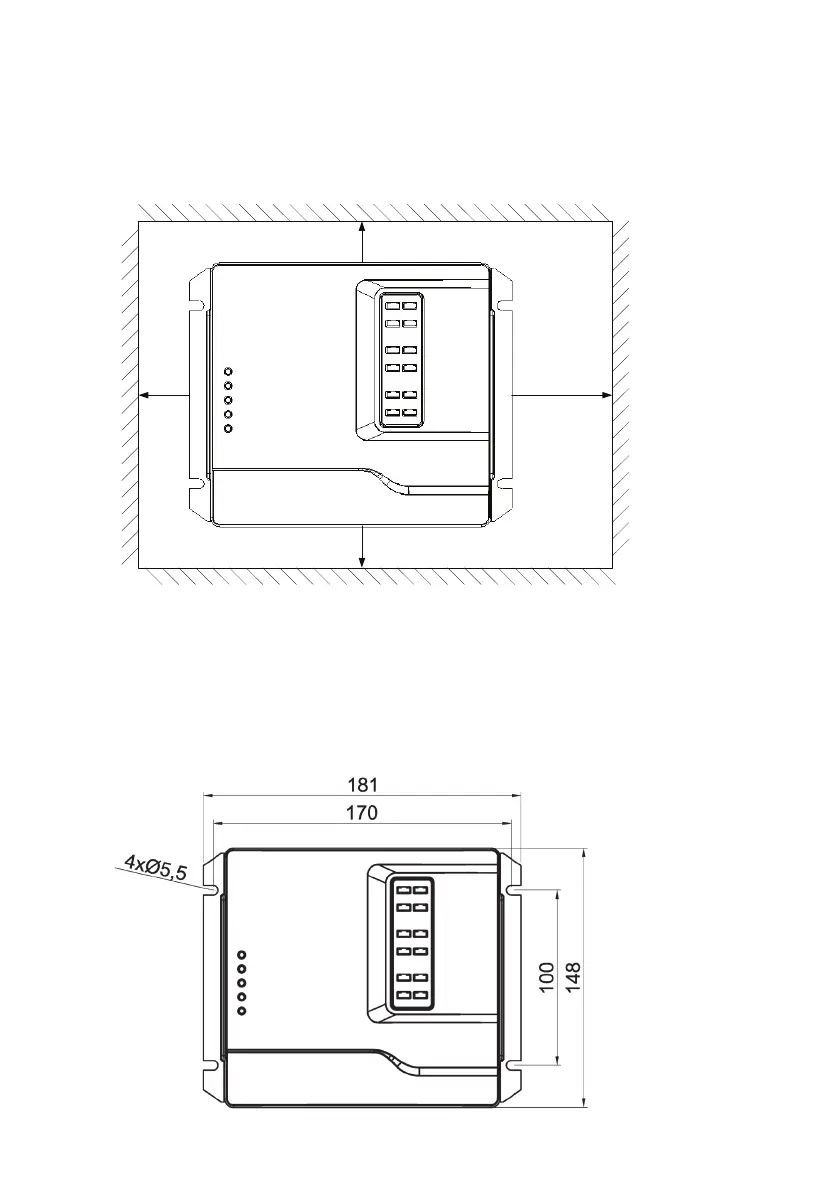

Figure 4-1: The required dimensions for ventilation

4.5 MOUNTING HOLES

Find an appropriate mounting surface, flat and rigid. Drill mounting holes per the

dimensions below.

Figure 4-2: Drill holes for mounting

≥ 50mm

≥ 50mm ≥ 100mm

≥ 50mm
