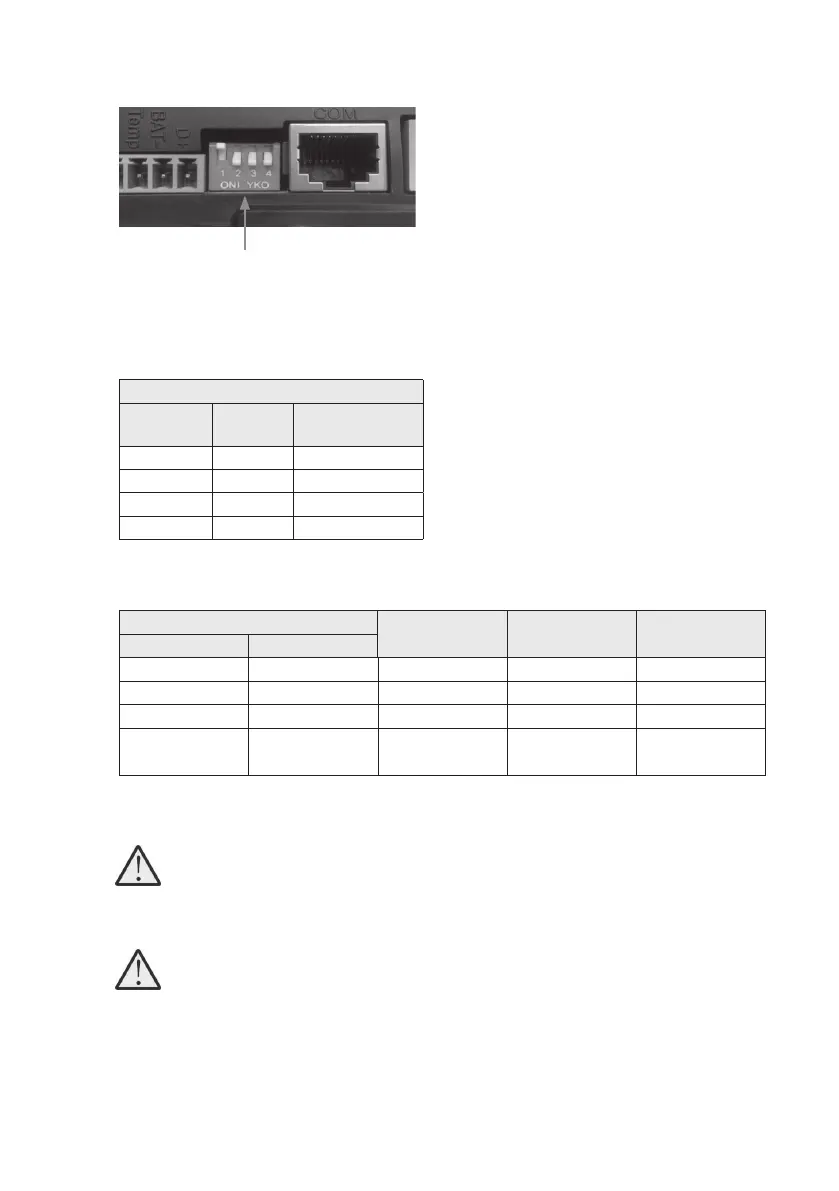

4.6 DIP SWITCH SETTING
Table 4-1: Dip switch setting for output current
Output Current settings
Pin 1 Pin 2 Charge current
(Max Amps)
OFF OFF 30
OFF ON 25 (Default)
ON OFF 20
ON ON 15
Table 4-2: Dip switch setting for battery type
Dip switch for battery type setting Battery type Absorption
charging voltage
Float charging
voltage
Pin 3 Pin 4
OFF OFF AGM 14.6V 13.5V
OFF ON GEL 14.2V 13.8V
ON OFF LFP 14.4V 13.5V
ON ON
WET
(Default setting)
14.8V 13.8V
Do not connect PMDC-30 to AC Mains
Please ensure the connections are tight and have correct polarity.
Damages caused by improper installation may void warranty.
Dip Switches
Set output current and battery type
UP = OFF DOWN = ON
