South
V1&V2:

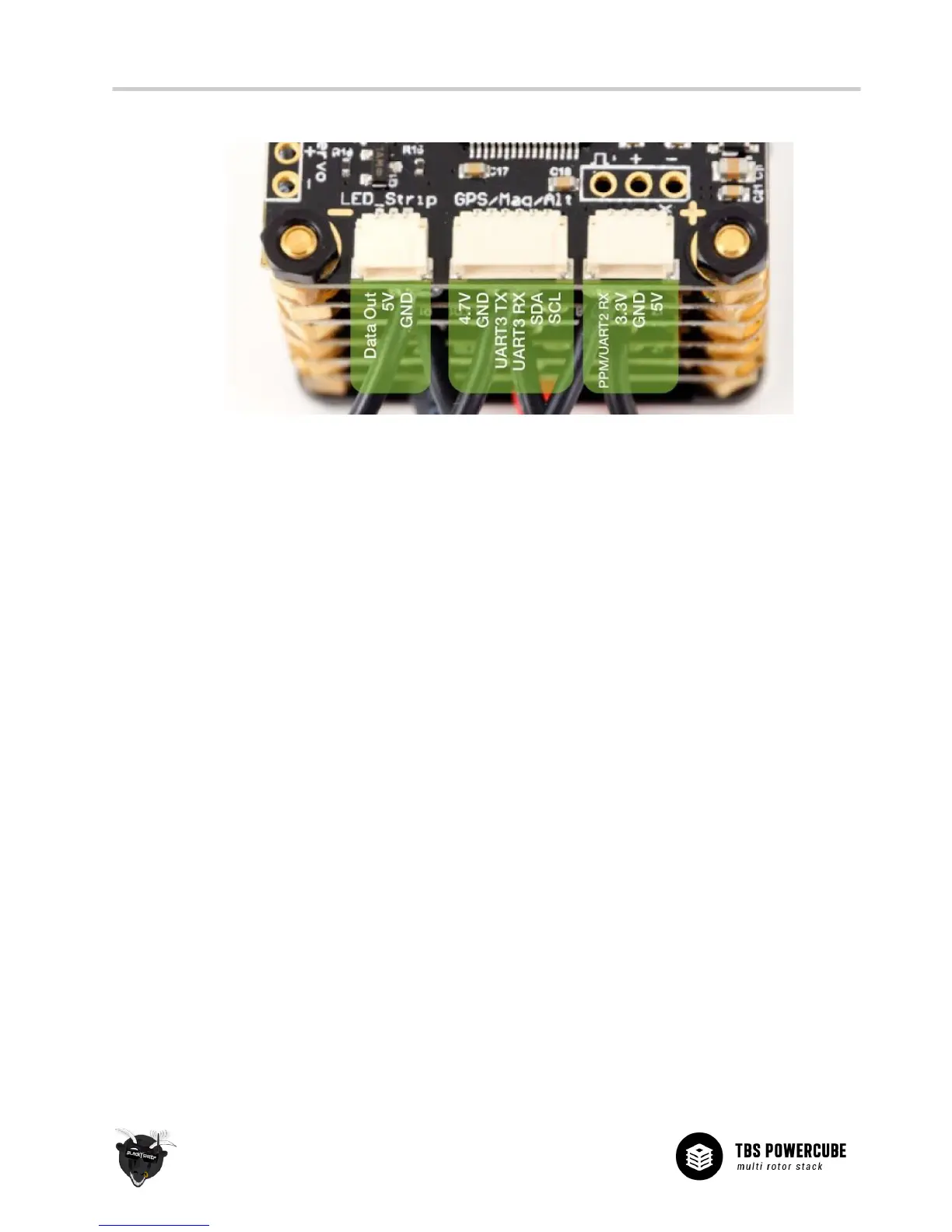

• LED_Strip - For directly connecting WS2812B, WS2812, and WS2811 based RGB LED strips
Regulated 5V PWR provided to connector over internal BUS, no additional voltage regulator
required!
Any WS2812B LED boards with up to 32 LEDs should work
Pin-out from left: Data Out / 5V / GND
Signal-pin connects to DIN on WS28xx pads
• GPS/Mag/Alt (UART3) - Connector for external GPS, magnetometer and altitude sensors - or other
uses, can be configured in Cleanflight/BetaFlight.
Pin-out from left: 5V / GND / UART3 TX / UART3 RX / SDA / SCL
• RC_RX - Two receiver signal connectors, supports: PPM, S.BUS, SPEKT, DSM, DSMX
Pin-out from left: PPM, UART2 RX / 3.3V / GND / 5V
Additional 2.54mm pitch soldering pads available for direct soldering receiver signal
