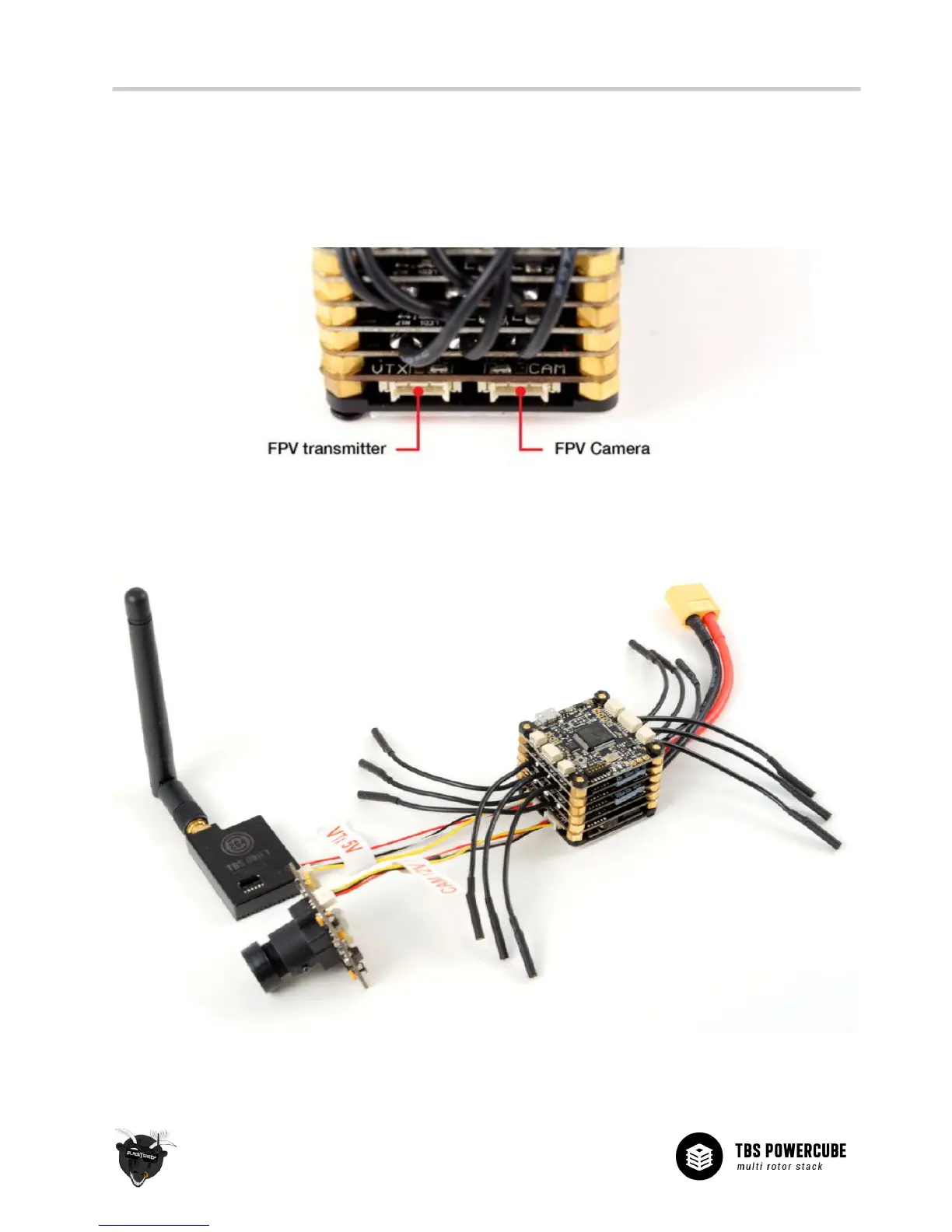

Connecting FPV camera and transmitter
There are two ports on the PDB board which are for the FPV camera and video transmitter. Any TBS camera
and transmitter is directly supported and plugs into the connector (Molex Picoblade) - be sure the output
voltage is right for the equipment you are going to connect.
By looking at the side of the PDB layer, you can see “VTX” and “CAM” marked on the other side of the board.
Plug the FPV transmitter and camera into their corresponding port.
