13
ROUTINGS
The Routing Menu sets the Routing of the
two Engines. When the Routing menu is
entered, the arrow in the Routing display
icon is lit. Routings are stored with presets,
but it is also possible to keep a locked
“global routing” meaning that preset
routings do not take effect. This is set in
the Utility menu.
Basic operation
• Press the ROUTING key to enter the
Routing display.
• Use the CONTROL wheel to select routing.
The ENTER key is now blinking.
• Press ENTER to activate the selected
routing.

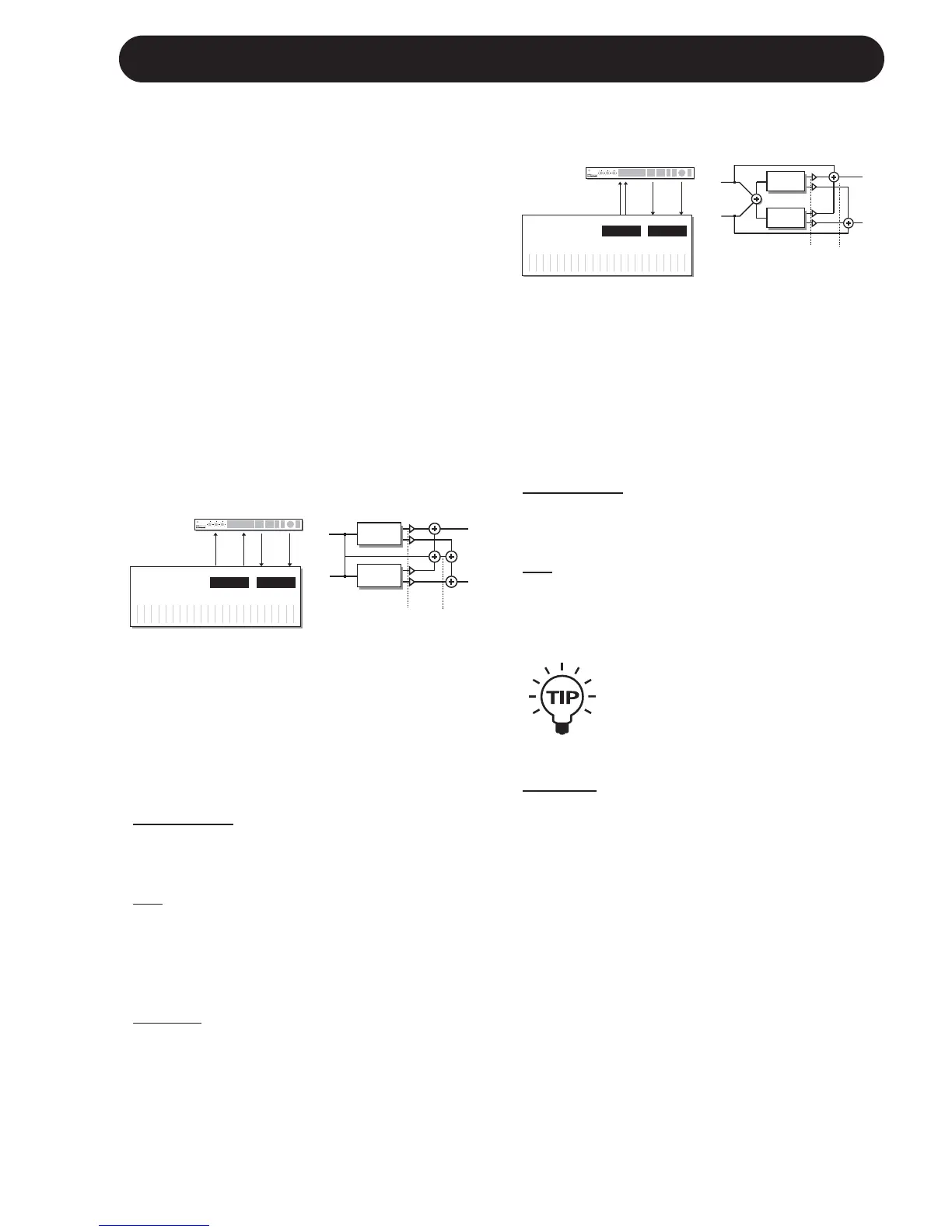

The Parallel routing sums left/right Inputs, and
both Engines are fed with the exact same
signal. As illustrated the unprocessed dry
signal is mixed with the processed signal into
two channels via the Mix parameter.
EFFECT
BAL
Controls the balance between the two Engine’s
FX Outputs.
MIX
Controls the amount of dry signal passed
around the two Engines. Dry signal is passed
in stereo.
The Parallel routing is perfect when
you want to add two different
effects to the same source.
Example:
You need a Chorus and a Reverb on the same
guitar track. Select the Chorus in Engine 1, the
Reverb in Engine 2 and the Parallel Routing.
Now you have your two effects side by side,
not influencing each other.
Dual S/R - Dual Send/Return
Parallel
This is the routing to use if you wish to use the
M•ONE as two independent effects
processors. Left Input is sent to Engine 1 and
right Input is sent to Engine 2. The four FX
Outputs are summed to two channels.
EFFECT
BAL
Controls the balance between the two Engine’s
FX Outputs.
MIX
Controls the amount of dry signal passed
around the two Engines. Dry signal is passed
in mono. Set MIX fully clockwise when using
the M•ONE in a send/return setup.
Example:
Feed the two M•ONE Engines with signal from
e.g. two separate Aux.’s from your mixer.
Connect the M•ONE L/R Output to a stereo
L/R return on your mixer.
You are now using the two Engines in the
M•ONE as separate stereo effects with a
common 2 channel Output.
