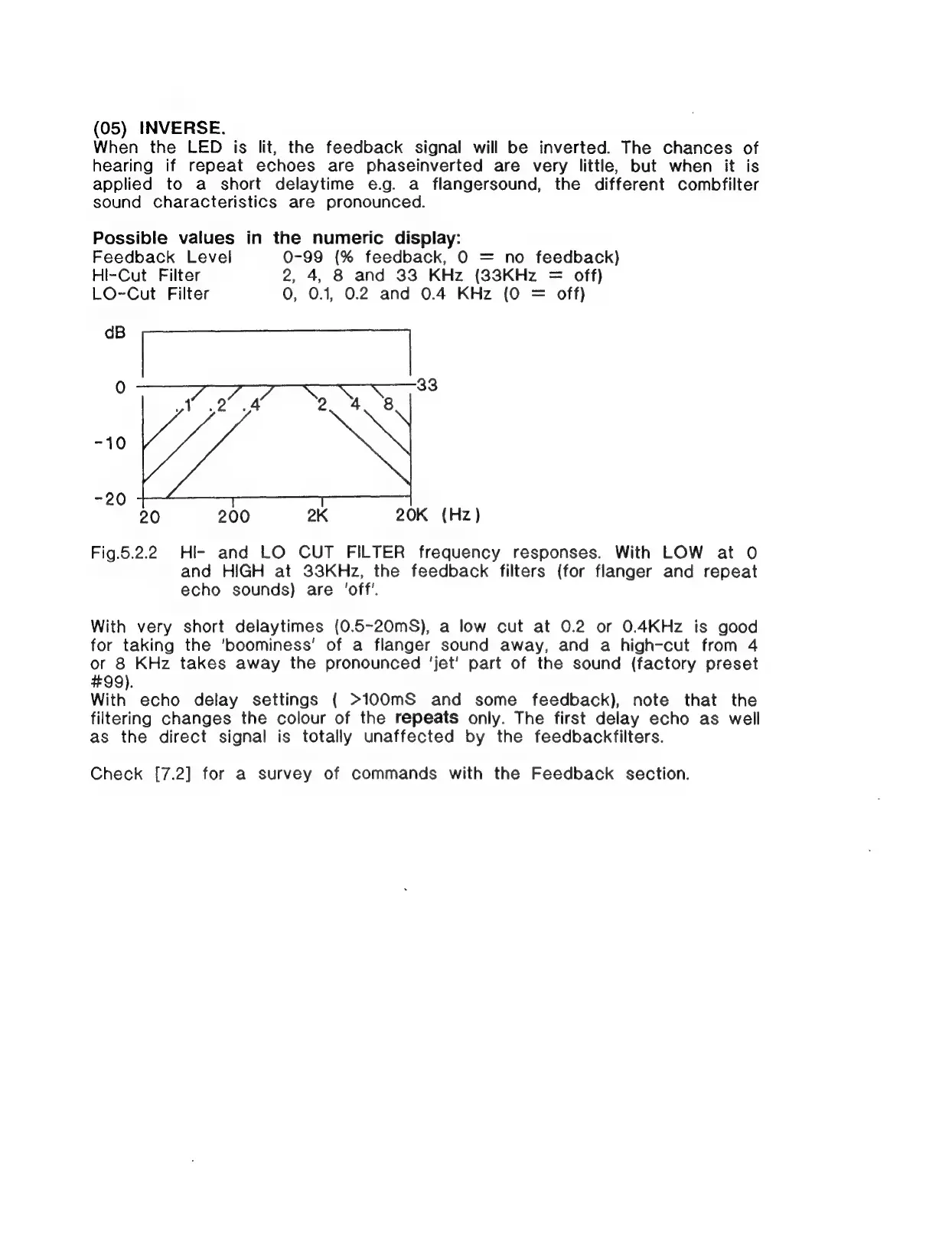

(05)
INVERSE.
When
the
LED
is
lit,
the
feedback
signal
will
be
inverted.
The
chances
of
hearing
if
repeat
echoes
are
phaseinverted
are
very
little,
but
when
it
is
applied
to
a
short
delaytime
e.g.
a
flangersound,
the
different
combfilter
sound
characteristics
are
pronounced.
Possible
values
in
the
numeric
display:
Feedback
Level
0-99
(%
feedback,
0
=
no
feedback)
Hi-Cut
Filter
2,
4,
8
and
33
KHz
(83KHz
=
off)
LO-Cut
Filter
O,
0.1,
0.2
and
0.4
KHz
(0
=
off)
“fo
CT
er
ee
Na
yl
.2
.4
2.
4.
8
-10
-20
20
200
2K
20K
(Hz)
Fig.5.2.2
HI-
and
LO
CUT
FILTER
frequency
responses.
With
LOW
at
O
and
HIGH
at
33KHz,
the
feedback
filters
(for
flanger
and
repeat
echo
sounds)
are
‘off’.
With
very
short
delaytimes
(0.5-20mS),
a
low
cut
at
0.2
or
0.4KHz
is
good
for
taking
the
‘'boominess’
of
a
flanger
sound
away,
and
a
high-cut
from
4
or
8
KHz
takes
away
the
pronounced
‘jet’
part
of
the
sound
(factory
preset
#99).
With
echo
delay
settings
{
>100mS
and
some
feedback),
note
that
the
filtering
changes
the
colour
of
the
repeats
only.
The
first
delay
echo
as
well
as
the
direct
signal
is
totally
unaffected
by
the
feedbackfilters.
Check
[7.2]
for
a
survey
of
commands
with
the
Feedback
section.
