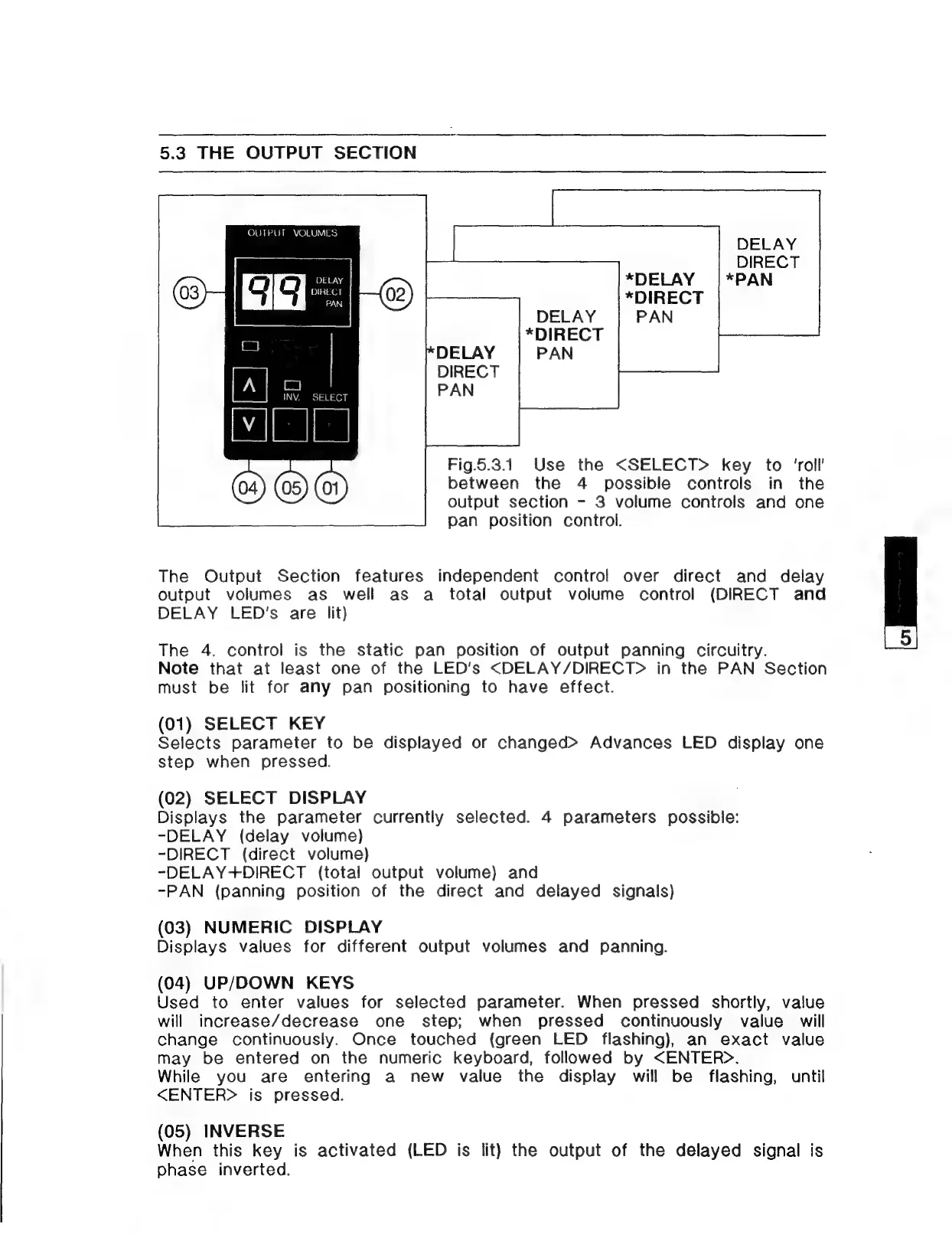

5.3 THE OUTPUT SECTION
OUTPUT VOLUMES
DELAY
DIRECT
PAN
Fig.5.3.1 Use the <SELECT> key to ‘roll’
between the 4 possible controls in the
output section - 3 volume controls and one
pan position control.
The Output Section features independent control over direct and delay
output volumes as well as a total output volume control (DIRECT and
DELAY LED's are lit)
The 4. control is the static pan position of output panning circuitry.
Note that at least one of the LED's <DELAY/DIRECT> in the PAN Section
must be lit for any pan positioning to have effect.
(01) SELECT KEY
Selects parameter to be displayed or changed> Advances LED display one
step when pressed.
(02) SELECT DISPLAY
Displays the parameter currently selected. 4 parameters possible:
-DELAY (delay volume)
-DIRECT (direct volume)
-DELAY+DIRECT (total output volume) and
-PAN (panning position of the direct and delayed signals)
(03) NUMERIC DISPLAY
Displays values for different output volumes and panning.
(04) UP/DOWN KEYS
Used to enter values for selected parameter. When pressed shortly, value
will increase/decrease one step; when pressed continuously value will
change continuously. Once touched (green LED flashing), an exact value
may be entered on the numeric keyboard, followed by <ENTER>.
While you are entering a new value the display will be flashing, until
<ENTER> is pressed.
(05) INVERSE
When this key is activated (LED is lit) the output of the delayed signal is
phase inverted.
