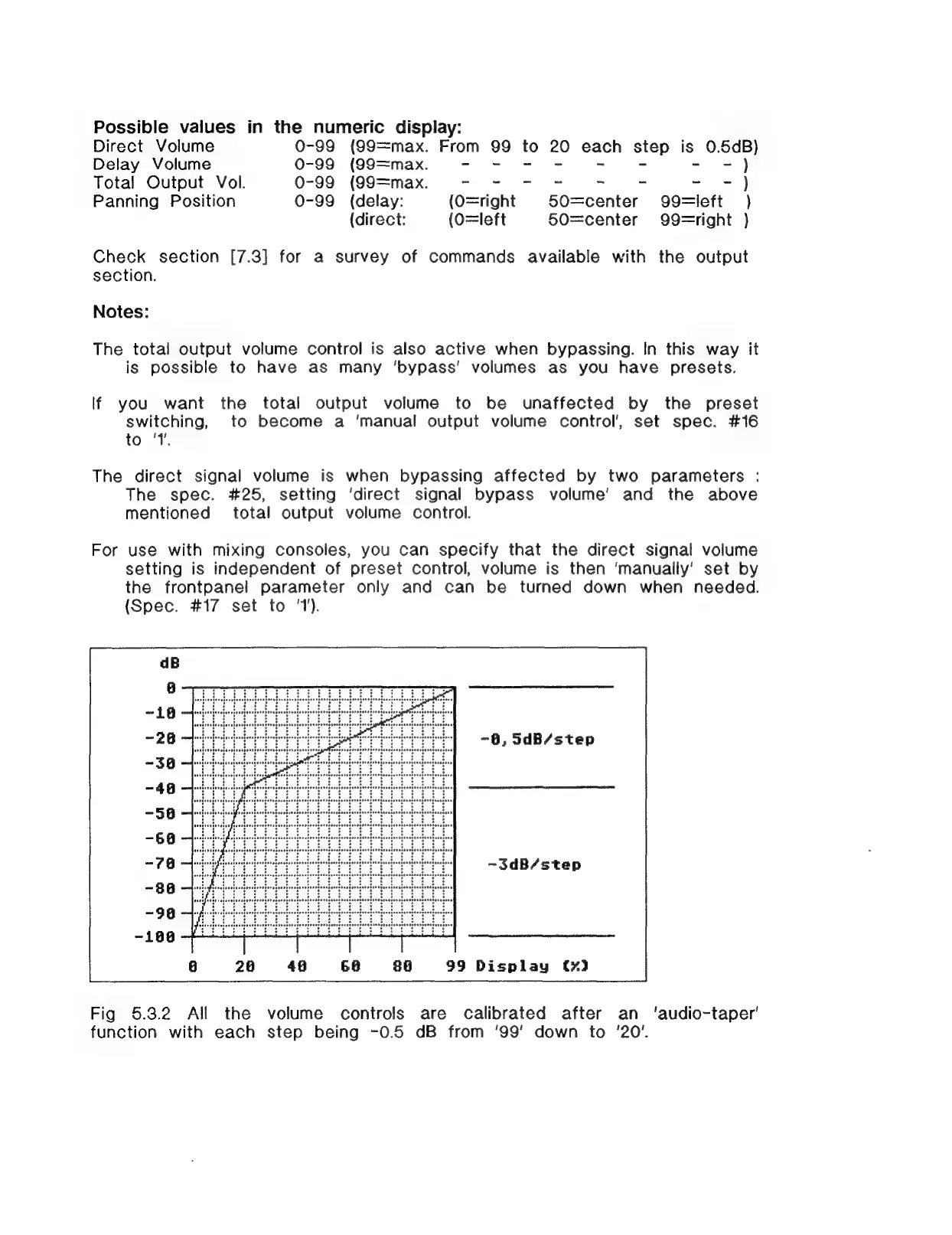

Possible values in the numeric display:
Direct Volume 0-99 (99=max. From 99 to 20 each step is 0.6dB)
Delay Volume 0-99 (99=max. TS - )
Total Output Vol. 0-99 (99=max. - me AS - - - )
Panning Position 0-99 (delay: (o=fant 50=center 99=ieft )
(direct: (O=left 50=center 99=right )
Check section [7.3] for a survey of Commands available with the output
section.
Notes:
The total output volume control is also active when bypassing. In this way it
is possible to have as many ‘bypass’ volumes as you have presets.
If you want the total output volume to be unaffected by the preset
switching, to become a ‘manual output volume control’, set spec. #16
to ‘T.
The direct signal volume is when bypassing affected by two parameters :
The spec. #25, setting ‘direct signal bypass volume’ and the above
mentioned total output volume control.
For use with mixing consoles, you can specify that the direct signal volume
setting is independent of preset control, volume is then ‘manually’ set by
the frontpanel parameter only and can be turned down when needed.
(Spec. #17 set to ‘1.
-8, 5dB/step
-3dB/step
86 99 Display (x)
Fig 5.3.2 All the volume controls are calibrated after an ‘audio-taper'
function with each step being -0.5 dB from ‘99’ down to '20’.
