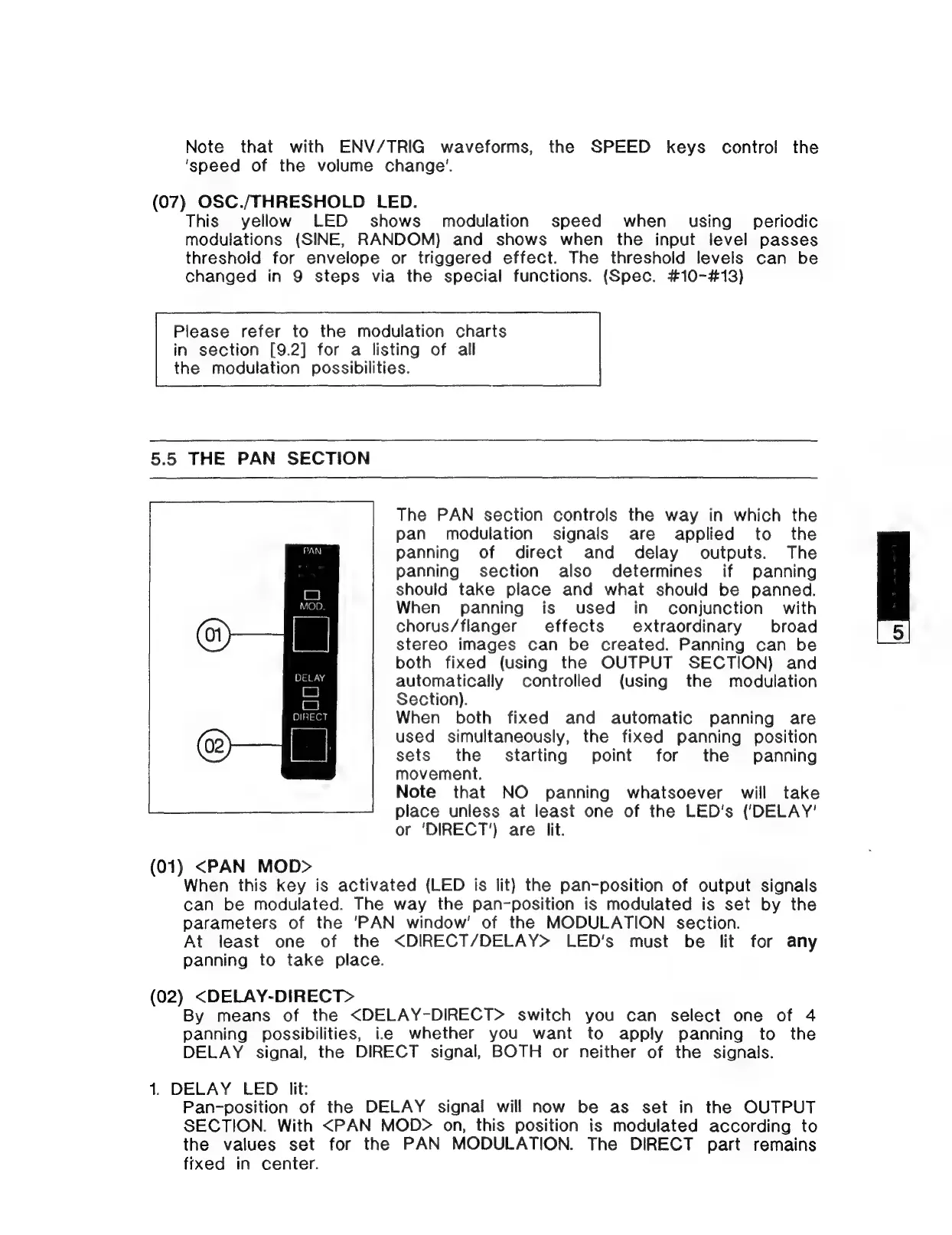

Note that with ENV/TRIG waveforms, the SPEED keys control the
‘speed of the volume change’.
(07) OSC./THRESHOLD LED.
This yellow LED shows modulation speed when using periodic
modulations (SINE, RANDOM) and shows when the input level passes
threshold for envelope or triggered effect. The threshold levels can be
changed in 9 steps via the special functions. (Spec. #10-#13)
Please refer to the modulation charts
in section [9.2] for a listing of all
the modulation possibilities.
5.5 THE PAN SECTION
The PAN section controls the way in which the
pan modulation signals are applied to the
panning of direct and delay outputs. The
panning section also determines if panning
oO should take place and what should be panned.
MOD. When panning is used in conjunction with
|| chorus/flanger effects extraordinary broad
stereo images can be created. Panning can be
both fixed (using the OUTPUT SECTION) and
DELAY automatically controlled (using the modulation
S Section).
DIRECT When both fixed and automatic panning are
|| used simultaneously, the fixed panning position
sets the starting point for the panning
movement.
Note that NO panning whatsoever will take
place unless at least one of the LED's ('DELAY'
or 'DIRECT') are lit.
(01) <PAN MOD>
When this key is activated (LED is lit) the pan-position of output signals
can be modulated. The way the pan-position is modulated is set by the
parameters of the 'PAN window’ of the MODULATION section.
At least one of the <DIRECT/DELAY> LED's must be lit for any
panning to take place.
(02) <DELAY-DIRECT>
By means of the <DELAY-DIRECT> switch you can select one of 4
panning possibilities, ìe whether you want to apply panning to the
DELAY signal, the DIRECT signal, BOTH or neither of the signals.
1. DELAY LED lit:
Pan-position of the DELAY signal will now be as set in the OUTPUT
SECTION. With <PAN MOD> on, this position is modulated according to
the values set for the PAN MODULATION. The DIRECT part remains
fixed in center.
