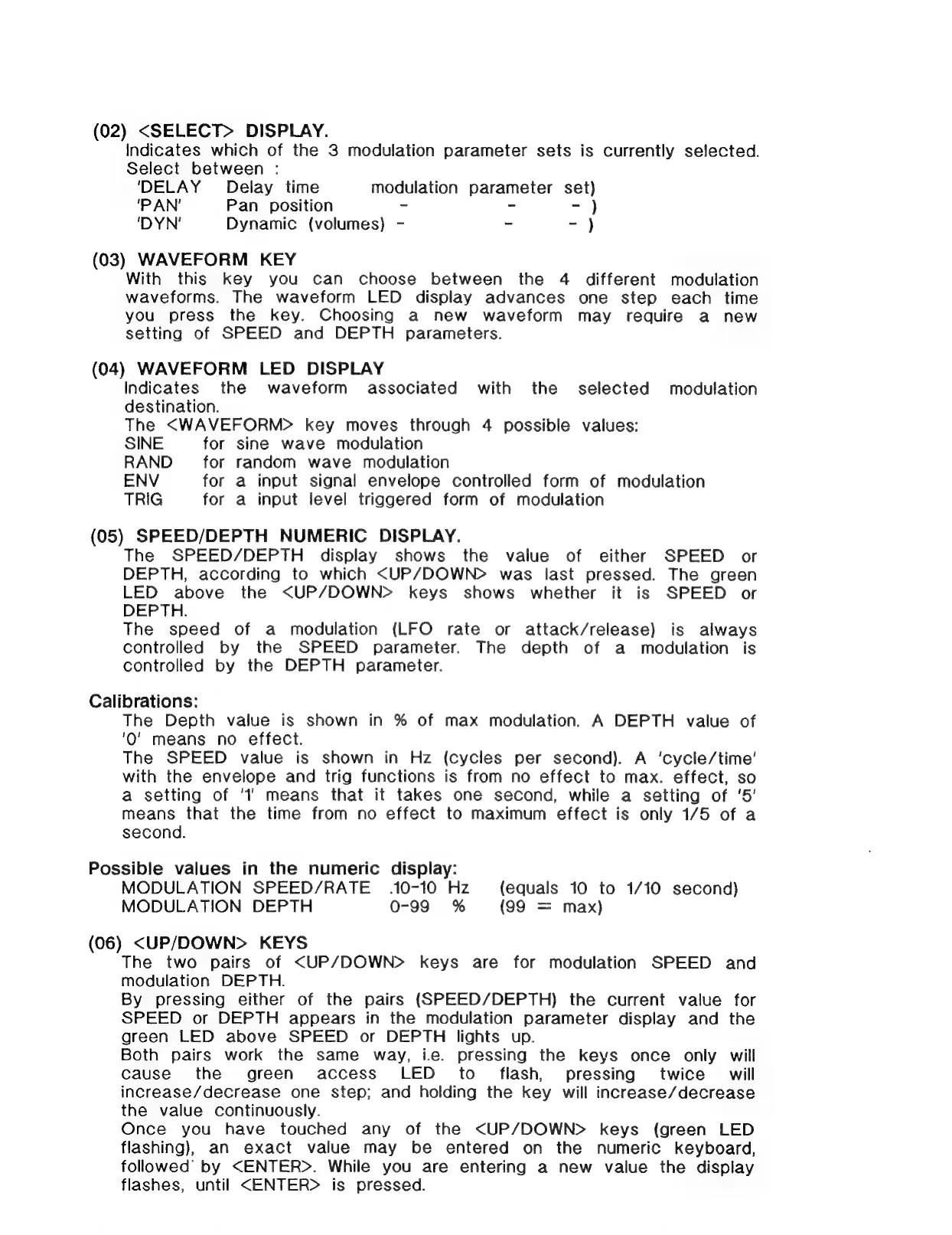

(02)
<SELECT>
DISPLAY.
Indicates
which
of
the
3
modulation
parameter
sets
is
currently
selected.
Select
between
:
‘DELAY
Delay
time
modulation
parameter
set)
'PAN'
Pan
position
z
- -
)
'DYN'
Dynamic
(volumes)
-
-
=)
(03)
WAVEFORM
KEY
With
this
key
you
can
choose
between
the
4
different
modulation
waveforms.
The
waveform
LED
display
advances
one
step
each
time
you
press
the
key.
Choosing
a
new
waveform
may
require
a
new
setting
of
SPEED
and
DEPTH
parameters.
(04)
WAVEFORM
LED
DISPLAY
Indicates
the
waveform
associated
with
the
selected
modulation
destination.
The
<WAVEFORM>
key
moves
through
4
possible
values:
SINE
for
sine
wave
modulation
RAND
for
random
wave
modulation
ENV
for
a
input
signal
envelope
controlled
form
of
modulation
TRIG
for
a
input
level
triggered
form
of
modulation
(05)
SPEED/DEPTH
NUMERIC
DISPLAY.
The
SPEED/DEPTH
display
shows
the
value
of
either
SPEED
or
DEPTH,
according
to
which
<UP/DOWN>
was
last
pressed.
The
green
LED
above
the
<UP/DOWN>
keys
shows
whether
it
is
SPEED
or
DEPTH.
The
speed
of
a
modulation
(LFO
rate
or
attack/release)
is
always
controlled
by
the
SPEED
parameter.
The
depth
of
a
modulation
is
controlled
by
the
DEPTH
parameter.
Calibrations:
The
Depth
value
is
shown
in
%
of
max
modulation.
A
DEPTH
value
of
‘O'
means
no
effect.
The
SPEED
value
is
shown
in
Hz
(cycles
per
second).
A
‘cycle/time’'
with
the
envelope
and
trig
functions
is
from
no
effect
to
max.
effect,
so
a
setting
of
‘1’
means
that
it
takes
one
second,
while
a
setting
of
'5'
means
that
the
time
from
no
effect
to
maximum
effect
is
only
1/5
of
a
second.
Possible
values
in
the
numeric
display:
MODULATION
SPEED/RATE
.10-10
Hz
(equals
10
to
1/10
second)
MODULATION
DEPTH
0-99
%
(99
=
max)
(06)
<UP/DOWN>
KEYS
The
two
pairs
of
<UP/DOWN>
keys
are
for
modulation
SPEED
and
modulation
DEPTH.
By
pressing
either
of
the
pairs
(SPEED/DEPTH)
the
current
value
for
SPEED
or
DEPTH
appears
in
the
modulation
parameter
display
and
the
green
LED
above
SPEED
or
DEPTH
lights
up.
Both
pairs
work
the
same
way,
i.e.
pressing
the
keys
once
only
will
cause
the
green
access
LED
to
flash,
pressing
twice
will
increase/decrease
one
step;
and
holding
the
key
will
increase/decrease
the
value
continuously.
Once
you
have
touched
any
of
the
<UP/DOWN>
keys
(green
LED
flashing),
an
exact
value
may
be
entered
on
the
numeric
keyboard,
followed
by
<ENTER>.
While
you
are
entering
a
new
value
the
display
flashes,
until
<ENTER>
is
pressed.
