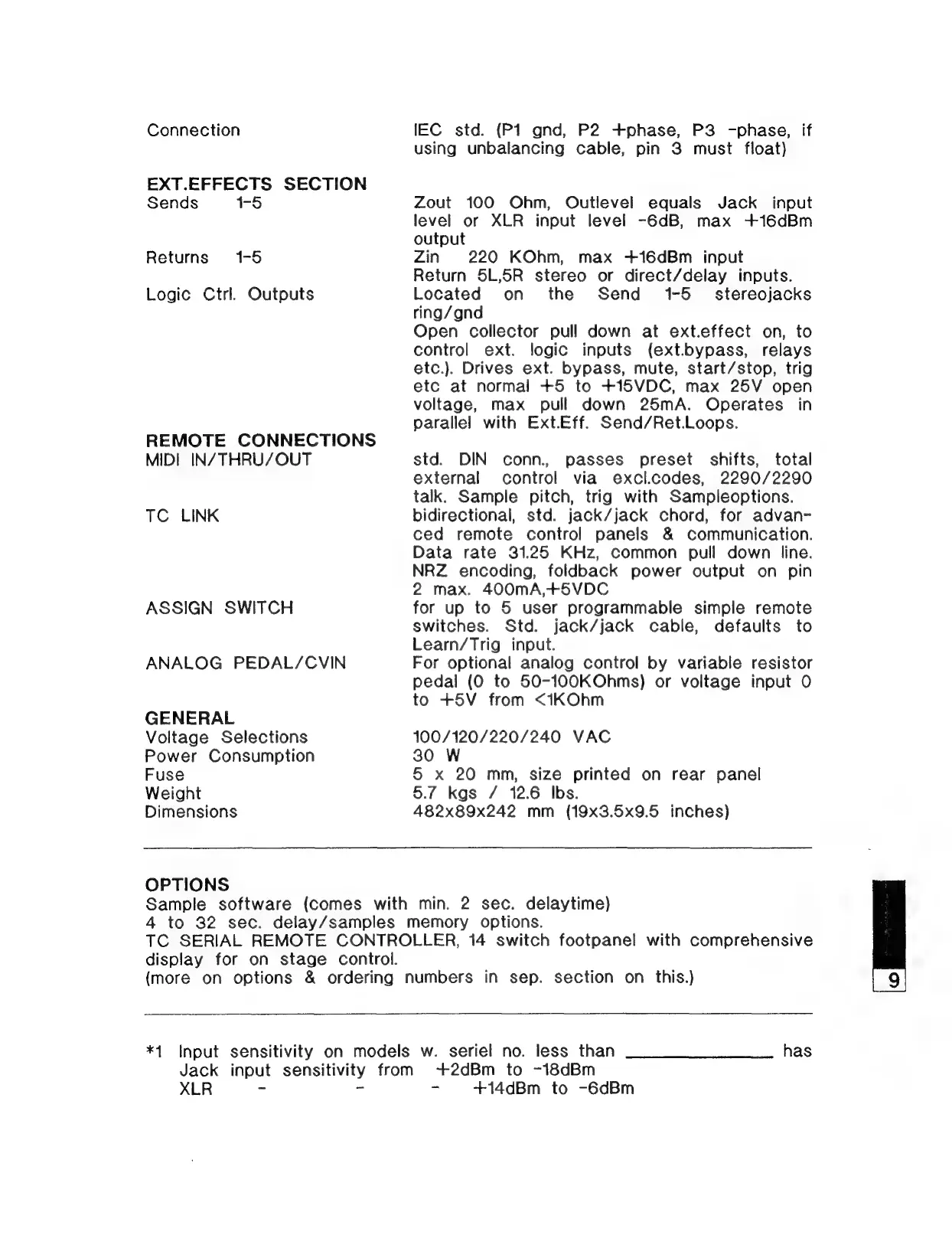

Connection
EXT.EFFECTS SECTION
Sends 1-5
Returns 1-5
Logic Ctrl. Outputs
REMOTE CONNECTIONS
MIDI IN/THRU/OUT
TC LINK
ASSIGN SWITCH
ANALOG PEDAL/CVIN
GENERAL
Voltage Selections
Power Consumption
Fuse
Weight
Dimensions
OPTIONS
IEC std. (P1 gnd, P2 +phase, P3 -phase, if
using unbalancing cable, pin 3 must float)
Zout 100 Ohm, Outlevel equals Jack input
level or XLR input level -6dB, max +16dBm
output
Zin 220 KOhm, max +16dBm input
Return 5L,5R stereo or direct/delay inputs.
Located on the Send 1-5 — stereojacks
ring/gnd
Open collector pull down at ext.effect on, to
control ext. logic inputs (ext.bypass, relays
etc.). Drives ext. bypass, mute, start/stop, trig
etc at normal +5 to +15VDC, max 25V open
voltage, max pull down 25mA. Operates in
parallel with Ext.Eff. Send/Ret.Loops.
std. DIN conn., passes preset shifts, total
external control via excl.codes, 2290/2290
talk. Sample pitch, trig with Sampleoptions.
bidirectional, std. jack/jack chord, for advan-
ced remote control panels & communication.
Data rate 31.25 KHz, common pull down line.
NRZ encoding, foldback power output on pin
2 max. 400mA,+5VDC
for up to 5 user programmable simple remote
switches. Std. jack/jack cable, defaults to
Learn/Trig input.
For optional analog control by variable resistor
pedal (O to 50-100KOhms) or voltage input O
to +5V from <iKOhm
100/120/220/240 VAC
30 W
5 x 20 mm, size printed on rear panel
5.7 kgs / 12.6 Ibs.
482x89x242 mm (19x3.5x9.5 inches)
Sample software (comes with min. 2 sec. delaytime)
4 to 32 sec. delay/samples memory options.
TC SERIAL REMOTE CONTROLLER, 14 switch footpanel with comprehensive
display for on stage control.
(more on options & ordering numbers in sep. section on this.)
*1 Input sensitivity on models w. seriel no. less than has
Jack input sensitivity from +2dBm to -18dBm
XLR z
z +14dBm to -6dBm
