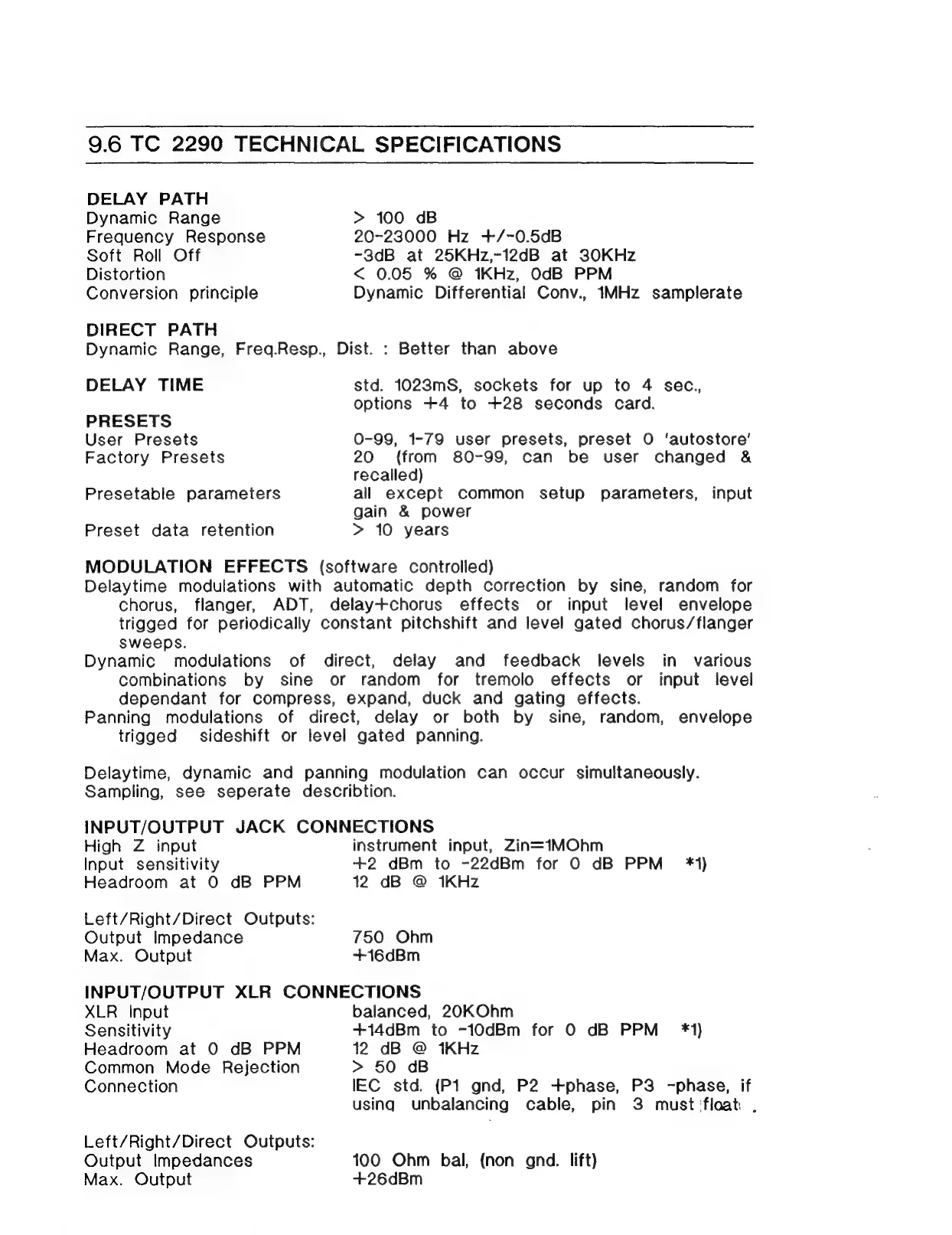

9.6 TC 2290 TECHNICAL SPECIFICATIONS
DELAY PATH
Dynamic Range > 100 dB
Frequency Response 20-23000 Hz +/-0.5dB
Soft Roll Off -3dB at 25KHz,-12dB at 30KHz
Distortion < 0.05 % @ 1KHz, OdB PPM
Conversion principle Dynamic Differential Conv., MHz samplerate
DIRECT PATH
Dynamic Range, Freq.Resp., Dist. : Better than above
DELAY TIME std. 1023mS, sockets for up to 4 sec,
options +4 to +28 seconds card.
PRESETS
User Presets 0-99, 1-79 user presets, preset O ‘autostore'
Factory Presets 20 (from 80-99, can be user changed &
recalled)
Presetable parameters all except common setup parameters, input
gain & power
Preset data retention > 10 years
MODULATION EFFECTS (software controlled)
Delaytime modulations with automatic depth correction by sine, random for
chorus, flanger, ADT, delayt+chorus effects or input level envelope
trigged for periodically constant pitchshift and level gated chorus/flanger
sweeps.
Dynamic modulations of direct, delay and feedback levels in various
combinations by sine or random for tremolo effects or input level
dependant for compress, expand, duck and gating effects.
Panning modulations of direct, delay or both by sine, random, envelope
trigged sideshift or level gated panning.
Delaytime, dynamic and panning modulation can occur simultaneously.
Sampling, see seperate describtion.
INPUT/OUTPUT JACK CONNECTIONS
High Z input instrument input, Zin=iMOhm
Input sensitivity +2 dBm to -22dBm for 0 dB PPM *1)
Headroom at O dB PPM 12 dB @ 1KHz
Left/Right/Direct Outputs:
Output Impedance 750 Ohm
Max. Output +16dBm
INPUT/OUTPUT XLR CONNECTIONS
XLR Input balanced, 20KOhm
Sensitivity +14dBm to -10dBm for 0 dB PPM *¥1)
Headroom at O dB PPM 12 dB @ 1KHz
Common Mode Rejection > 50 dB
Connection IEC std. (P1 gnd, P2 +phase, P3 -phase, if
using unbalancing cable, pin 3 must ‘float: .
Left/Right/Direct Outputs:
Output Impedances 100 Ohm bal, (non gnd. lift)
Max. Output +26dBm
