IM-995
Installation, Operation & Maintenance Manual
22

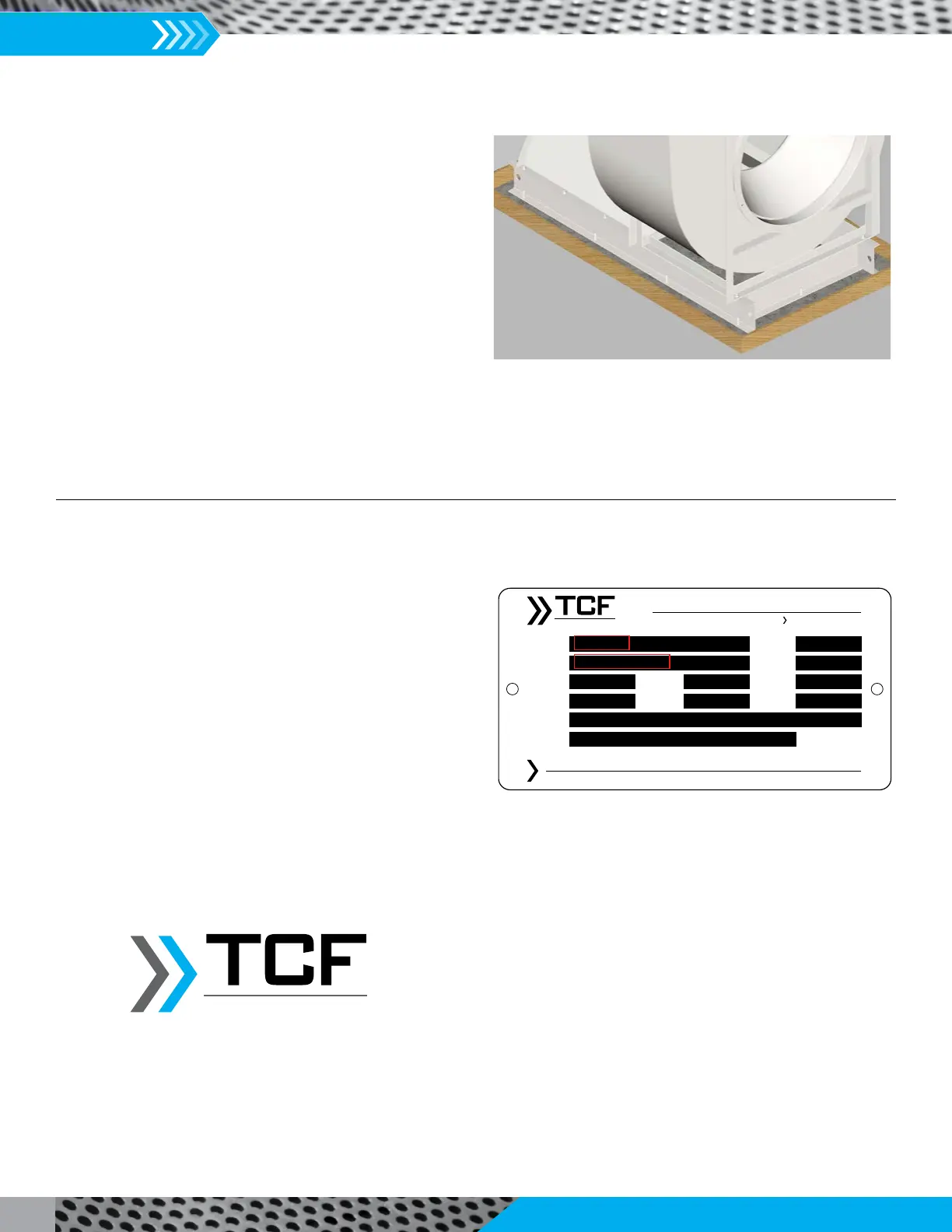

Grouting
Grouting is the final installation step. If Twin City Fan & Blower
service is purchased, grouting must be delayed until after the
Twin City Fan & Blower inspection and vibration check. Check all
shims before grouting to make sure that the fan is resting evenly
on all points with anchor bolts secured to hold the shim. Back
off leveling nuts if used. Use forms with sufficient space allowed
for working the grout. The concrete foundation should be clean
and well moistened before pouring grout. Use a commercial
grade nonshrinking grout and be especially sure when pouring
grout that the anchor bolt sleeves are filled. Prior to grouting,
grout as a form in the low point, which is able to wick/drain out
the excess moisture. Refer to the Foundations and Supporting
Structures section in the installation manual for a detail of a
proper foundation, grout allowance and anchor bolt sleeves.
Serial Number & Fan Type
The serial number and fan type can be found on our permanent
nameplate of the fan.
Twin City Fan
Twin City Fan & Blower
Minneapolis, MN www.tcf.com
Twin City Fan
Parts & Service
888-444-4823 | fieldservice@tcf.com | parts@tcf.com
model
ser. #
volts hz
class
tag
hp phase
arr.
size
encl.
09-265399-1-1
BAE-SW
222
3
3
