TCF IM-995 - Exploded Views; Impeller Nomenclature

Installation, Operation & Maintenance Manual
IM-995
3
Inlet Funnel
Impeller
Housing
Pedestal
Inlet Collar
Sheave/Pulley
Shaft
Bearings
Motor Slide
Base
Motor
Belt
Outlet Flange
Access Hole For
Mounting Bolts

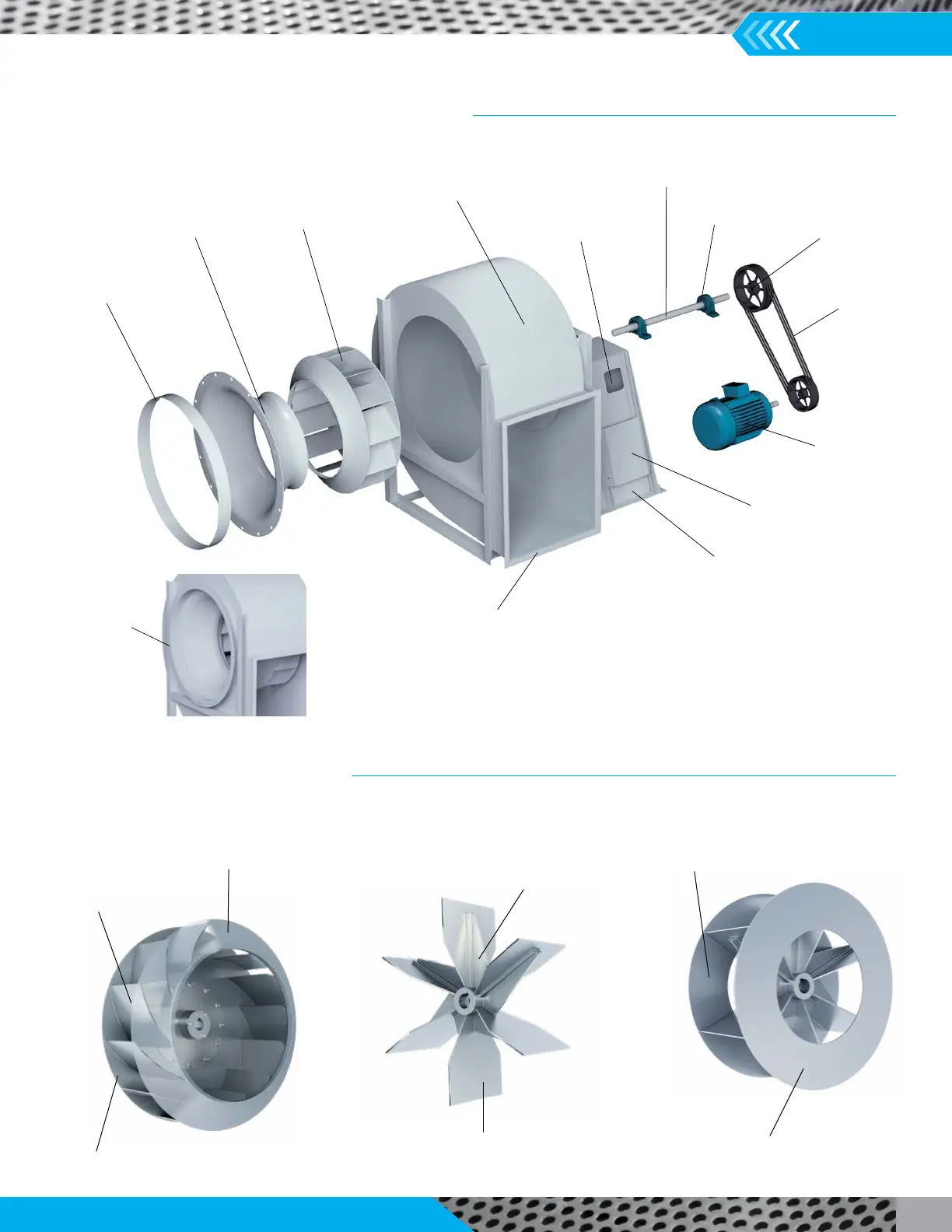

Exploded View - Centrifugal Fans
Flanged
Inlet
Impeller Front Plate
(End Ring, Shroud)
Back Plate
Blade
Support Gusset
(Spider)
Back Plate
(End Ring/RIM)
Front Plate
(End Ring/RIM)
Blade
Impeller Nomenclature
