Colour Television Chassis: M123A
44

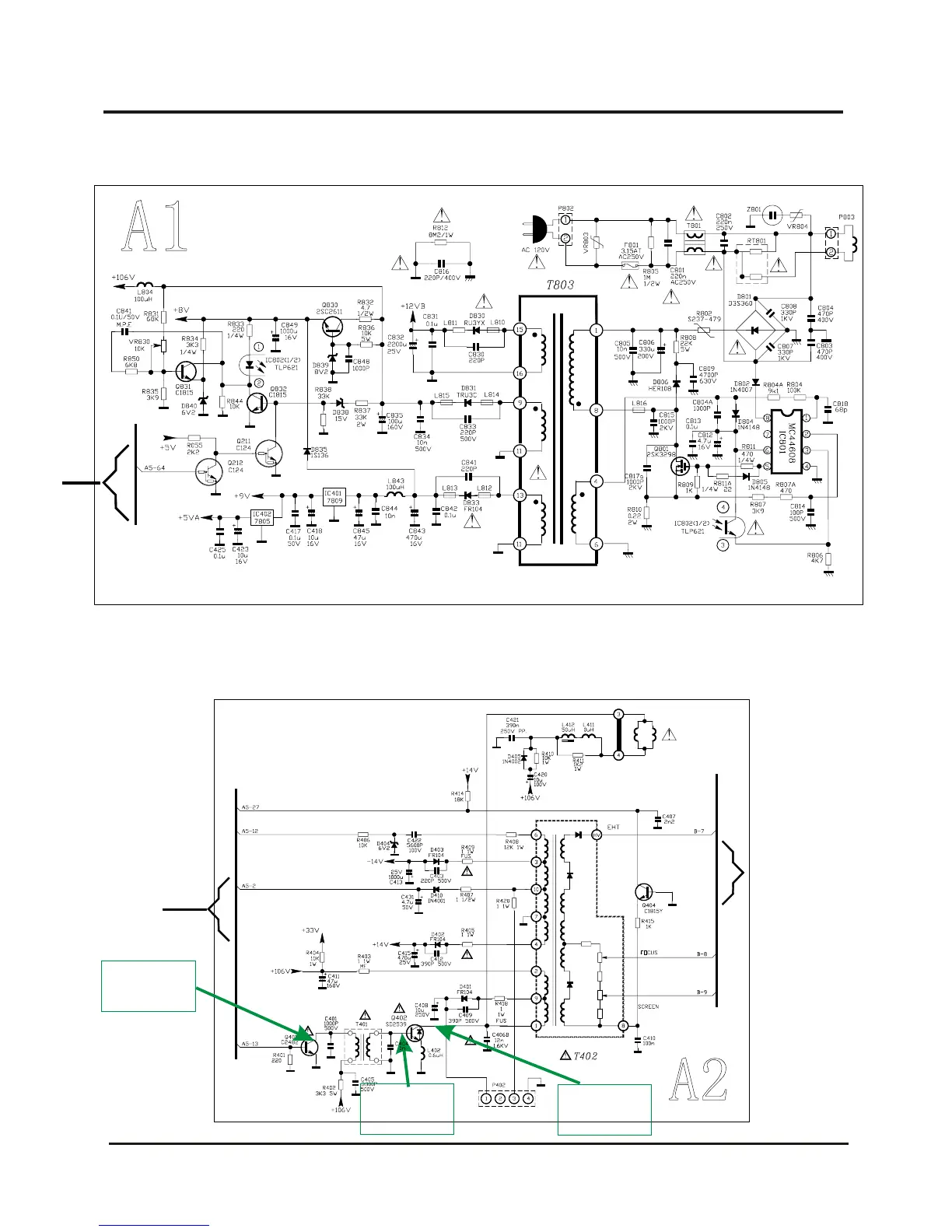

7. Electrical Diagrams
7.1 Power Supplier
7. Electrical Diagrams a
7.2
Line Deflection
WF 1
WF 2
WF 3
