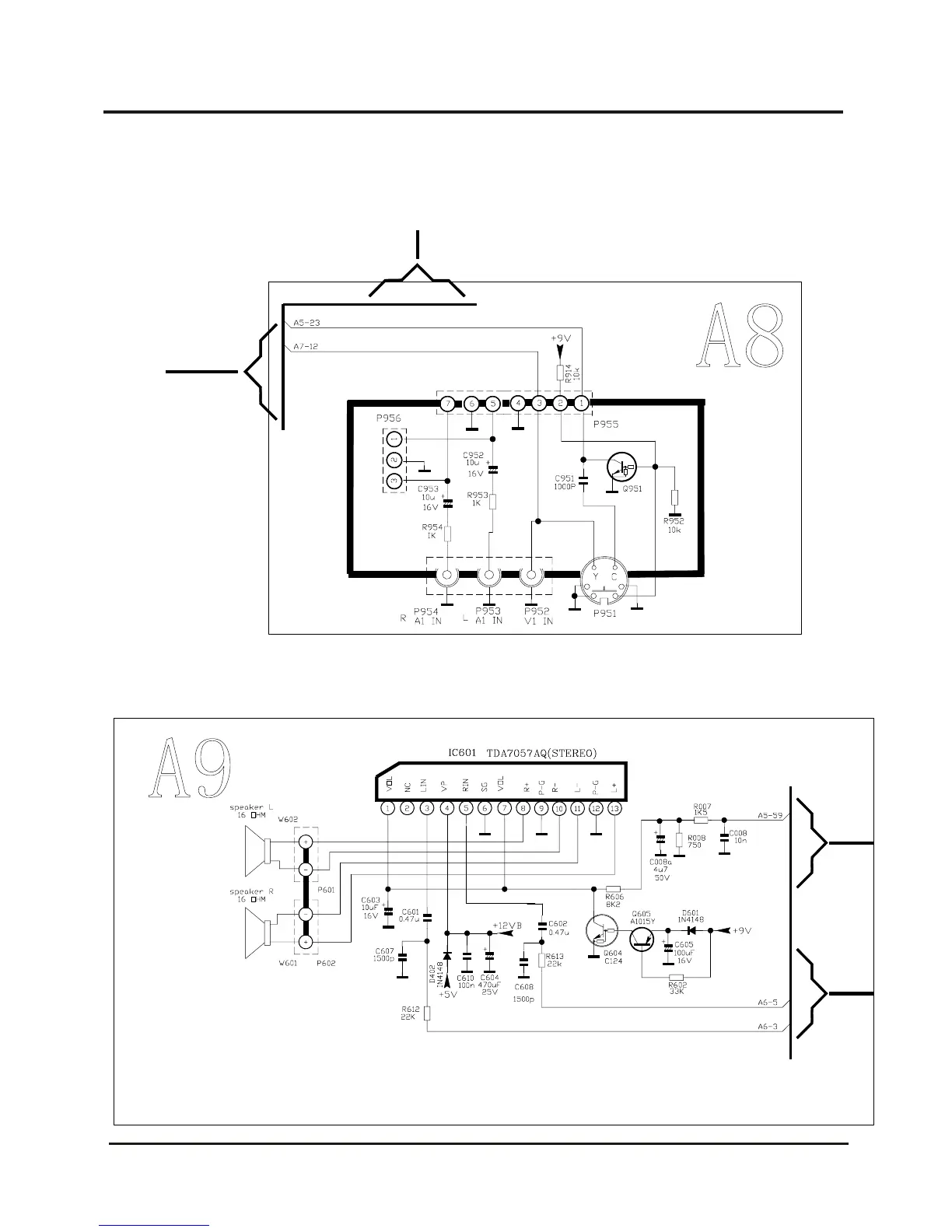

TCL CTR1042 - Side AV (Diagram A8); Audio Amplifier (Diagram A9)

TCL CTR1042
89 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Colour Television Chassis: M123A
48
7. Electrical Diagrams
7.8 Side AV
7. Electrical Diagrams
7.9
Audio Amplifier
