TCL FMA-09CHSD/DVI

No. Part No. Part Name Q’ty Remark
1 42011-000118 Grille 1
2 41207-000022 Top cover 1
3 92011-000676 Condenser 1
4 41203-000043 Outdoor motor supporter 1
5 22001-000042 Outdoor motor 1
6 42004-000071 Propeller fan 1
7 41205-000128 Left grille supporter 2
8 41206-000036 Front plate 2
9 42011-000086 Fan guard 1
10 92014-000353 Compressor 1
11 92008-000209 4-way valve 1
12 92007-000942 4-way valve assembly 1
13 41202-000029 Base 1
14 41205-000053 Right plate 1
15 92008-000152 Two-way valve 2
16 41204-000025 Valve supporter 1
17 92008-000150 Three-way valve 2
18 41201-000005 Electrical box cover 1
19 42001-000110 Cable clamp 2
11304-100061 Terminal 1
11304-100029 Terminal 2
21 31201-000924 Outdoor PCB assembly 1
22 22011-000014 Inductor 1
23 92007-003062
Electronic expand valve assembly
1
24 41208-000161 Partition plate 1
25 10104-100044 Sensor Assembly 1
26 10104-100037 Discharge Temp. sensor 1
27 A1401-000014 Base carton 1
28 A1201-009327 Cabinet carton 1
29 A1202-000028 Base foaming 1
30 41213-000021 Cover foaming 1
TCL Air Conditioner Service Manual

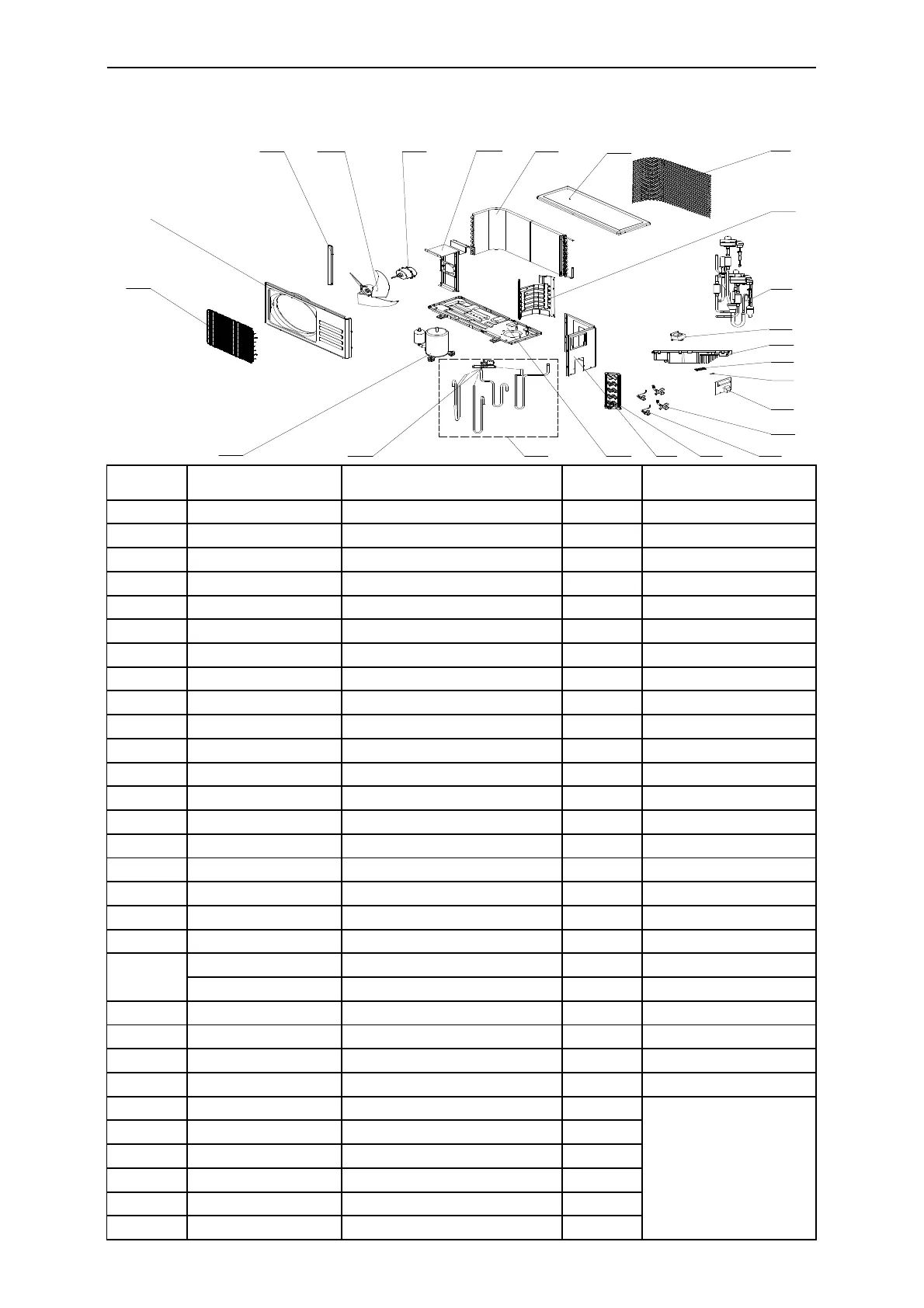

Outdoor Unit - FMA-18I2HD/DVO
20
Not shown in
explosion view
22
24
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
4
3
2
1
24
